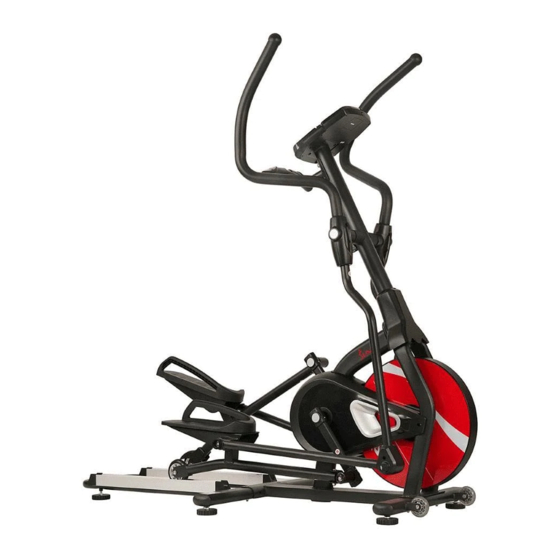

Sunny SF-E3865 User Manual

Stride zone elliptical
Hide thumbs Also See for SF-E3865:
Table of Contents

Advertisement

Quick Links

Download this manual

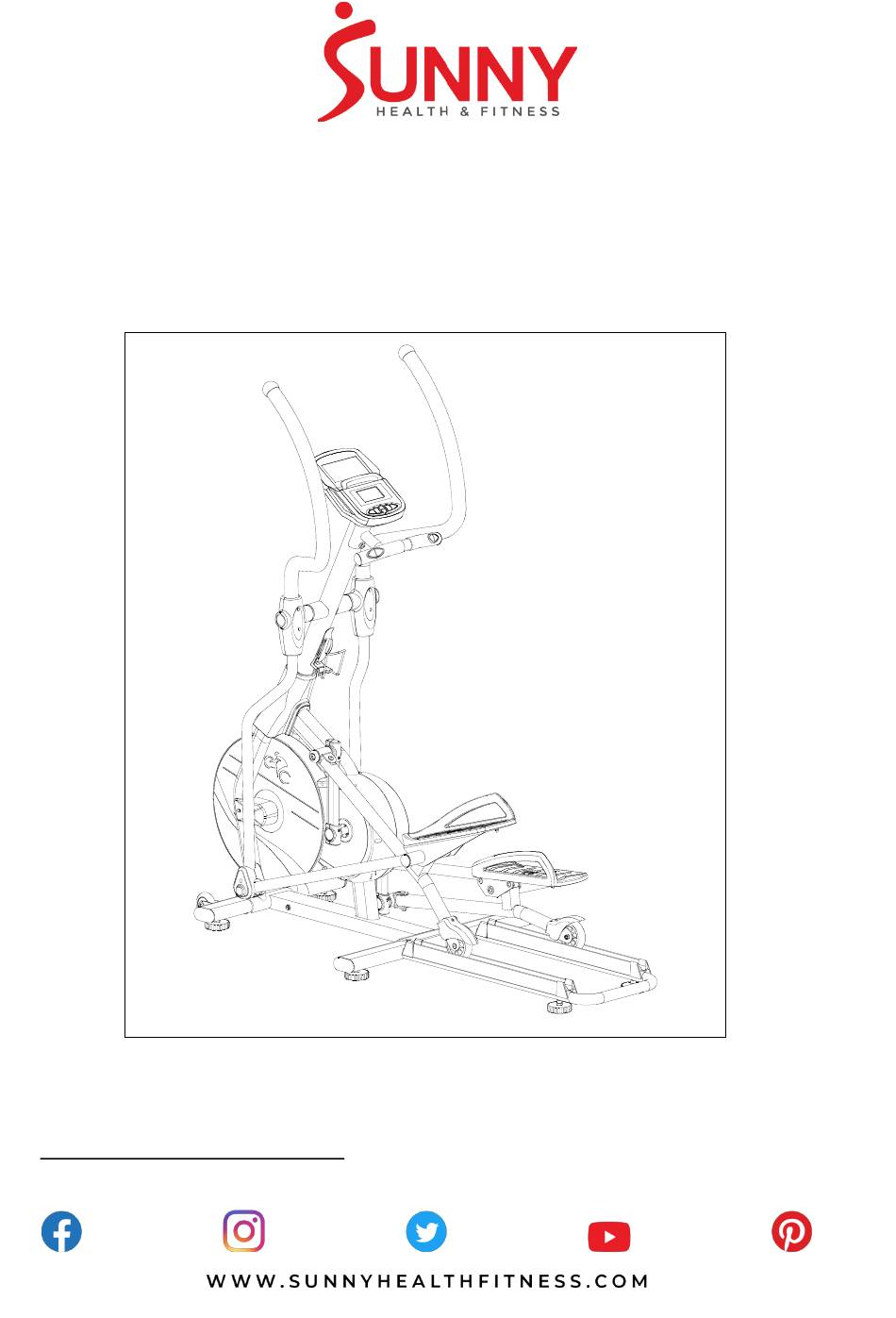

STRIDE ZONE ELLIPTICAL
SF-E3865
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-E3865 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny SF-E3865

Summary of Contents for Sunny SF-E3865

  • Page 1 STRIDE ZONE ELLIPTICAL SF-E3865 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 4: Hardware Package

    HARDWARE PACKAGE #76 M8*55 4PCS #61 4PCS #82 M8*45 4PCS #80 M8*18 6PCS #84 M10*70 2PCS #85 M6*20 4PCS #93 Φ8*Φ21*2.0T 4PCS #90 ST4.5*15 6PCS #94 Φ6*Φ14*1.0T 8PCS #95 Φ8*Φ16*1.5T 4PCS #96 Φ8*Φ25*2.0T 2PCS #97 Φ10*Φ19*1.5T 2PCS #98 Φ19.5*Φ38*2.0T 2PCS #100 Φ19*Φ23*0.2T 2PCS #118 Φ16.2*Φ25*0.5T #111 M10 2PCS...

  • Page 5: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Bottom Cable 700mm Upright Tube Motor TL-005 Fixed T Handlebar Sensor 100mm Left Upper Swing DC Cable 700mm Right Upper Swing Adapter Left Lower Swing Sensor Fixture Right Lower Swing Motor Wire 150mm Left Pedal Tube...
  • Page 6 Description Spec. Qty. Description Spec. Qty. Φ8*Φ20*2.0T Φ8*Φ21*2.0T Plastic Washer Washer Φ60 Φ6*Φ14*1.0T Seal Ring Washer Φ8*Φ16*1.5T Seal Ring Oval 40*80 Washer Φ8*Φ25*2.0T Crank Seal Ring Washer Φ17 Φ10*Φ19*1.5T Wire Plug Washer Φ19.5*Φ38*2.0 Adjustable M10*25 Washer Stand Φ19.5*Φ25*0.5 Φ70 PU Wheel Washer Φ7.9*Φ12.7*23.5 Φ19*Φ23*0.2T...
  • Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669). STEP 1: -#76 M8*55 2PCS -#95 Φ8*Φ16*1.5T 2PCS Note: We recommend having two people to -#C S13 S14 S15 1PC do the assembly.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669). STEP 3: -#103 Φ8 8PCS -#78 M8*15 8PCS Remove 8 Hex Socket Bolts (No. 78), 8 Spring -#102 Φ8*Φ21*2.0T 8PCS...
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669) STEP 5: -#82 M8*45 4PCS -#A S5 1PC -#110 M8 4PCS Attach the Left Upper Swing Bar (No. 4L) to the Left Lower Swing Bar (No.
  • Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669) STEP 7: -#94 Φ6*Φ14*1.0T 8PCS -#85 M6*20 4PCS Note: 4 holes on each of the Left & Right...
  • Page 11 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669) STEP 9: -#100 Φ19*Φ23*0.2T 2PCS -#80 M8*18 2PCS Note: Please lubricate the Pedal Tube Axles -#A S5 2PCS -#96 Φ8*Φ25*2.0T 2PCS...
  • Page 12 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669) STEP 11: -#90 ST4.5*15 2PCS Attach the Lower Swing Bar Covers (No. -#B S10 S14 S17 1PC 43A &...
  • Page 13 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877- 90SUNNY (877-907-8669) STEP 13: -#92 M5*20 2PCS Remove 2 Screws (No. 92) from the -#B S10 S14 S17 1PC Upright Tube (No.

  • Page 14: Adjusting The Balance

    ADJUSTMENTS GUIDE HOW TO MOVE THE ELLIPTICAL The PU Wheels (No. 68) on the Front Stabilizer (No. 10) are movable. Hold the Rear Stabilizer (No. 9) and pull forward to lift the rear of the elliptical off the floor. Now you can move the elliptical.

  • Page 15: Important Electrical Information

    IMPORTANT ELECTRICAL INFORMATION WARNING: This elliptical trainer requires a power source of 1 amp (100-240V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and or user.

  • Page 16: Workout Parameters

    FUNCTIONS: SPEED: Displays current training speed. Maximum speed is 99.9 MPH. RPM: Displays current rotation per minute. TIME: Accumulates the workout time from 00:00 to 99:59. Users can preset the target time they want. DIST: Accumulates the workout distance from 0.00 to 999.9 miles. Users can preset the target distance they want to reach.

  • Page 17: Program Operation

    More About Workout Parameters Increment/ Description Default Setting Field Range Decrement Value 1. When display is set as 0:00, Time will count up. 0:00~99:00 00:00 ±1: Time 2. When time is set as 1:00-99:00, it will count down to 0. 1.
  • Page 18 Pre-set programs (P2~P13) Program profile There are 12 pre-set programs ready for use. All program profiles have 16 levels of resistance. SETTING PARAMETERS FOR PRE- SET PROGRAMS 1. Select one of the Pre-set Programs using the UP or DOWN button, then press ENTER. TIME will flash so the value can be adjusted using the UP or DOWN button.
  • Page 19 Workout in any pre-set program You can adjust the level of resistance by pressing the UP or DOWN button during the workout. Note: If you set up the target time for workout, then the next parameter of Distance cannot be adjusted. Once the workout parameter counts down to zero, it will beep and stop the workout automatically.
  • Page 20 Body Types: There are 9 body types divided according to the FAT % calculated. Body Type FAT % Body Type FAT % Body Type FAT % Type 1 5% - 9% Type 4 20% - 24% Type 7 35% - 39% Type 2 10% - 14% Type 5...
  • Page 21 SETTING PARAMETERS FOR HEART RATE CONTROL 1. Select one of the Heart Rate Control Programs using the UP or DOWN button, then press ENTER. 2. TIME will flash. The value can be adjusted using the UP or DOWN button. 3. Press the ENTER button to save the value and move to the next parameter to be adjusted. Note: If you set up the target time to work out, then the next parameter of Distance cannot be adjusted.

  • Page 22: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CHECK SOLUTION Check if the motor wires are Plug in the motor wires motor doesn’t plugged in or check if the again or change the work. motor is stuck. motor. Check if the cables are Change the cables or There something damaged.
