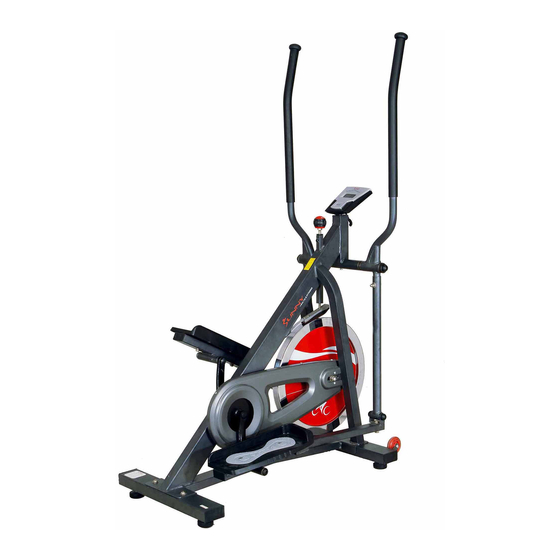

Important Safety Information We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. Please read the information below carefully before using this equipment. 1. It is important to read this entire manual before assembling and using the equipment.
PARTS LIST DESCRIPTION DESCRIPTION 1 Main frame 37 Left pedal 395*160*52 2 Front stabilizer 38 Right pedal 395*160*52 3 Rear stabilizer 39 Bolt M8*45*20*S14 grade A 4 Left handle bar 40 End cap J40*25*15 5 Right handle bar 41 End cap J60*30*15 42 Alloy wrap Φ28*4*φ24*12*Φ16.1 6L/R Left and Right Swing rod 7 Left pedal post...
ASSEMBLY INSTRUCTIONS STEP 1: A. Unscrew the screws (76) with wrench (S6), then remove and discard the shipping rear tube (105) and the shipping front tube (104). B. You can save these parts for future packaging and transportation of the bike if desired.
Page 8
STEP 2: Secure front stabilizer (2) and rear stabilizer (3) to main frame (1) with screws (9) and washers (10).
Page 9
STEP 3: S13-14-15 S8-14-22 27 21 A. Attach swing rod axle (27) into main frame (1), insert wave washer (21) into the swing rod axle (27) on both sides; B. Secure left handle bar (4) and right handle bar (5) to swing rod axle (27) with bolts (18), spring washers (20), washers (19) and D shape washers (103);...
Page 10
STEP 4: S8-14-22 A. Secure swing rod (6L) to left handle bar (4) and Swing rod (6R) to right handle bar (5) with bolts (23), arc washers (26), spring washers (20) and nuts (28); B. Secure right pedal post (8) to crank on the big chain wheel (79) with right pedal bolt (46), wave washer (110) and right nut (44) by screwing clockwise;...
Page 11
STEP 5: A. Secure left pedal (37) to left pedal post (7) with bolts (39), washers (32) and nuts (33); B. Secure right pedal (38) to right pedal post (8) with bolts (39), washers (32) and nuts (33).
Page 12
STEP 6: A. Secure computer holder (102) to main frame (1) with screws (100); B. Secure computer (97) to computer holder (102) with screws (78), then connect the wire of computer (97) with trunk wire (98). Assembly is finished.
MAINTENANCE 22 33 After a period of time, the grease in the joint will become dry and it might cause noise. Please follow instructions on how to lubricate the joint below: Remove end caps (22), bolt (31) and nut (33) as diagram Ⅰ, then remove spacer (30) as diagram Ⅱ, and add some grease on the surface and inside of spacer (30) to decrease the rub, after finishing it, please assembly spacer (30), bolt (31), nut (33) and end caps (22) back.
