- Page 1 2-Port Video Splitter USER MANUAL VS102...
-
Page 2: Fcc / Ce Information
FCC / CE Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Online Registration
VS102 User Manual Online Registration International http://support.aten.com Telephone Support International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 United Kingdom 44-8448-158923 Technical Support For international online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com... -
Page 4: Package Contents

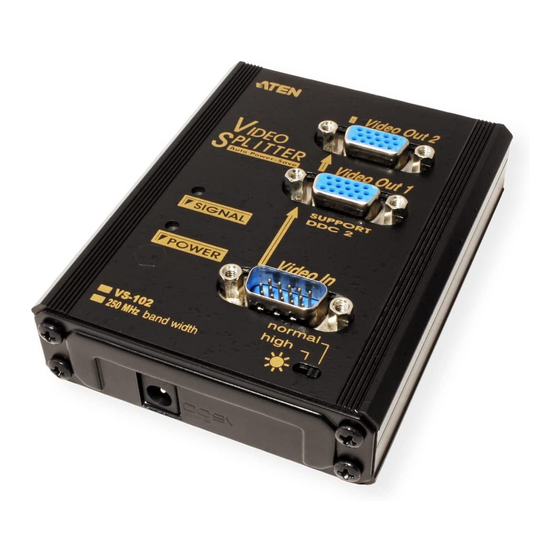

Copyright © 2014 ATEN International Co., Ltd. Manual Part No. PAPE-1280-201G Printing Date: 2014-06-17 ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners. - 4 -... - Page 5 65m with a built in video gain knob for display adjustment at different distances. The VS102 splitter provides the best way to split a single VGA video source into two VGA output signals, which can be transmitted to displays over long distance.
- Page 6 Features Splits a VGA input signal into 2 VGA outputs Cascadable up to 3-levels to provide 8 output signals Supports up to 250 MHz bandwidth Long distance transmission - up to 65 m* Supports High video resolution - up to 1920 x 1440 DDC, DDC2, DDC2B Compatible (Port 1 only) Supports VGA, XGA, SVGA, UXGA and multisync monitors OS Support: Windows 2000, Windows XP, Linux, Mac and...
-
Page 7: System Requirements
System Requirements Source Device VGA video card with HDB-15 connector Display Device(s) A VGA, SVGA, UXGA, WUXGA or multisync monitor or multimedia projector with an HDB-15 connector Cables 1 VGA cable for the source device 1 VGA cable for each display device you will be connecting - 7 -... - Page 8 Components VS102 Front View Component Function Power LED Lights green to indicate the device has power. Signal LED Lights orange to indicate DC Jack The DC 9V 300mA (min.) power adapter plugs in here. Brightness This slide switch can be set to high or low Control to manage the displays brightness.
-
Page 9: Installation
2. Make sure that all devices you will be installing are properly grounded. Installation of the VS102 is simply a matter of plugging in the appropriate cables. To install the splitter, refer to the installation diagram on page 10 as you perform the following steps: 1. - Page 10 IInstallation Diagram - 10 -...
-
Page 11: Powering Off And Restarting
Powering Off and Restarting If you power off the VS102, follows these steps before powering it on again: 1. Power off the attached devices. 2. Unplug the power adapter cable from the VS102. 3. Wait 10 seconds, and then plug the power adapter cable back 4. -
Page 12: Specifications
Specifications Function VS102 Display Connections Connectors Device Input 1 x HDB-15 Male (Blue) Display Output 2 x HDB-15 Female (Blue) Power 1 x DC Jack LEDs Power 1 (Green) Signal 1 (Orange) Switch Video Gain 1 x Knob Video Bandwidth... -
Page 13: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and specially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
