RAB Lighting TRIBORO TBLED Installation Instructions Manual

TRIBORO TBLED 32W 48W 64W 95W
®
INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com

IMPORTANT

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.

POLE MOUNTING

1. Open the Door by pressing the Tool-Less Entry
Latches.
The Housing fits on 1in to 2-3/8in Pole Tenon. Based
2.
on the tenon arm diameter, carefully knockout the
appropriate Pole Cover.
Slide the Housing through Pole Bracket on the Pole
3.
Tenon. Pole Mounting Clamp along with hardware
provided.
The Housing can be mounted at -5 degree, -2.5 degree,
4.
0 degree, 2.5 degree and 5 degree shown in circle in
Fig. 1 and Fig. 2. Use Leveling Bubble to level Housing.
Note: Housing is mounted at 0 degree in Fig. 2.
Secure Housing on pole using Pole Mounting Clamp
5.
and tightening Bolts (2) provided.
6. Make necessary connections according to NEC and local
codes to Terminal Block in Housing.
7. Close the Door.
Pending: Pat. pending
TRIBORO 32W/ 48W/ 64W with PCT TRIBORO 95W with PCT
Terminal Block
Leveling Pole Mounting
Bubble
Clamp
Pole Cover
Pole Tenon
-2.5°
-5°
Tool-Less Entry Latch
Door
Housing
Bolts (2)

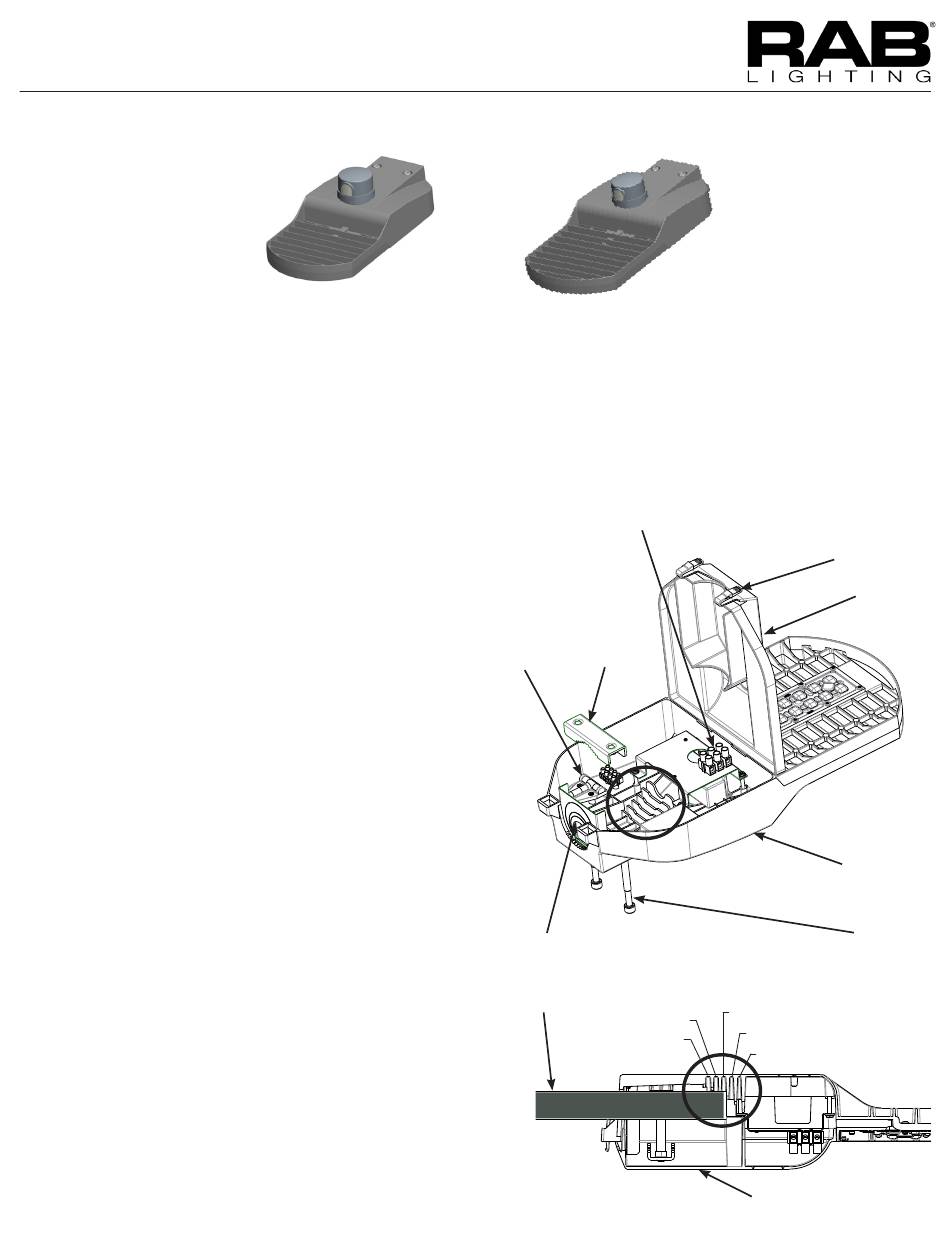

Fig.1
0°
2.5°
5°
Housing
Fig.2
