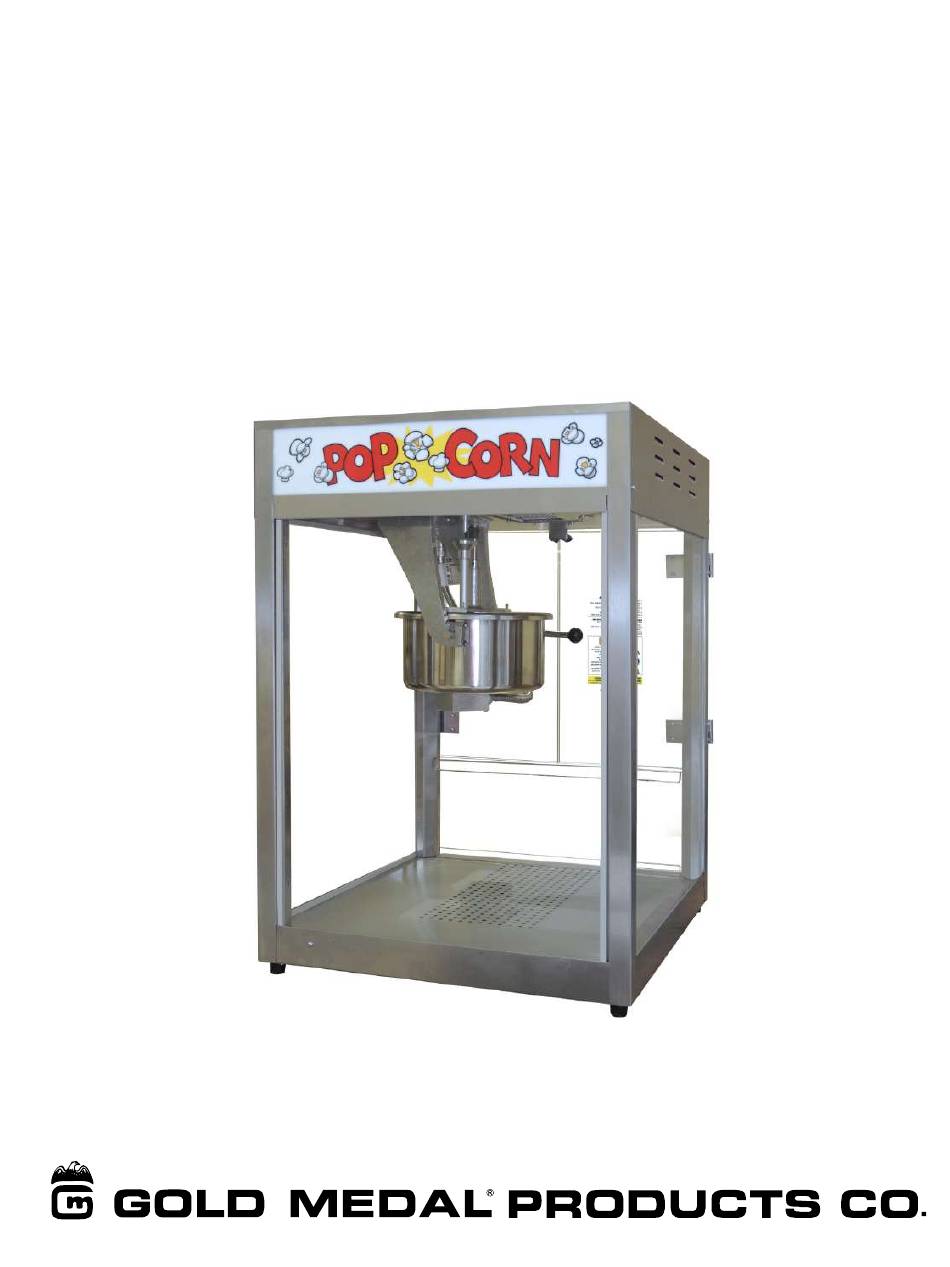

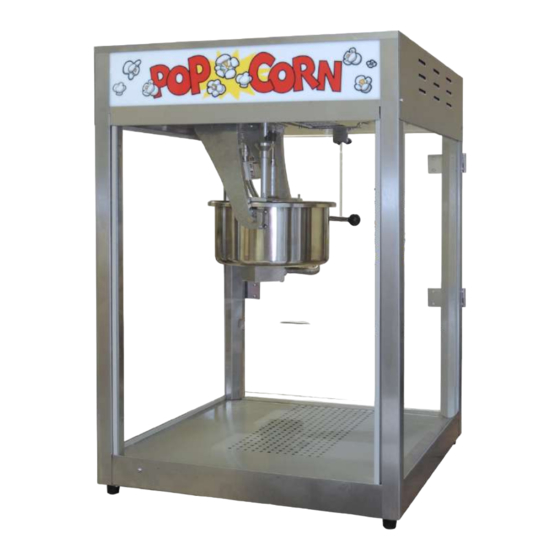

- Page 1 Part No. 69915EX EXPORT MACHO POP Instruction Manual Models 2553EX & 2554EX 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 Install unit on a level surface. Locate machine in a protected environment. Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Installation Instructions
Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. -
Page 5: Before You Plug In Machine
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. - Page 6 MACHO POP OPERATING INSTRUCTIONS Controls and Their Functions Oil System Master Switch (2553EX Only): Sends power to the oil pump, either the Bucket Pump or Bag-in-a-Box models. The warmer/blower on the oil pump is activated. The warmer/blower on the oil pump will keep coconut popping oil liquid if the doors on the base are kept closed.
- Page 7 4. When corn has finished popping, the Load/Dump Light and Audible Signal will turn ON, then gently dump the popcorn. Note: The signal “To Dump” was factory set based on Gold Medal popcorn and oil. If, after 3 consecutive batches, the signal occurs before or after popping has stopped, then the signal timing can be adjusted.
- Page 8 6. When corn has finished popping, the Load/Dump Light and Audible Signal will turn ON, then gently dump the popcorn. Note: The signal “To Dump” was factory set based on Gold Medal popcorn and oil. If, after 3 consecutive batches, the signal occurs before or after popping has stopped, the signal timing can be adjusted.
-
Page 9: Care And Cleaning
Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage the kettle. 3. Mix 2 tablespoons (29.6 ml) of Gold Medal’s Heat’n Kleen (Item No. 2095) in 1 gallon (3.8 L) of water. - Page 10 (cloth may be SLIGHTLY dampened with soap and water, then wipe again with clean water to remove any remaining cleaner). 5. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage plastic doors/panels. Only use a non-ammonia cleaner, such as Gold Medal Watchdog Glass Cleaner (Item No.
-
Page 11: Filter Cleaning Instructions
MACHO POP Filter Cleaning Instructions The popcorn machine is equipped with an efficient and durable filtration system. The filter should be cleaned every 1-2 weeks to maintain maximum efficiency. Steps to Clean Filter 1. Turn unit OFF and allow it to cool before removing filter. -
Page 12: Maintenance Instructions
MACHO POP THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. Make sure all machine switches are in the OFF position before plugging the equipment into the receptacle. -
Page 13: Electronic Temperature Control (Export)
MACHO POP Electronic Temperature Control (Export) The temperature control is factory set to stop the power to the kettle when the thermocouple reaches Operation set point. This is also the ideal point to dump the popped corn out of the kettle. On the first start-up, this is the ideal time to load the corn and oil. -
Page 14: Probe Led Indicator Light - Thermocouple Error Condition
Check the terminal blocks for a loose connection, and check the kettle wiring for a loose or broken thermocouple. For more in-depth Temperature Control Board troubleshooting, for Qualified Service Personnel ONLY, please reference Gold Medal Service Bulletin 0074. MODELS: 2553EX & 2554EX... -
Page 15: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... - Page 16 MACHO POP 16 oz. Kettle Assembly (55199XE) – Agitator Assembly View 55199 Overall Kettle 55199E Ag. Assy. 55199E Exp. Views Complete Agitator Assembly (Includes Lids) *See Parts See Kettle Bottom List note. Assy. section for parts breakdown 13, 14 (includes Handle Assembly and Kettle Lead).
- Page 17 MACHO POP 16 oz. Kettle Assembly (55166XE) – Agitator Assembly View 55166 Overall Kettle 55166E Ag. Assy. 55199E Exp. Views Complete Agitator Assembly (Includes Lids) *See Parts See Kettle Bottom List note. Assy. section for parts breakdown 13, 14 (includes Handle Assembly and Kettle Lead).
- Page 18 MACHO POP 16 oz. Kettle Assembly (55199XE, 55166XE) – Kettle Bottom 55199E Kettle Element 55199E Kettle Bottom Assy. 55199E exp. views Element View 20, 21 *Dump Handle Assembly (includes Knob) Kettle Bottom Assembly View MODELS: 2553EX & 2554EX...
- Page 19 MACHO POP 16 oz. Kettle Assembly (55199XE, 55166XE) – Kettle Bottom Parts List Part Number Item Part Description 55199XE, 16OZ KETTLE BOTTOM ASSY (Complete Assy.) 55201EX 55166XE HEAT TRANSFER PLATE (beneath heat element) 67890 KETTLE GASKET 41598 KETTLE WELDMENT 67892 ¼...
-
Page 20: Cabinet Parts
Red Push Button is p/n 41031 Export Power Cord p/n 42369 (not shown) CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. See Door... - Page 21 MACHO POP Door Hardware Kits – Individual Component Breakdown Complete Door Hardware Kit (P/N 61380) (contains all parts shown above) Part No. Item Part Description KNOB LID LIFT 47120 61380 TEE BOLT 75267 8-32 X 5/16 SLOTTED HEX 49594 8-32 X 3/8 PH PAN W/SEMS 42227 ACORN NUT #8-32 47702...
-
Page 22: Cabinet Interior
MACHO POP Cabinet Interior LED BULB POWER SUPPLY ASSEMBLY 24VDC 20W p/n 55590 p/n 55394 Box Filter p/n 69850 Spring Clip (not shown) PN 62666 Gear Block p/n 67194 SPUR GEAR KIT p/n 47059K Hanger Arm (Includes 2 gears with Front set screws. - Page 23 MACHO POP Dome Sign and Lighting 5, 6 Item Part Description Part No. SIGN STIFFENING CHANNEL (2 required) 77929 POPCORN SIGN 111873 LED MOUNTING PLATE 55355A LED STRIP COOL WHITE 55379 6-32 X 1/2 PHIL PAN M/S 42237 6-32 HEX NUT ZINC PLATED 38005 MODELS: 2553EX &...
-
Page 24: Electrical Schematic
MACHO POP ELECTRICAL SCHEMATIC (2553EX, 2554EX) MODELS: 2553EX & 2554EX... - Page 25 MACHO POP ELECTRICAL SCHEMATIC (2553BCX, 2554BCX) MODELS: 2553EX & 2554EX...
-
Page 26: Warranty
