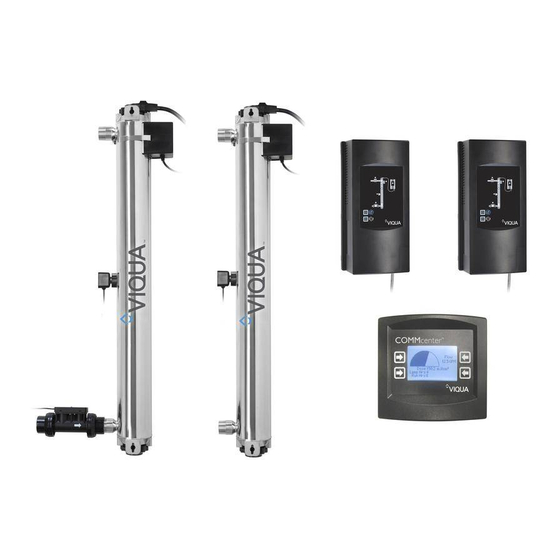

Adenovirus PRO24-186 System
520375-R_RevA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Adenovirus PRO24-186 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viqua Adenovirus PRO24-186

Summary of Contents for Viqua Adenovirus PRO24-186

  • Page 1 Adenovirus PRO24-186 System 520375-R_RevA...

  • Page 2: Table Of Contents

    Table of Contents Preface ................................ii Contact Information ..........................ii About VIQUA – a Trojan Technologies Business ................... ii Scope ..............................ii Project & System Description ......................1 Project Description ........................1 System Description ........................1 Product Drawings ..........................2 Install Diagram ..........................

  • Page 3: Preface

    VIQUA has over 600,000 systems installed worldwide, and VIQUA systems can be found in almost every country in the world. Applications of VIQUA systems, beyond the basic residential and light commercial uses, include rain water harvesting, ground water treatment, disaster relief, humanitarian aid, medical devices, and bottled-water refill stations.

  • Page 4: Project & System Description

    & S ROJECT YSTEM ESCRIPTION Project Description Project Name Guidelines Maximum flow rate 24 GPM (91 l/min) at 95% UVT Design dose 186 mJ/cm Operating pressure 15 psi (103 kPa) - 125 psi (862 kPa) Ambient air temp. 0°C (32°F) - 40°C (104°F) Ambient water temp.

  • Page 5: Product Drawings

    RODUCT RAWINGS Install Diagram The following diagram is the recommended installation layout; however, other installation set-ups are possible, including a mirrored layout to the one featured here. Chambers must be installed vertically and right side up, according to the indicators on the chambers.

  • Page 6: Mounting Diagram

    Mounting Diagram 56” (max.) 4 ⅛” 47” (max.) 42” (max.) 12” (min.) 37.5” 6” (min.) Flow Meter Installation Options...

  • Page 7: Exploded View

    Exploded View Refer to .pdf and .step files for engineering drawings and part numbers.

  • Page 8: System Overview

    YSTEM VERVIEW 4-Log Virus Reduction The PRO24-186 system provides over 186 mJ/cm UV dose for 4-log reduction of viruses, including the Adenovirus. The system consists of two chambers in series utilizing amalgam UV lamps, CoolTouch , and LightWise technology. The Adenovirus system is fully third-party validated to USEPA UV Disinfection Guidance Manual (UVDGM) protocol for 4-log Adenovirus reduction.

  • Page 9: Uv Dose Monitoring

    UV Dose Monitoring 3.3.1 Dose Curve Dose values such as those in the following graph are calculated based on third-party verified bioassay testing completed in compliance with the 2006 UVDGM. 95%UVT 85%UVT 75%UVT 65%UVT 186mJ/cm^2 Flow rate (gpm) There is no flow restrictor on the Adenovirus system. Therefore, the system can physically exceed 24 GPM;...

  • Page 10: Dose Alarm Selection

    3.3.2 Dose Alarm Selection VIQUA’s Adenovirus system comes equipped with real-time UV dose monitoring which utilizes data from both the UV sensor (3.3.3) and the flow meter (3.3.5). The system will go into alarm at different points depending on input from these components. There are two dose settings to choose from: variable or stepped dose alarm.

  • Page 11: Uv Sensor

    In this way, the UV sensor detects when the water flowing furthest away from the lamp is no longer being disinfected properly due to any factor. VIQUA’s UV sensors reliably detect low UV output and identify the need for maintenance via a 4-20 mA output signal to the controller.

  • Page 12: Sensor Response Curve

    3.3.4 Sensor Response Curve The sensor’s photodiode detects the emitted germicidal 253.7 nm wavelength. 1E+0 0.16 Logarithmic 1E-1 0.14 Linear 1E-2 0.12 1E-3 1E-4 0.08 1E-5 0.06 1E-6 0.04 1E-7 0.02 1E-8 Wavelength, λ (nm) 3.3.5 Flow Meter The Adenovirus system uses a single flow meter located on the primary unit to measure the flow rate of water passing through the UV systems.

  • Page 13: Controller Interface

    Set points depend on the Dose Alarm Selection (sec. 3.3.2). The controller’s alarm conditions act independently of the COMMcenter (sec. 3.3.7); though the Adenovirus PRO24-186 should always be operated with the COMMcenter this means the UV disinfection dose is monitored even if the COMMcenter should fail.

  • Page 14: Uv Lamp

    The lamp produces germicidal ultraviolet light (UV-C) at a wavelength of 253.7 nm. The absence of a peak at 185 nm is significant because it means no harmful ozone will be produced. VIQUA’s amalgam lamps have a mercury content of less than 15 mg (IMERC registered).

  • Page 15: Degradation Chart

    5000 10000 15000 20000 Burning Hours 3.4.3 Temperature Profile VIQUA’s lamps use a mercury amalgam mix to control the vapour pressure and produce a more stable output than conventional standard output lamps. Water Temperature (°C)

  • Page 16: Quartz Sleeve

    Product Features and Benefits 3.5.1 LightWise™ Technology VIQUA’s new LightWise™ technology allows the system’s electronic controller to automatically reduce lamp power during periods of no water flow. In order to maintain dose levels above alarm setpoint values, the controller will dim to 62% power output.

  • Page 17: Signals And Remote Capabilities

    Signals and Remote Capabilities 3.6.1 Dry Contacts The dry contact can be used to signal a remote device in event of the following major alarms: • Lamp Fault • Ballast (Controller) Fault • UV Sensor Fault • Low UV Fault Connection Logic Chart UV System in UV System in Major...

  • Page 18: Warranty

    VIQUA warranties the system components to be free from defects in material and workmanship for the time specified in the table below. During this time, VIQUA will repair or replace, at its option, any defective parts covered by the warranty.

  • Page 19: Viqua Declaration

    VIQUA D ECLARATION VIQUA is a sustainable business that designs and builds industry-leading UV systems. Our products are used worldwide in applications that help improve quality of life. VIQUA utilizes quality materials and processes to ensure each product meets safety, health and environmental protection requirements.
