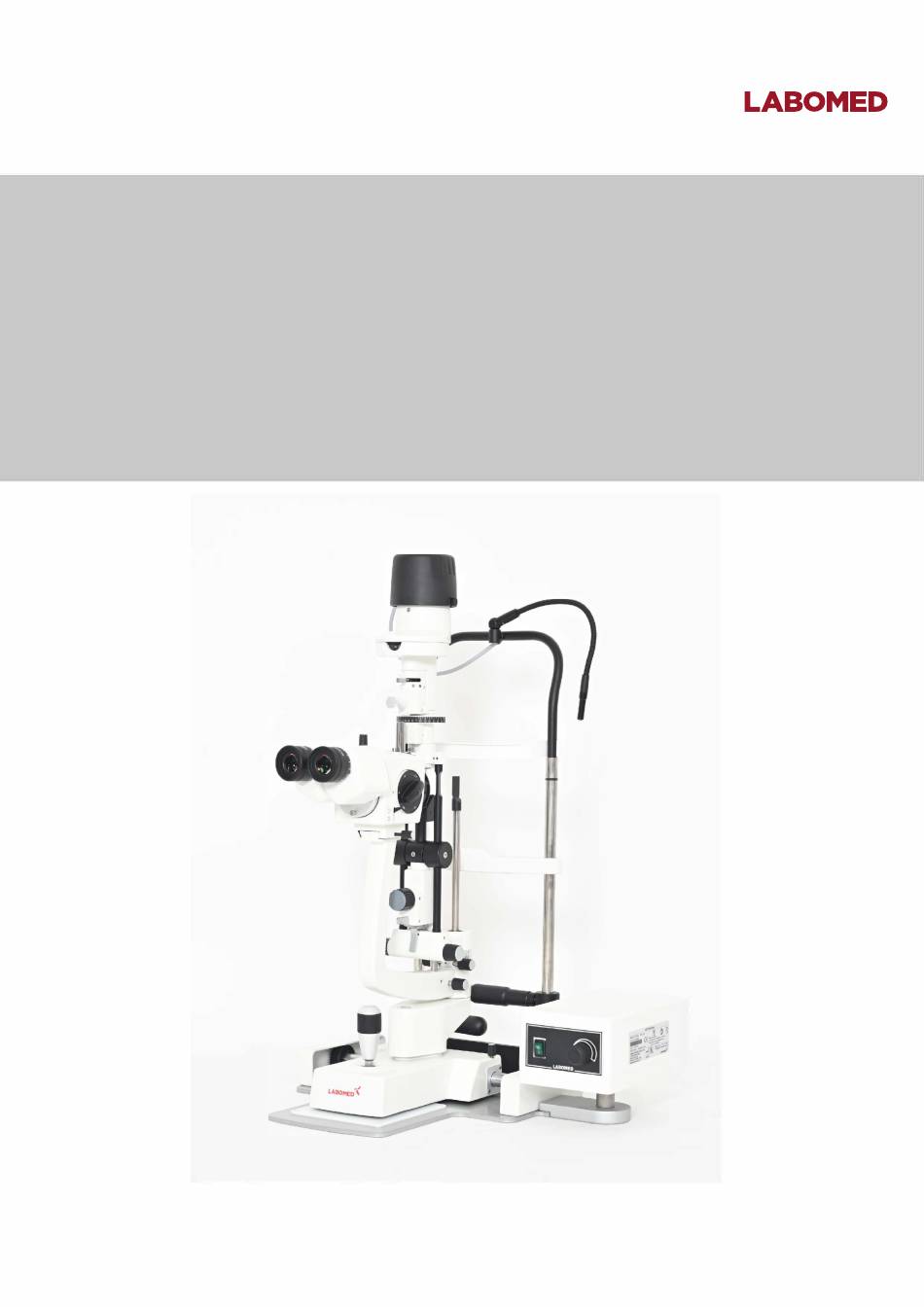

- Page 1 eVO 450 Slit Lamp User Manual Part No.: 8127300-795 Issue 1.5 Printed on Sep,2024...
- Page 2 Labotech and Labo America Inc. reserves the right to make change in the product described in this manual without notice and without incorporating those changes in any products already sold. ISO 9001/13485 Certified - LABOMED products are designed and manufactured under quality management system Conforming to ISO 9001/13485 requirements.
-
Page 3: Table Of Contents
eVO 450 TABLE OF CONTENTS Warnings and Cautions Symbol Information Introduction Indications for Use Contraindications Features & Functions Parts Identification eVO 450 Package Contents Accessories Setup Unpacking & Installation Application of Input Power Disconnection of Input Power Instructions for Use Operation Adjusting Slit Length Filters... -
Page 4: Warnings And Cautions
WARNING: THIS INSTRUMENT SHOULD BE USED IN STRICT ACCORDANCE WITH THE INSTRUCTIONS OUTLINES IN THIS USER'S GUIDE. THE SAFETY OF THE OPERATOR AND THE PERFORMANCE OF THE INSTRUMENT CANNOT BE GUARANTEED IF USED IN A MANNER NOT SPECIFIED BY LABOMED TECHNOLOGIES. - Page 5 EQUIPMENT. CAUTION: THIS INSTRUMENT IS NOT INTENDED TO BE CONNECTED TO EQUIPMENT OUTSIDE THE CONTROL OF LABOMED OR MUST BE TESTED TO AN APPLICABLE IEC OR ISO STANDARDS. CAUTION: CHIN REST PAPER-FOR SINGLE USE ONLY. REPLACE WITH EACH PATIENT. ---------------------------------5 Issue 1.5...
-
Page 6: Explanation Of Symbols
Type B Applied Part Alternating Current Power Protective Earth Connection ON/OFF Manufacturer LABOMED Waste of Electrical and Electronic Equipment ( € Compliance to medical Device Regulation EU M DR 2017 /7 45 Accompanying Document must be consulted. Authorized Representative in European Community. -
Page 7: Introduction
INDICATIONS FOR USE The eVO 450 Slit Lamp is an AC-powered slit lamp biomicroscope that is intended for use in examining the anterior segment, from the corneal epithelium to the posterior capsule. It is used to aid in the diagno... -
Page 8: Features & Functions
450 FEATURES AND FUNCTIONS eVO 450 PACKAGE CONTENTS PART I DENTI Fl CATION 1. eVO 450 Slit Lamp HL (8127300) 1. On/Off Switch 2. eVO 450 Slit Lamp LED (8127303) 2. Illumination level Control 3. User's Guide (8127300-795) 3. Joystick tracking plate 4. -
Page 9: Setup
eVO 450 SETUP UNPACKING AND INSTALLATION 1. Open the outside shipping box and remove the three (3) inner boxes. 2. Remove the user's guide and read it. 3. Open the box with the Table Top and Electronics in it. Refer to Figure-1 4. - Page 10 eVO450 SETUP (continued) ---------- --------------------------------- UNPACKING AND INSTALLATION (continued) 8. Attach the Fixation Light Wire from the Chin Rest Assembly into the connector on the back of the Power Supply Assembly. Refer to Figure-5. 9. Open the box with the Microscope Assembly. Remove the Microscope Assembly, Slit lamp Assembly, and Accessories.
-
Page 11: Application Of Input Power
eVO450 SETUP (continued) UNPACKING AND INSTALLATION (continued) 14. Install the Microscope Assembly onto the top of the Arm by sliding it into position, making sure it is up against the stop. Then, tighten the Lock MicroscopJ Knob located on the right side of the Microscope Assembly Assembly. -
Page 12: Instructions For Use
eVO450 SETUP (continued) ---------- ------------------------------- OPERATION 1. Turn on the power using the On/Off switch located on the front of the Power Supply Assembly. Brightness can be adjusted by rotating the illumination level knob. NOTE: The maximum position is for intermittent use only. Continuous use will shorten the lamp/ LED life. -
Page 13: Adjusting Slit Length
eVO 450 INSTRUCTIONS FOR USE OPERATION (continued) 11. The slit width can be adjusted by rotating the Slit Width Knobs. Refer to Figure 12. The angle between the illumination system and the microscope can be varied between ° to either the left or right. Refer to Figure °... -
Page 14: Filters
eVO 450 INSTRUCTIONS FOR USE (continued) -----�---------------- OPERATION (continued) FILTERS Continuous Slit Length Length Indicator Sc le There are five filters that can be used by indexing the Filters Lever to the co-ordinating Filters Dot. The Filter Dots are color coded. Refer to Figure 19. The color coded filters are as follows: Filter Blue dot = Cobalt Blue... -
Page 15: Illumination Inclination
eVO 450 INSTRUCTIONS FOR USE (continued) ---------- OPERATION (continued) ILLUMINATION INCLINATION The Illumination Assembly can be inclined in the . Tilt the Slit horizontal plane in 5 ° steps for a total of 20 ° Centering Illumination Assembly by depressing the inclination Knob Latch Release and pulling the base of the Illumination Assembly toward the operator. -
Page 16: Cleaning & Maintenance
eVO450 CLEANING & MAINTENANCE WARNING: RISK OF ELECTRIC SHOCK. ALWAYS DISCONNECT THE POWER CORD FROM THE WALL AND THE INSTRUMENT BEFORE PERFORMING ANY OF THE FOLLOWING CARE AND MAINTENANCE PROCEDURES. CLEANING EXTERNAL CLEANING Clean the external surfaces of this instrument using a clean, soft cloth moistened with a mild detergent solution of liquid dish soap (filtered below 5 microns). -
Page 17: Changing The Halogen Bulb
eVO 450 CHANGING THE HALOGEN BULB WARNING: NEVER REMOVE A BULB THAT HAS RECENTLY BEEN IN USE AS IT WILL BE VERY HOT. WAIT UNTIL IT HAS COOLED AND USE GLOVES OR A THICK CLOTH WHEN HANDLING ANY HALOGEN BULB. •... -
Page 18: Changing The Led
eVO450 Screws CHANGING THE LED (For LED illumination only) WARNING: NEVER REMOVE A LED THAT HAS RECENT LY BEEN IN USE AS IT MAY BE VERY HOT. WAIT UNTIL IT IS COOLED. WARNING: NEVER TOUCH A LED WITH BARE HANDS AS FINGERPRINTS WILL SHORTEN THE LED LIFE. -
Page 19: Fuse Replacement
eVO 450 FUSE REPLACEMENT Replace the fuses in the Power Input Module with the fuses indicated in the Specifications section of this manual. 1. Remove input power to the instrument. 2. Press down on the top tab in the middle of the Power Input Module to release the Fuse Holder, and gently pull out the Fuse Holder by gripping the two small tabs. -
Page 20: Troubleshooting
Bulb not installed properly. with bulb housing. The following is a checklist of items that need to be assessed in order to determine if the eVO 450 Slit Lamp requires servicing. • Check the outside of the Slit Lamp for any damage or missing components. -
Page 21: System Configuration
eVO450 SYSTEM CONFIGURATION APPLANATION TONOMETER R-TVPE r " · � - � TONOMETER MOUNT 8122595-812 SONV NDICAM � � wT• � SONVHA:DICA M ADAPTER � � • 6134120 •• ,. ® � DSLR ADAPTER �'b- � CCD CAMERA � I-PHONE ADAPTER 6134172 CCD ADAPTER 6134110... - Page 22 eVO450 SPECI Fl CATIONS Catalog Number 8127300-795 Physical Dimensions Size: Weight, unpacked: 39.35 lbs. (17.85 Kg) Height: 26.8 in. (68.0 cm) Weight, packed: 52 lbs (23.64 Kg) Width: 17.3 in. (44.0 cm) Depth: 15.3 in. (38.8 cm) Electrical voltage: 100-240 vAC Power Input: Max 50-75VA Frequency: 50/60 Hz Fuses: T 2.5 A H 250v, 5x20mm...
-
Page 23: Specifications
eVO 450 SPECIFICATIONS (continued) MOVEMENT RANGES Longitudinal (1 n/Out) 100mm Lateral (Left/Right) 107mm vertical (Up/Down) 30mm Chin rest Range 80mm Table Dimensions 18.3" x 12.6" (465 mm x 316 mm) DISPOSAL This product does not generate any environmentally hazardous residues. At the end of its product life, follow your local laws and ordinances regarding the proper disposal of this equipment. -
Page 24: Guidance Tables
eVO 450 GUIDANCE TABLES Table 201- Guidance and Manufacturer's Declaration Electromagnetic Emissions All Equipment and Systems Guidance and Manufacturer's Declaration - Electromagnetic Emissions The eVO 450 is intended for use in the electromagnetic environment specified below. The customer or user of the eVO 450 should ensure that it is used in such an environment. Electromagnetic Environment Emissions Test Compliance... -
Page 25: Electromagnetic Immunity
eVO450 GUIDANCE TABLES (continued) Table 202 - Guidance and Manufacturer's Declaration Electromagnetic Immunity All Equipment and Systems Guidance and Manufacturer's Declaration - Electromagnetic Immunity The eVO 450 is intended for use in the electromagnetic environment specified below. The customer or user of the eVO 450 should ensure that it is used in such an environment. Immunity IEC60601 Compliance... - Page 26 eVO 450 GUIDANCE TABLES (continued) T able 204 - Guidance and Manufacturer's Declaration Electromagnetic Immunity Equipment and Systems that are NOT Life-supporting Guidance and Manufacturer's Declaration - Electromagnetic Immunity The eVO 450 is intended for use in the electromagnetic environment specified below. The customer or user of the eVO 450 should ensure that it is used in such an environment.
-
Page 27: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
eVO450 GUIDANCE TABLES (continued) -------- ------------------------ Table 206 - Recommended Separation Distances between Portable and Mobile RF Communications Equipment and the eVO 450 for ME Equipment and ME Systems that are NOT Life-supporting. Guidance and Manufacturer's Declaration - Electromagnetic I mm unity Recommended Separation Distances between Portable and Mobile RF Communications Equipment and the eVO 450 The eVO 450 is intended for use in the electromagnetic environment in which radiated RF... -
Page 28: Warranty
Lamps, bulbs, charts, cards and other expendable items are not covered by this warranty. All claims under this warranty must be in writing and directed to the LABOMED factory, or authorized instrument dealer making the original sale ands must be accompanied by a copy of the purchaser's invoice. - Page 29 Iphone Adapter Replaced With Universal adaptor Electrical Specifications Change Regu l atory DCR/11/2024 Inf o rm a tion Aug, 2024 Symbols updated per EU MDR DCR/12/2024 Sep, 2024 2017/745 & ISO 15223 Issue 1.5 Printed on Sep,2024...
- Page 30 Labo America Inc. 920 Auburn Court Fremont, CA 94538 U.S.A. Phone: 510-445-1257 Fax: 510-991-9862 Email: sales@laboamerica.com www.laboamerica.com Labomed Europe b.v Essebaan 50 2908 LK Capelle aan den IJssel The Netherlands Tel: +31 (0)10 4584222 Fax: +31 (0)10 4508251 E-mail: info@labomedeurope.com www.labomedeurope.com A16372...
