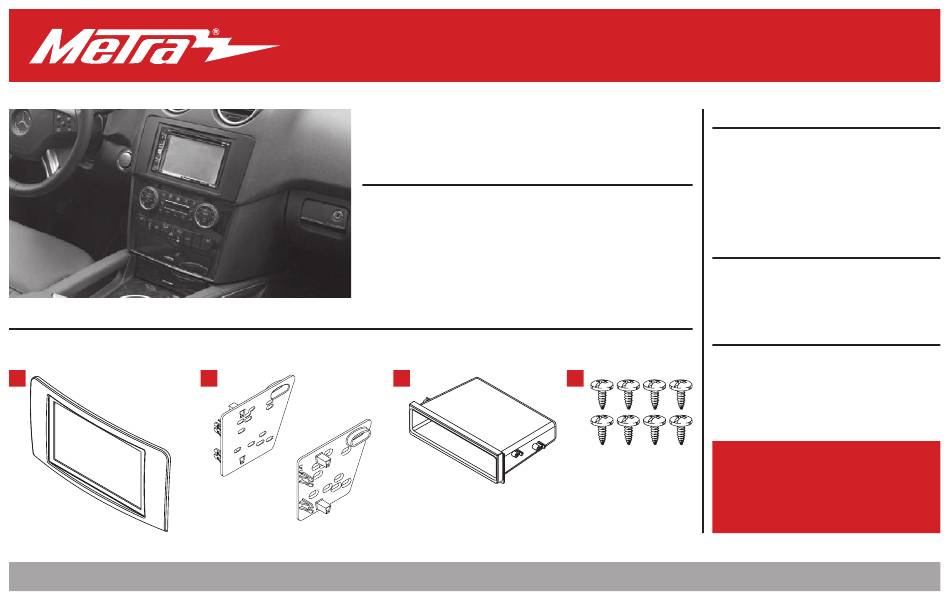

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8" Phillips screws
A
Metra. The World's Best Kits.
®
Mercedes-Benz ML 2006-2011
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted matte black
B
MetraOnline.com
C
D
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
99-8723B
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly . .................................................2
Kit Assembly
–ISO DIN radio provision with pocket . .................3
–ISO DDIN radio provision . ....................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Please visit metraonline.com for additional
adapters and accessories.
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• T-20 Torx driver
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 09/27/17 INST99-8723B
Advertisement
Related Manuals for Metra Electronics 99-8723B
Summary of Contents for Metra Electronics 99-8723B
- Page 1 Also, do not remove the factory radio with the key in the on position, or while the vehicle is running. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 09/27/17 INST99-8723B...
- Page 2 DASH DISASSEMBLY 1. Unsnap and remove climate controls. 2. Remove (2) T-20 Torx screws from the radio retaining tabs. 3. Push straight down on the retaining tabs Please visit Metraonline.com for to release the factory radio. Dash Disassembly illustrations. Continue to Kit Assembly 1.800.221.0932 MetraOnline.com...
- Page 3 KIT ASSEMBLY ISO-DIN radio provision with pocket ISO-DDIN radio provision 1. Attach the radio brackets to the radio 1. Attach the radio brackets to the radio trim panel using (4) #8 x 3/8” Phillips trim panel using (4) #8 x 3/8” Phillips screws supplied. (Figure A) screws supplied. (Figure A) 2. Attach the pocket to the bracket 2. Slide the radio into the completed assembly using the (4) supplied assembly, and then secure it to the #8 x 3/8” Phillips screws. (Figure B) assembly using screws supplied (Figure A) with the radio. (Figure B) 3. Remove the metal DIN sleeve and trim ring from the aftermarket radio. 3. Locate the factory wiring harness and antenna connector in the dash, and 4. Slide the radio into the completed (Figure A) complete all necessary connections to assembly, and then secure it to the the radio. Metra recommends using the assembly using screws supplied proper mating adapter from Metra with the radio. (Figure C)
- Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 09/27/17 INST99-8723B...
