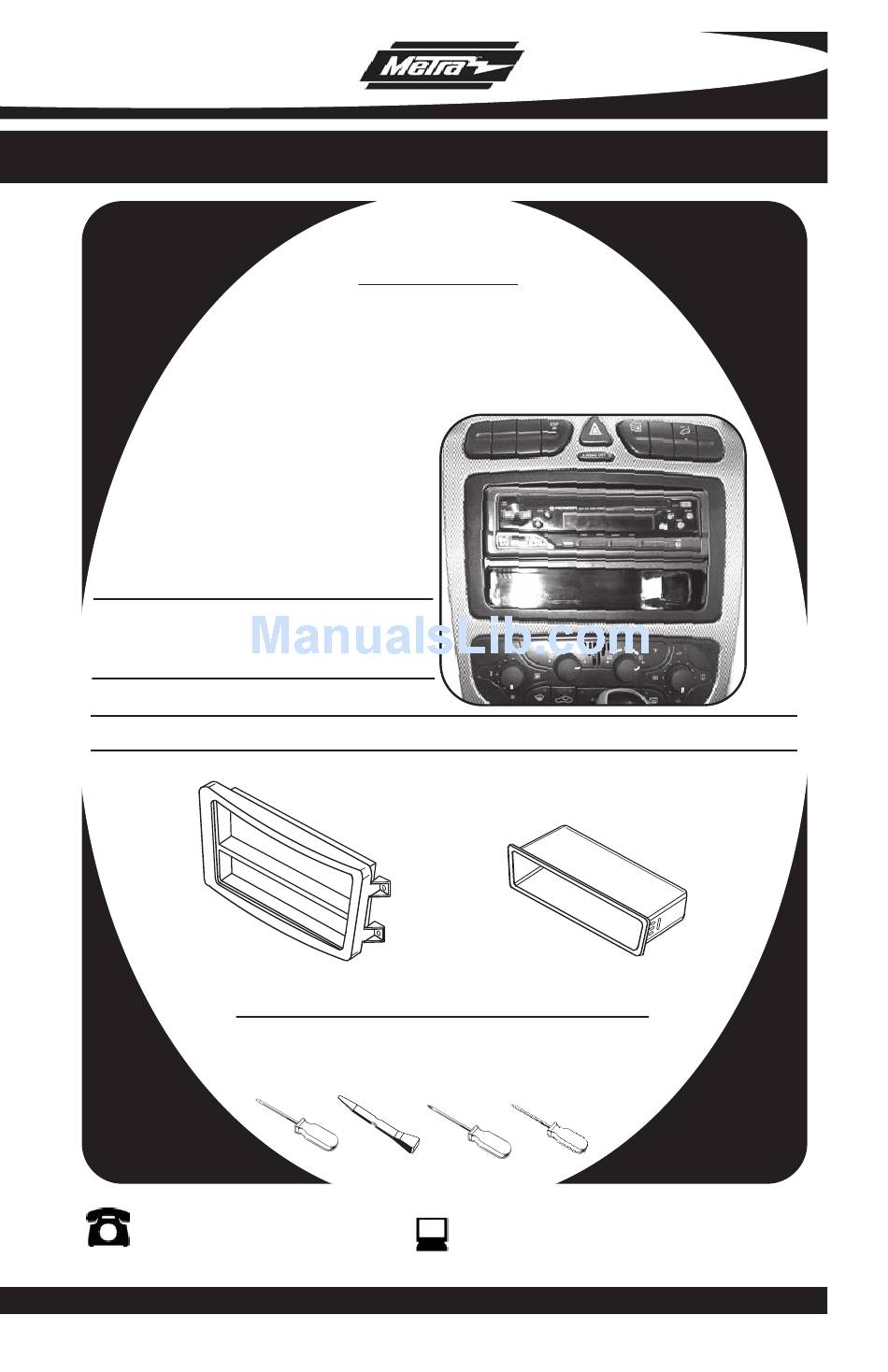

INSTALLATION INSTRUCTIONS FOR PART 99-8711
APPLICATIONS
Mercedes C-Class 2001-2004
Mercedes CLK 2004
99-8711
KIT FEATURES
• DIN Radio Provision with Pocket
• Stacked DIN Units Provision
KIT COMPONENTS
A) Radio Housing B) Pocket
A
B
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Torx Screwdriver
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99-8711 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metra Electronics 99-8711

  • Page 1: Mercedes Clk 2004

    INSTALLATION INSTRUCTIONS FOR PART 99-8711 APPLICATIONS Mercedes C-Class 2001-2004 Mercedes CLK 2004 99-8711 KIT FEATURES • DIN Radio Provision with Pocket • Stacked DIN Units Provision KIT COMPONENTS A) Radio Housing B) Pocket TOOLS REQUIRED: Small Flat Blade Screwdriver/ Panel Removal Tool •...
  • Page 2: Table Of Contents

    Final Assembly ......... . 5 *Note: Refer also to the instructions included with the aftermarket radio. 99-8711...
  • Page 3: Mercedes C-Class 2001-2004

    Unclip the (2) metal clips at the bot- tom edge of the climate control/radio trim panel and remove trim panel. Remove (4) Phillips screws securing factory radio then unplug and remove the radio. Continue to kit assembly. 99-8711 DASH DISASSEMBL Y “C” “B” “A”...
  • Page 4: Mercedes Clk 2004

    Remove (2) screws from bottom of cli- mate control/radio trim panel. Unclip climate control/radio trim panel. Unplug and remove trim panel. Remove the (4) screws securing the radio then unplug and remove the radio. Continue to final assembly. 99-8711 DASH DISASSEMBL Y MERCEDES CLK 2004...
  • Page 5: Din Mount Radio Provision

    (Figure A) Slide the aftermarket radio into the cage until it snaps into place. (Figure B) Slide the pocket into the radio housing until it snaps into place. (Figure B) Continue to final assembly. 99-8711 KIT ASSEMBL Y...
  • Page 6: Stacked Din Units Provision

    Slide the DIN cages into the Radio Housing and secure by bending the metal locking tabs outward. (Figure A) Slide the aftermarket units into the cages until they snap into place. (Figure B) Continue to final assembly. 99-8711 KIT ASSEMBL Y...
  • Page 7: Final Assembly

    *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 99-8711 FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together...
  • Page 8 99-8711 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 10/20/06 © COPYRIGHT 2004 METRA ELECTRONICS CORPORATION INST99-8711...
