Metra Electronics 99-8222 Installation Instructions Manual

Toyota highlander (w/o nav) 2008-2012
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

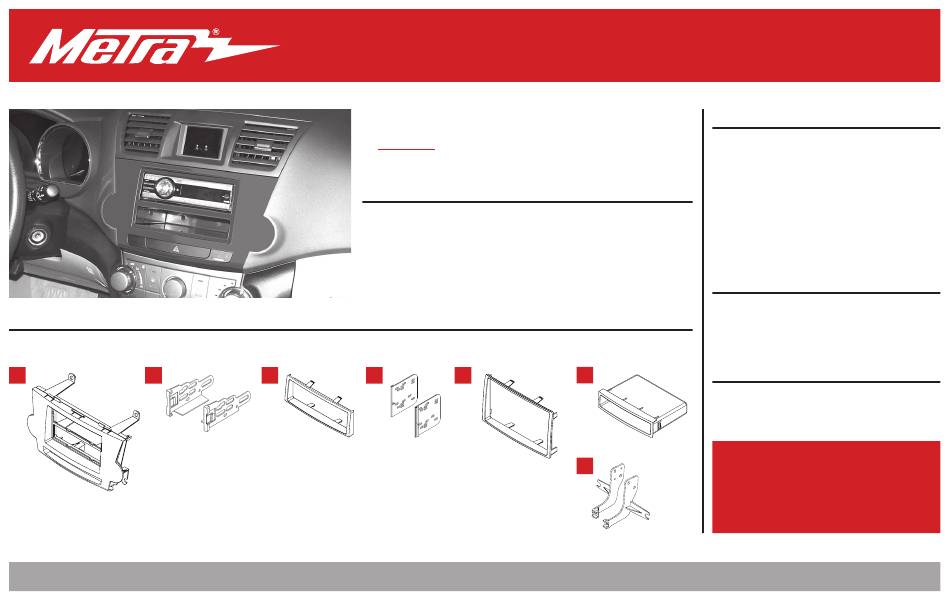

KIT COMPONENTS
• A) Radio housing • B) ISO DIN brackets • C) ISO DIN trim plate • D) ISO DDIN brackets • E) ISO DDIN trim plate • F) Pocket • G) Radio housing brackets
A
B
Metra. The World's Best Kits.
®
Toyota Highlander
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted to match factory dash:
99-8222 = Black, 99-8222BR = Brown
C
D
MetraOnline.com
2008-2012
(w/o NAV)
E
F
G
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
99-8222
I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Dash Disassembly ..................................................2
Kit Preparation ................................................... 3-4
-DIN radio provision with pocket ........................5
-ISO DDIN radio provision .....................................7
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: 70-1761 • TYTO-01 (w/ amp)
Antenna Adapter: Not required
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Cutting tool • 10mm socket wrench
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 6/25/19 INST99-8222

Advertisement

loading

Related Manuals for Metra Electronics 99-8222

Summary of Contents for Metra Electronics 99-8222

  • Page 1: Table Of Contents

    –ISO DDIN radio provision ........7 • ISO DDIN radio provision • Painted to match factory dash: WIRING & ANTENNA CONNECTIONS (sold separately) 99-8222 = Black, 99-8222BR = Brown Wiring Harness: 70-1761 • TYTO-01 (w/ amp) KIT COMPONENTS Antenna Adapter: Not required •...

  • Page 2: Dash Disassembly

    DASH DISASSEMBLY 1. Unclip and remove the a/c vent panel. (Figure A) 2. Unclip, unplug, and remove the climate control panel. (Figure B) 3. Remove (4) 10mm bolts securing the radio. Slide the radio out, then unplug and remove the radio/display assembly. (Figure C) Continue to Kit Preparation (Figure A)

  • Page 3: Kit Preparation

    KIT PREPARATION From the factory radio/display assembly: 1. Remove (2) Phillips screws securing the SCREW ON EACH display panel, then remove. (Figure A) SIDE 2. Unclip and remove the hazard switch assembly. (Figure B) 3. Remove (4) panel clips. (Figure C) SIDE VIEW CLOCK/DISPLAY- RADIO ASSEMBLY...
  • Page 4 KIT PREPARATION (CONT.) To the 99-8222 radio housing: 4. Attach the radio housing brackets. (Figure D) Note: Make sure the leg on the bracket points outward. 5. Slide the factory display panel into the radio housing, then secure using the factory screws.

  • Page 5: Kit Assembly

    KIT ASSEMBLY DIN radio provision with pocket 1. Remove the metal DIN sleeve from the aftermarket radio. 2. Slide the sleeve into the radio housing assembly and secure by bending the metal locking tabs outward. (Figure A) 3. Slide the radio back into the sleeve until it snaps into place.

  • Page 6: Iso Din Radio Provision With Pocket

    KIT ASSEMBLY ISO DIN radio provision with pocket 1. Remove the metal DIN sleeve and trim ring from the aftermarket radio. 2. Secure the ISO DIN brackets to the radio using the screws supplied with the radio. (Figure A) 3. Slide the radio into the radio housing assembly until it snaps into place.

  • Page 7: Iso Ddin Radio Provision

    KIT ASSEMBLY ISO DDIN radio provision 1. Cut and remove the center bar from the radio housing. (Figure A) 2. Attach the ISO DDIN brackets to the inside opening of the radio housing assembly. (Figure B) 3. Slide the radio into the radio housing assembly, then secure using screws supplied with the radio.
  • Page 8 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 6/25/19 INST99-8222...
