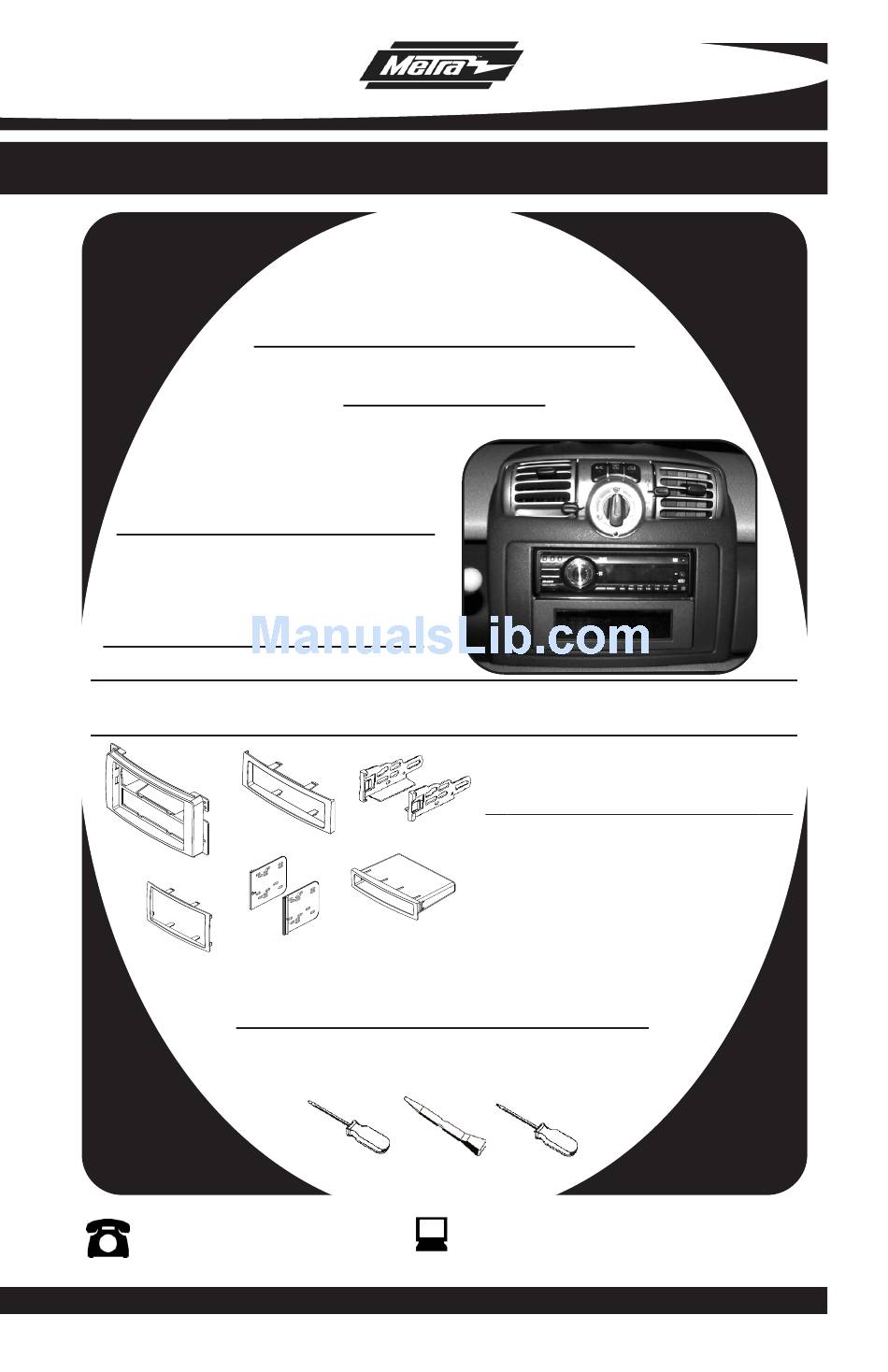

INSTALLATION INSTRUCTIONS FOR PART 99-8715 SMART FORTWO 99-8715 KIT FEATURES • DIN Radio Provision With Pocket • ISO Mount Radio Provision With Pocket • Double DIN Radio Provision • Stacked ISO Mount Units Provision KIT COMPONENTS • A) Radio Housing • B) Trim Plate • C) ISO Brackets • D) Double DIN Trim Plate •...
Final Assembly ......... . . 5 *Note: Refer also to the instructions included with the aftermarket radio. 99-8715 NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
(Figure C) Remove (4) T-20 Torx head screws from around the radio. (Figure D) Remove radio and disconnect the wire harness and antenna. Continue to kit assembly. 99-8715 DASH DISASSEMBLY...
(Figure A) Slide the aftermarket radio into the cage until it snaps into place. (Figure B) Snap the pocket into the radio hous- ing. (Figure C) Continue to final assembly. 99-8715 KIT ASSEMBLY...
(Figure B) Snap the pocket into the radio hous- ing. (Figure C) Snap the Trim plate onto the front of the radio housing. (Figure D) Continue to final assembly. 99-8715 KIT ASSEMBLY...
Dimmer ....Orange / White *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 99-8715 FINAL ASSEMBLY (A) Strip wire ends back 1/2" B) Twist ends together...
