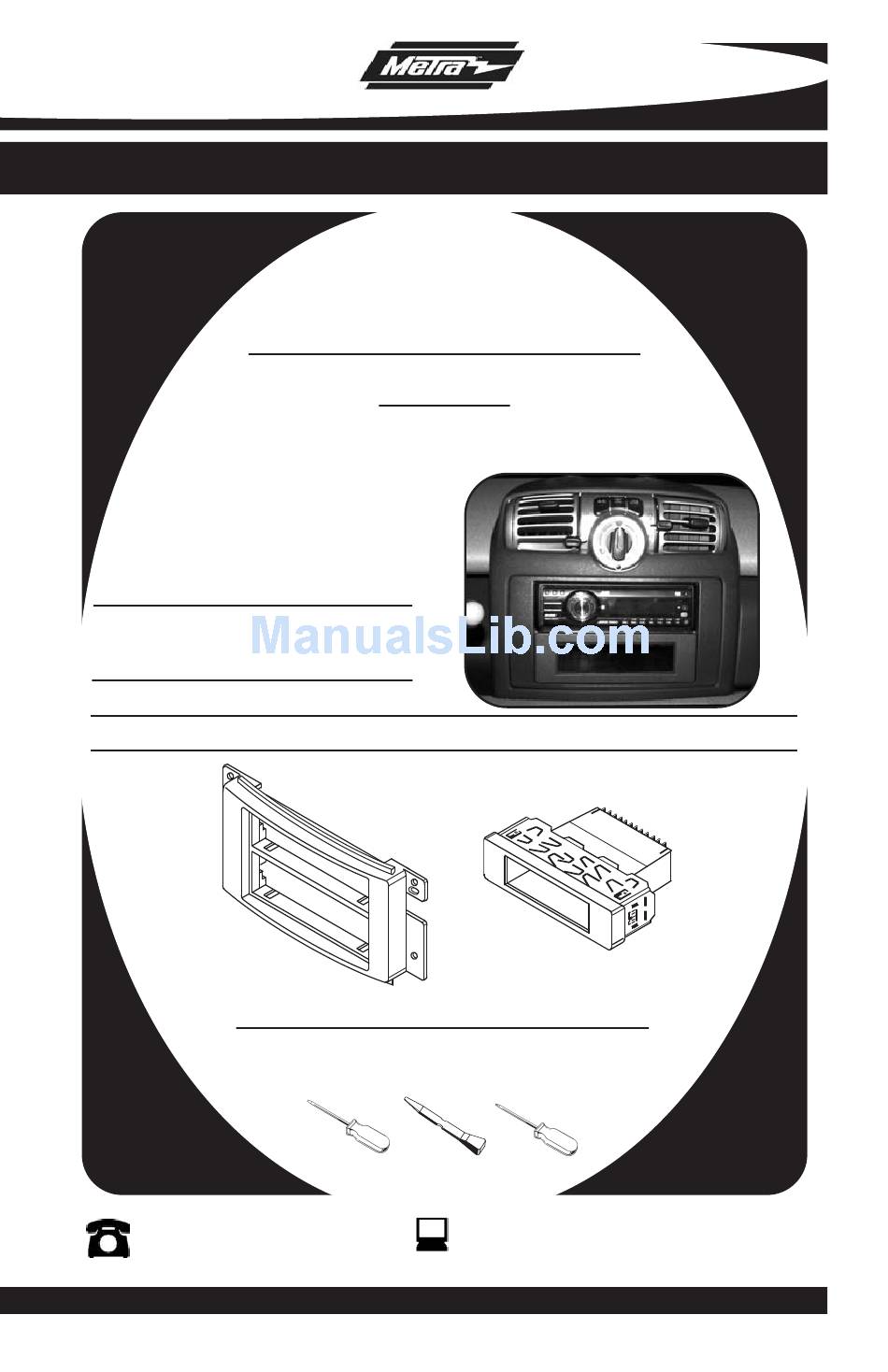

INSTALLATION INSTRUCTIONS FOR PART 99-8714
APPLICATIONS
SMART FORTWO
2008
99-8714
KIT FEATURES
• DIN Radio Provision with Pocket
• Stacked DIN Units Provision
KIT COMPONENTS
A) Radio Housing • B) Pocket
A
B
TOOLS REQUIRED:
• Small Flat Blade Screwdriver/ Panel Removal Tool
• T-20 Torx Screwdriver
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2008
METRA ELECTRONICS CORPORATION
Advertisement
Related Manuals for Metra Electronics 99-8714
Summary of Contents for Metra Electronics 99-8714
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-8714 APPLICATIONS SMART FORTWO 2008 99-8714 KIT FEATURES • DIN Radio Provision with Pocket • Stacked DIN Units Provision KIT COMPONENTS A) Radio Housing • B) Pocket TOOLS REQUIRED: • Small Flat Blade Screwdriver/ Panel Removal Tool •...
- Page 2 Final Assembly ......... . . 4 *Note: Refer also to the instructions included with the aftermarket radio. 99-8714...
-
Page 3: Smart Fortwo 2008
(Figure C) Remove (4) T-20 Torx head screws from around the radio. (Figure D) Disconnect the wire harness and antenna and remove radio. Continue to kit assembly. 99-8714 DASH DISASSEMBL Y... -
Page 4: Din Radio Provision With Pocket
Slide the aftermarket radio into the cage until it snaps into place. (Figure B) Snap the pocket into the radio hous- ing. (Figure C) Continue to final assembly. NOTE: Pocket may be installed in top or bottom of radio housing. 99-8714 KIT ASSEMBL Y... -
Page 5: Stacked Din Units Provision
Slide the DIN cages into the radio housing and secure by bending the metal locking tabs outward. (Figure A) Slide the aftermarket units into the cage until it snaps into place. (Figure B) Continue to final assembly. 99-8714 KIT ASSEMBL Y... -
Page 6: Final Assembly
*NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 99-8714 FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together... - Page 7 99-8714 NOTES...
- Page 8 99-8714 INSTRUCTIONS www.metraonline.com 1-800-221-0932 REV. 03/27/08 © COPYRIGHT 2008 METRA ELECTRONICS CORPORATION INST99-8714...
