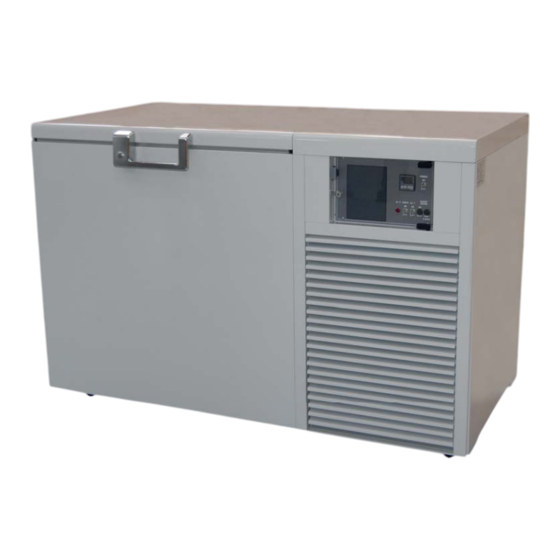

Arctiko CRYO 170-0 Operating Instructions Manual

Hide thumbs Also See for CRYO 170-0:

Operating instructions manual (24 pages)

Table Of Contents

Quick Links

Download this manual

OPERATING INSTRUCTIONS

CRYO 170-0 / 230-0

Table of Contents

Need help?

Do you have a question about the CRYO 170-0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Arctiko CRYO 170-0

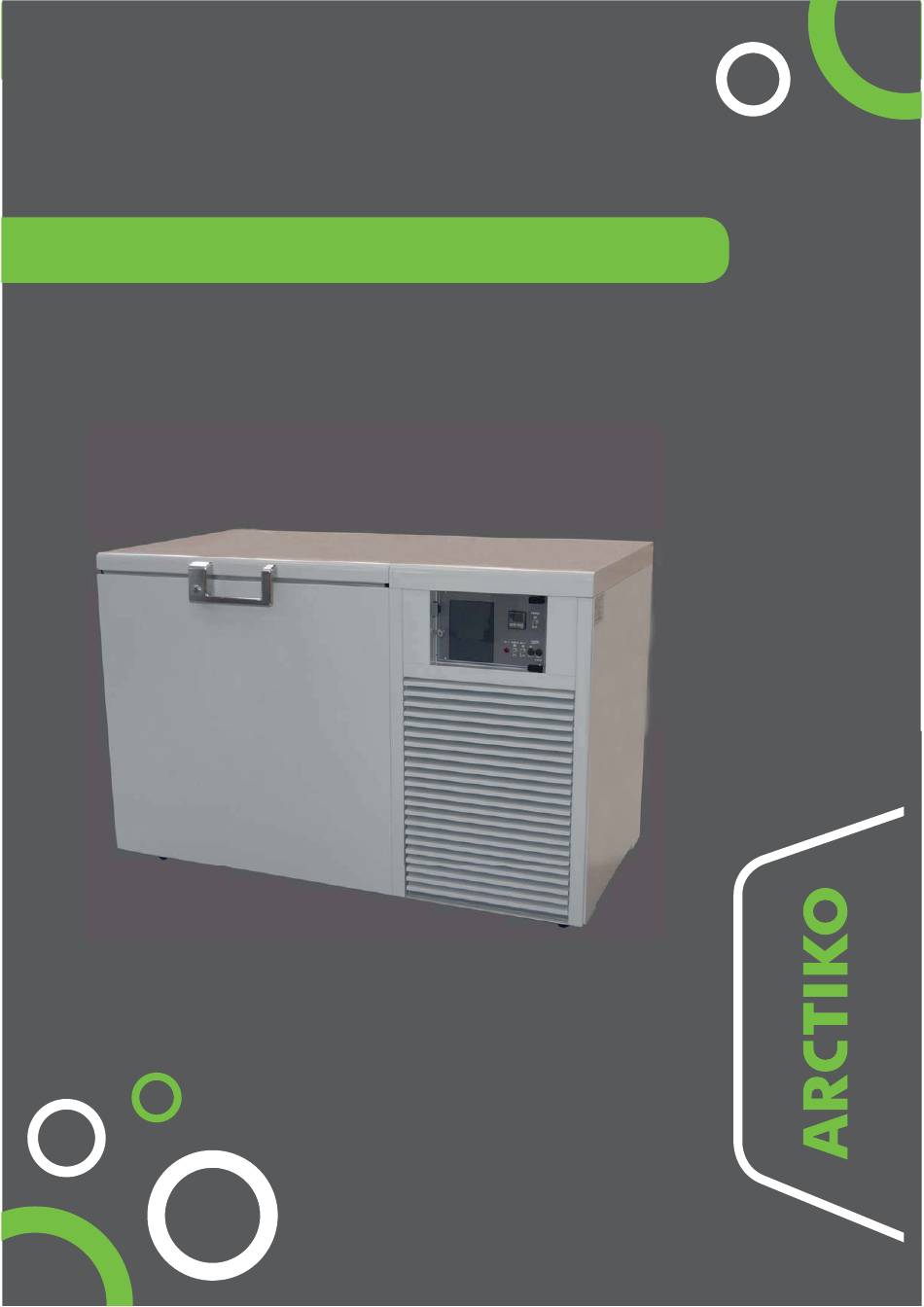

Page 1 OPERATING INSTRUCTIONS CRYO 170-0 / 230-0...
Page 2 Notice Please read this user manual before operating or using the product. Be aware of the following warnings and cautions. Ignoring the following warnings and cautions may cause damage to the equipment and/or user injury. The appliance should only be operated after reading the manual, and with the user's due care and discretion.
Page 3: Table Of Contents
Before using the appliance …………………………………………………………… Name and function of each part …………………………………………………… Installation …………………………………………………………………………………… Before commissioning …………………………………………………………………… Connecting transformer to CRYO 170-0 & 230-0 ……………………………… Operation panel ……………………………………………………………………………… Parameter lists ……………………………………………………………………………… Chart Recorder ……………………………………………………………………………… Explanation on Automatic Cooling Auxiliary Device (LN2) ......
Page 4: Before Using The Appliance
Before using the appliance The marks used in this product and this User Manual refer to the following: Cautionary messages with these marks aim to allow correct and safe use of the product and to prevent any risk and injury of you and other persons. Precautions are described under the categories, ‘Warning’...
Page 5 Warning For correct use Installation should only be performed by a qualified expert from the sales agency or elsewhere. Imperfect installation may result in electric shocks or fire. Place the appliance on a firm and level floor, which can hold the weight of the freezer. Imperfect installation or lack of floor strength may cause the appliance to tilt or fall over, leading to personal injury or damage to the freezer.
Page 6 Warning For correct use In case of malfunctioning, switch off the appliance, then pull out the power plug or turn the power off at the source. Failure to perform these actions when the appliance shows any signs of malfunction may cause electric shocks or fire. When moving the appliance please consult your sales agency or other qualified experts.
Page 7: Name And Function Of Each Part
Name and function of each part Front Right Door - Door knob The door knob is a pulling type, so pull the knob and then open the door. Also the knob has a cylinder padlock, so the door can be locked. Inner cover Ensure to set before operation in order to decrease leaked chilly air or maintain insulation.
Page 8 Ventilstion gallery Radiating is in the condenser of the machine room. As it radiates by absorbing the air with an air cooling fan, do not block the front of the ventilation gallery and the rear of a main body with a wall etc. External output jake for alarm 2 P jack is on the rear of the main body.
Page 9: Installation
Installation Installation should only be performed by a qualified expert from the sales agency or elsewhere. Imperfect installation may result in water leakage, electrical leakage, electric shocks, or fire. Choose an area with low levels of both heat and moisture. The cooling performance of the freezer may be adversely affected if it is placed in direct sunlight or near a source of high temperatures.
Page 10: Before Commissioning
Before commissioning 1. Install the freezer on a flat and level floor. Install the freezer on a level floor. The front side of the freezer should be approximately 1cm higher than the back side. 2. Clean the inside of the freezer and put the sub-lids. 3.
Page 11 Before commissioning (Make sure to read the following) Warning Make sure that the power plug is cleaned If the surrounding temperature is outside regularly. Always make sure that the plug is the optimum range (5°C~30°C), it may cause breakdown. completely inserted into the outlet. A dusty or dirty plug or incomplete insertion of the Do not use any inflammable spray, such as plug may cause electric shocks or fire.
Page 12: Connecting Transformer To Cryo 170-0 & 230-0
Connecting transformer to CRYO 170-0 & 230-0 ATTENTION!!!!! The transformer must be connected before use. Tools to be used. The unit is prepared for installation of transformer at the back of the unit. Remove the screw.
Page 13 Place the holes on the transformer in front of the holes on the unit. Mount the screw.
Page 14 Cut the strip. Connect the cable from the unit to the transformer. Mount the main cable from the transformer the wall socket.
Page 15: Operation Panel
Operation panel (Double Cooling System) Operation Panel Temperature Controller You can control the temperature by setting parameters. 1. Once the freezer is switched on, the initial screen will be displayed for 4 seconds. 2. The controller shows the present value (PV) and set value (SV) Key to set the tem perature.
Page 16 Follow the order below when starting the operation. 1. Insert a power lamp into a socket 2. Turn off AL-1 switch and REMOTE switch. 3. Turn on POWER switch. The display of a temperature adjuster will be on and operation starts. 4.
Page 17 Alarmfunction This product alarms with a buzzer sounding when the inner temperature of a freezer increases or power goes out, in order to protect stored items. Furthermore, it has the zero voltage terminal to output such an alarm signal outside. All is equipped with On/Off switches, so use it as necessary. Temperature increase alarm The temperature increase alarm sounds under the following condi tions.
Page 18: Parameter Lists
How to change parameter in level set1, set2, set3, set7 1. Press the MODE for 2 sec. 2. Select the desired SET level by pressing the button UP or DOWN 3. Access to the SET level by pressing the MODE button. 4.
Page 19 -180...
