Vitek VTC-AR2B4FN Quick Start Manual

Package Includes

1. Box Contents

1) VTC-AR2B4FN IP Infrared Bullet camera
2) Mounting Accessories
3) ENVI Series CD & Mounting Template

2. Included Accessories

3mm Hex L-wrench
Qty: 1
Wall mounting screws
Qty: 3
Anchors
If necessary, use the anchor to help secure the self tapping screws.
Qty: 3
Sunshield
Qty: 1
Mounting Template
Qty: 1
Thumb Screw/Washer for Sun Shield
Qty: 1 (each)
ENVI Series CD
Qty: 1

Dimensions

MEASUREMENTS: INCHES
9.25

Layout

External View
Fixing screw
for Sunshield
Sunshield
Front cover
Window
Lens
Infrared LEDs(x24)
Internal View
Micro SD Card Slot
2
7.72
Ø2.64
Mounting base
Mount Pan Adjustment
Mount Tilt Adjustment
Mount Rotation Adjustment
Body
Rubber sealing
IP Reset Button
3

QUICK START GUIDE

• 1/2.7" Progressive Scan CMOS
• 2.13 MegaPixel With full 1080p/720p Output
• Up to 30fps live view @ 1920x1080 (1080p)
• Built in 3.6mm Megapixel Fixed Iris Lens
• Automatic True Day/Night
• H.264/MJPEG Dual Streaming
• 24 IR LEDs with up to 50' Range
• Micro SD memory card slot for Local recording
• Advanced OSD Functions: Motion Detection &
Privacy Masking
• Heavy Duty IP66 rated weather/vandal resistant
aluminum construction
• 12VDCs & PoE (Power over Ethernet) Operation
Specifications & installation procedure subject to change without notice.
Visit www.vitekcctv.com for the most current information available.

Connections

VTC-AR2B4FN
12 VDC Power
Supply
VTC-AR2B4FN

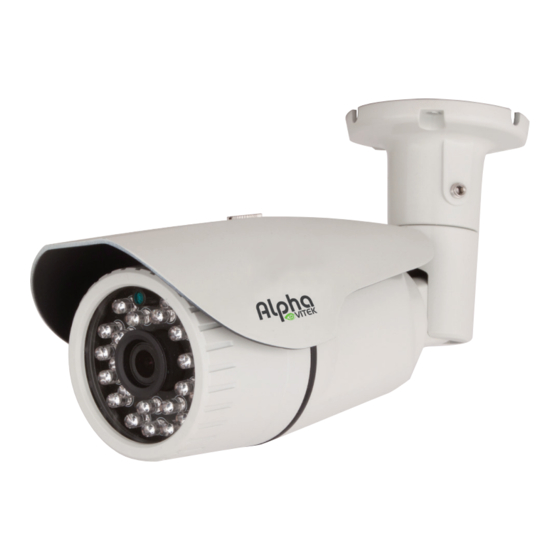

Alpha 2.13 MP Bullet Camera
with 3.6mm Fixed Iris Lens
Ethernet Cable
4
