4.2 Installation Tools and Information
Prepare the required tools and instructions. Before
installation please prepare the following tools:
A straight or a Phillips-head screwdriver, multi-meter,
cutter, needle nose pliers, measuring tape, pencil.
4.3 Installation Method
1. Check the camera for any external damage.
2. Mount the bracket or base:
① For cement wall, install the expansion screws, and
then mount the bracket/base.
② For wooden wall use self-tapping screws to mount.
Note:
The wall needs to bear at least 3X weight of
bracket (base) and
method above is for reference only.
4.4 Setting the camera:
a. Dome Camera
Adjust the lens position so it aims at the main monitoring
point and gives a clear picture.
6
camera. Installation
b. Bullet Camera
Adjust the body so that the lens aims at the main
monitoring point and gives a clear picture. Tighten the
screws to ensure that it does not move.
4.5 Setting the video output type:
The camera supports AHD/TVI/CVI/CBVS video output.

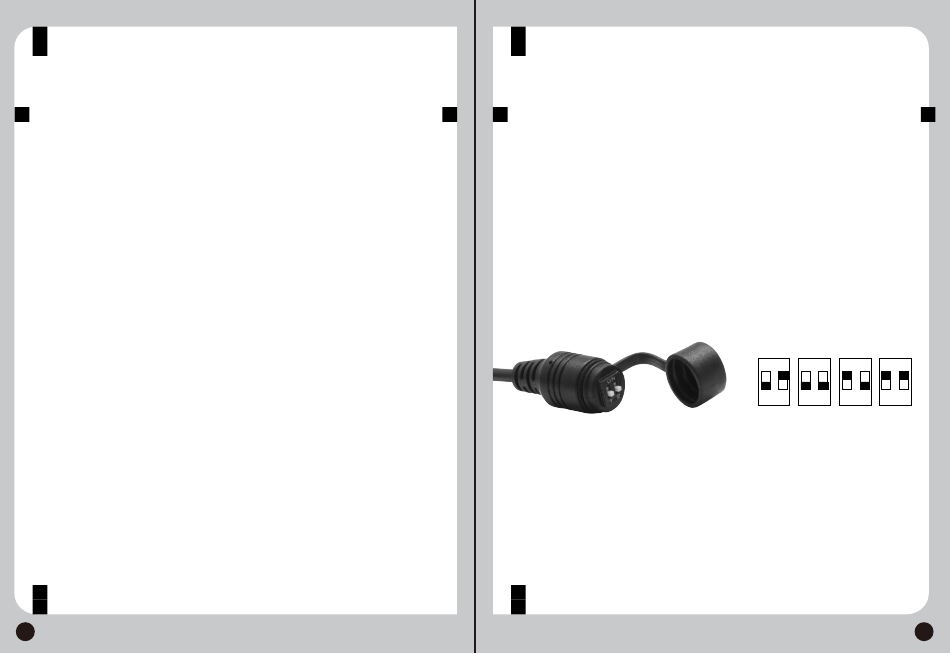

Choosing the output type is done by setting a DIP switch
on the cable as illustrated:
ON ON ON ON
1 2 1 2 1 2 1 2
AHD HD TVI HD CVI Analog
