T
S
OOL
TICK
1. Handling Recommendations
To enable development, the ToolStick Base Adapter and daughter cards are distributed without any protective
plastics. To prevent damage to the devices and/or the host PC, consider the following recommendations when
using the ToolStick:
Never connect or disconnect a daughter card to or from the ToolStick Base Adapter while the Base Adapter
is connected to a PC.
Always connect and disconnect the ToolStick Base Adapter from the PC by holding the edges of the
boards.
Avoid directly touching any of the other components.
Manipulate mechanical devices on the daughter cards, such as potentiometers, with care to prevent the
Base Adapter or daughter card from accidentally dislodging from their sockets.
Rev. 0.2 2/14

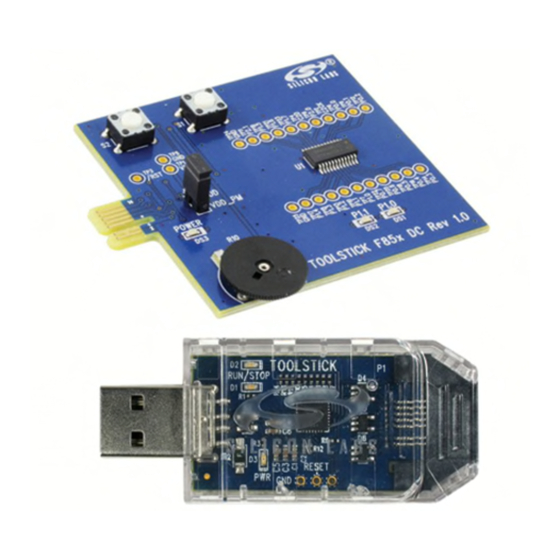

TOO L S T I C K 8 5 0 D C - U G
C8051F850 D

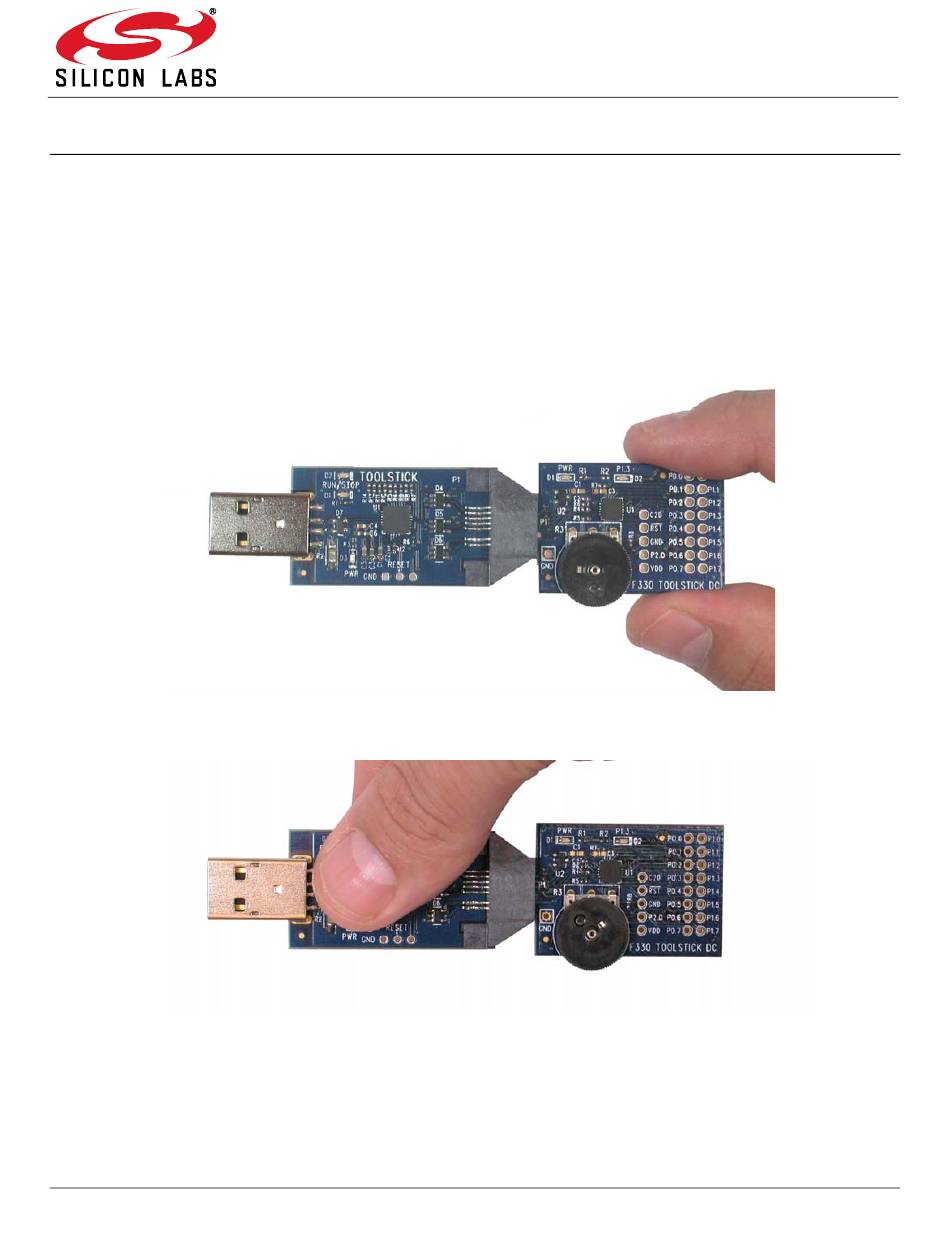

Figure 1. Proper Method of Holding the ToolStick
Figure 2. Improper Method of Holding the ToolStick
Copyright © 2014 by Silicon Laboratories
C
AUGHTER
ARD
U
'
G
SER
S
U ID E
ToolStick-F850DC
Advertisement
Related Manuals for Silicon Laboratories TOOLSTICK C8051F850
Summary of Contents for Silicon Laboratories TOOLSTICK C8051F850
- Page 1 Figure 2. Improper Method of Holding the ToolStick Manipulate mechanical devices on the daughter cards, such as potentiometers, with care to prevent the Base Adapter or daughter card from accidentally dislodging from their sockets. Rev. 0.2 2/14 Copyright © 2014 by Silicon Laboratories ToolStick-F850DC...
- Page 2 GPIO, and a small prototyping area which provides access to all of the pins of the device. This prototyping area can be used to connect additional hardware to the microcontroller and use the daughter card as a development platform. Figure 3 shows the ToolStick C8051F850 Daughter Card and identifies the various components. Push-Button Switches...
- Page 3 TOOLSTICK850DC-UG 4. Getting Started The necessary software to download, debug, and communicate with the target microcontroller must be downloaded from www.silabs.com/toolstick. The following software is necessary to build a project, download code to, and communicate with the target microcontroller: Simplicity Studio ...
- Page 4 TOOLSTICK850DC-UG The following Simplicity Studio components are required for the C8051F850 ToolStick Starter Kit: 8051 Products Part Support Simplicity Developer Platform Download and install Simplicity Studio from www.silabs.com/8bit-software or www.silabs.com/simplicity-studio. Once installed, run Simplicity Studio by selecting Start Silicon Labs Simplicity Studio Simplicity Studio...
- Page 5 TOOLSTICK850DC-UG 5.2. Simplicity Studio Help Simplicity Studio includes detailed help information and device documentation within the tool. The help contains descriptions for each dialog window. To view the documentation for a dialog, click the question mark icon in the window: This will open a pane specific to the dialog with additional details.
- Page 6 TOOLSTICK850DC-UG To configure pins, click on the DefaultMode Port I/O tab at the bottom of main window. Clicking on a pin brings up a property window for the pin. Clicking anywhere else in the main window opens a property window for the crossbar.
- Page 7 TOOLSTICK850DC-UG 5.4. Legacy 8-bit IDE Note: Using the Simplicity Studio tools with the C8051F850 ToolStick is recommended. See "5. Software Overview‚" on page 3 for more information. Download the 8-bit software from the website (www.silabs.com/8bit-software) to install the software tools for the ToolStick-F850DC devices.
- Page 8 TOOLSTICK850DC-UG 8. Copy the License ID Code (LIC) from the email. 9. Paste the LIC into the New License ID Code (LIC) text box at the bottom of the License Management window in µVision4. 10. Press the Add LIC button. The window should now list the PK51 Prof. Developers Kit for Silabs as a licensed product.
- Page 9 6. Using the C8051F850 Daughter Card as a Development Platform The prototyping area on the ToolStick C8051F850 Daughter Card makes it easy to interface to external hardware. All of the digital I/O pins are available, so it is possible to create a complete system.
- Page 10 TOOLSTICK850DC-UG 7. Schematic Rev. 0.2...
- Page 11 TOOLSTICK850DC-UG 8. Bill of Materials Table 2. C8051F850 ToolStick Daughter Card Bill of Materials (Rev 1.0) Reference Part Number Source Description C0603X7R100-105K Venkel 1 uF 10 V ±10% X7R 0603 C0603X7R100-104K Venkel 0.1 uF 10 V ±10% X7R 0603 DS1 DS2 SML-LX0603IW Lumex Inc RED 30mA LED 0603...
- Page 12 The products must not be used within any Life Support System without the specific written consent of Silicon Laboratories. A "Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected to result in significant personal injury or death.
- Page 13 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Silicon Laboratories TOOLSTICK850-B-DC TOOLSTICK850-B-SK...
