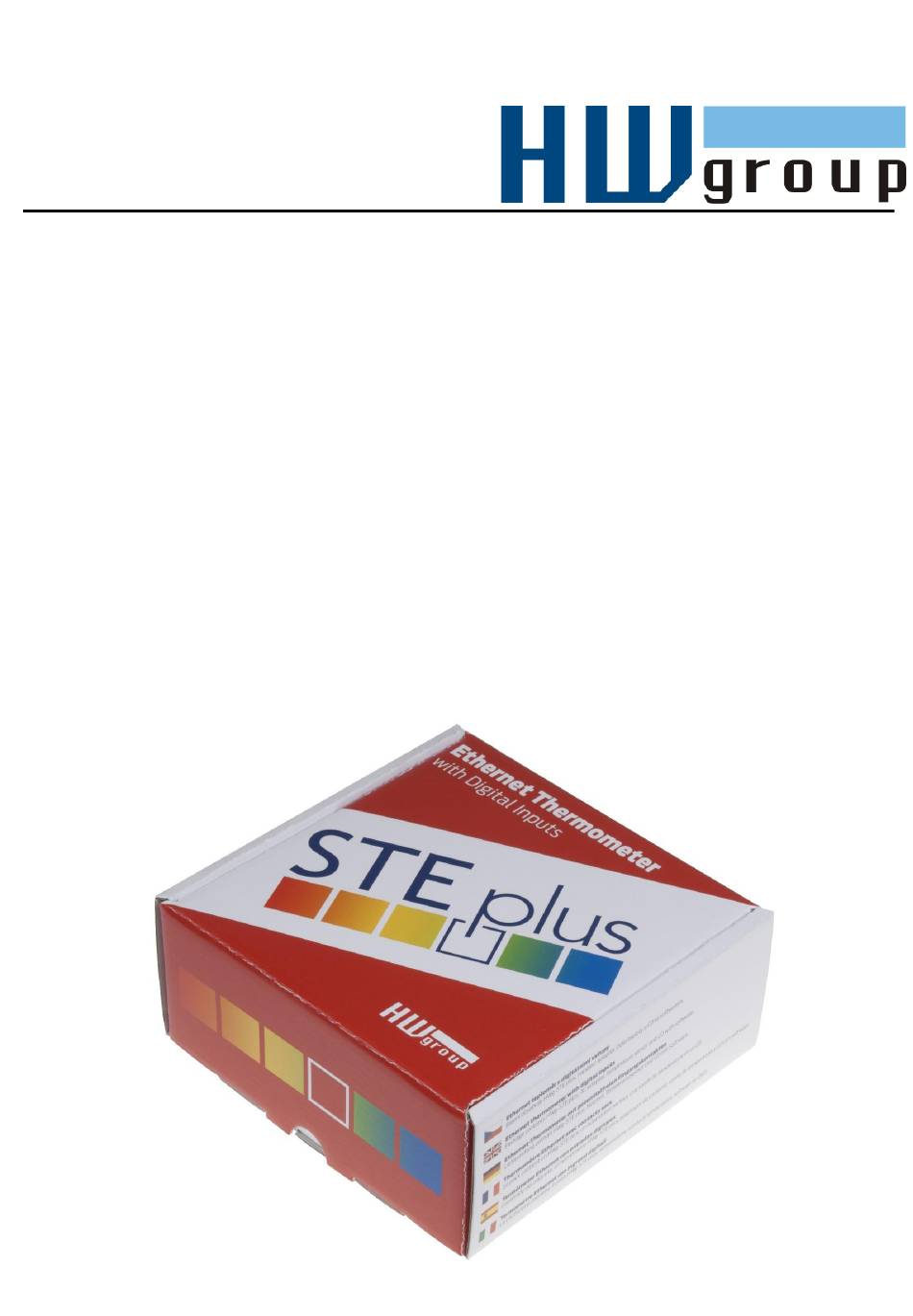

- Page 1 HWg-STE plus HWg-STE plus PoE MANUAL...
- Page 2 HWg-STE plus – manual HW group HWg-STE plus - connectors ETHERNET SENSORS 100 Mbps S1 and S2 ports for connecting temperature or humidity sensors. *) PoE power only for “HWg-STE PoE” Max distance 60m for both sensors in total LED indicators...
- Page 3 HWg-STE plus – manual HW group Recommended connection options Sensors connection options: Smoke sensor connection: Page 3 www.HW-group.com...
-
Page 4: Configuring The Ip Address - Udp Config
HWg-STE plus – manual HW group First steps 1) Connecting the cables Connect the unit to the Ethernet (patch cable to a switch, or a cross-over cable to a PC). Plug the power adapter in to a power outlet and connect it to the HWg-STE plus power connector. -
Page 5: First Steps
HWg-STE plus – manual HW group First steps 3) WWW interface of the device To open the WWW interface of the device: Enter the IP address into a web browser Click the IP address in UDP Config Click the underlined IP address in UDP SETUP ... -
Page 6: Device Configuration
HWg-STE plus – manual HW group Device configuration Device name Identifies the device in e-mails and SNMP User-defined footer. For example, administrator's contact details Temperature unit, for display and alarm inputs Password for configuration access The configuration password is required for every page except the main page. - Page 7 HWg-STE plus – manual HW group SNMP Port for SNMP polling SNMP device identification, same as the device name Email SMTP server to use for sending e-mails Sends a test e-mail to all entered recipients Page 7 www.HW-group.com...
-
Page 8: Digital Inputs
HWg-STE plus – manual HW group Time Digital Inputs Log0, Log1 state names. For example - fuel tank Full/Empty or front door Open/Closed. Digital Input ID Alarm settings (active/disabled) Sends an email in case of alarm if ticked Page 8... - Page 9 HWg-STE plus – manual HW group Sensors Inactivity period before and after each alarm Safe Range - device sends an email when this Deletes the sensor from the list threshold is exceeded - Scans for changes in connected sensors Note: After connecting a new sensor or exchanging an existing one, always click Find Sensors.
- Page 10 HWg-STE plus – manual HW group Portal Portal communication status Target portal settings with login details AutoPush function and sensitivity settings (delta – value change) Portal function periodically sends data to a remote server. Sending period depends on the time set on a server that operates the portal.
- Page 11 HWg-STE plus – manual HW group Graph Choose a sensor to show its graph. Values are stored on RAM memory Graph actualization period (s) Graph of the measured values. Mouse-over to Safe range threshold set for show the time and value at...
- Page 12 HWg-STE plus – manual HW group System Text list of most frequent SNMP variables SNMP MIB Firmware update Page 12 www.HW-group.com...
-
Page 13: Technical Specifications
Power Supply 5V DC / 250 mA Jack Ø3.5 x 1.35 / 10 [mm] Connector RJ45 - IEEE 802.3af (only with “HWg-STE plus PoE” version) (Power over Ethernet) POWER / status Green - power OK (status = DHCP/Local alarm) LINK & Activity... - Page 14 HWg-STE plus – manual HW group Connecting HWg-STE plus and STE Push to SensDesk portal 1) Connect the device to your network and set the network parameters (First Steps chapter in the user manual). 2) Then open the WWW setup of the device: Page 14 www.HW-group.com...
- Page 15 HWg-STE plus – manual HW group 3) On the Home tab, click the Activate button in Portal Message section. 4) This will get you to a Portal tab and at the same time the portal function will be activated. By clicking the link SensDesk.com: register your IP sensor a login window on...
- Page 16 HWg-STE plus – manual HW group 5) In case you already have a user account, please enter your login details and the device will be automatically assigned to your account. In case you do not have a SensDesk account yet, click the Register to Portal link and a registration form will be shown.:...
- Page 17 HWg-STE plus – manual HW group 7) By activating the account, you will be redirected to the Invitation page. At this moment, the data sending period is set to 10 seconds to show the sensors functionality. This page is active only for approximately 15 minutes after the activation, then the logging period changes to 15 minutes.
-
Page 18: Contact Details
Using the mobile phone Application Username and PUSH Device Password can be used also for setting the mobile application: Contact details HW group s.r.o Rumunská 26 / 122 Praha 2, 120 00 Tel. +420 222 511 918 Fax. - Page 19 HWg-STE plus – manual HW group Page 19 www.HW-group.com...
