HW Group Poseidon 2250 Short Manual

Snmp monitoring and logger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Poseidon 2250 – Short Manual
HW group
Poseidon 2250
Short Manual
www.HW-group.com
1 / 54

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Poseidon 2250 and is the answer not in the manual?

Questions and answers

Related Manuals for HW Group Poseidon 2250

Summary of Contents for HW Group Poseidon 2250

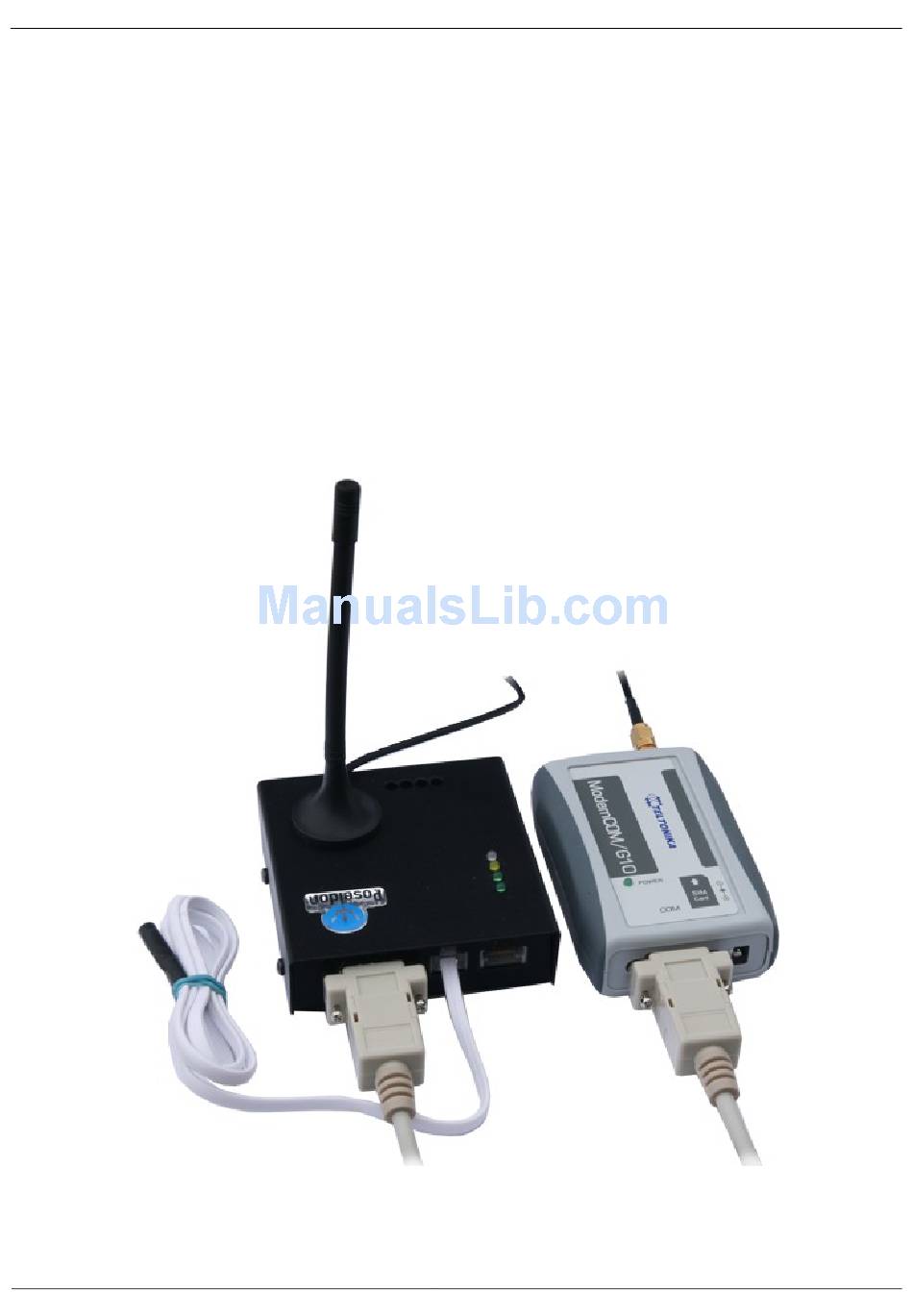

  • Page 1 Poseidon 2250 – Short Manual HW group Poseidon 2250 Short Manual www.HW-group.com 1 / 54...

  • Page 2: Safety Information

    Poseidon 2250 – Short Manual HW group Safety information The device complies with regulations and industrial standards in force in the Czech Republic and the European Union. The device has been tested and is supplied in working order. To keep the device in this condition, it is necessary to adhere to the following safety and maintenance instructions.
  • Page 3 Poseidon 2250 – Short Manual HW group Starting Guide – Poseidon 2250 Start measuring temperature with Poseidon 1) Poseidon connections 1.1) DIP switch settings. For installation, DIP switches must be set as shown: - DIP1=Off (On = RS-232 setup mode.

  • Page 4: Configuring The Ip Address - Udp Config

    Poseidon 2250 – Short Manual HW group 2) Configuring the IP address – UDP Config UDP Config utility – root directory of the supplied CD (Windows and Linux versions). Available for download www.HW-group.com Software > UDP Config. Click the icon to launch UDP Config.
  • Page 5 Poseidon 2250 – Short Manual HW group 3) Poseidon configuration in a Web browser Type the IP address of the device in your browser's address bar, or run UDP Config and double-click the blue underlined IP address in the list of discovered devices.
  • Page 6 Poseidon 2250 – Short Manual HW group 4) Configuration in Flash Setup Click the Flash Setup link at the web page to open a graphic version of the setup utility. Adobe Flash player plug-in must be installed in your web browser. You can find it on the supplied CD (\Poseidon\install_flash_player_7.msi), or download the latest version from the Internet.
  • Page 7 Poseidon 2250 – Short Manual HW group 5) Connecting the sensors 1Wire Bus (RJ11) Local bus for connecting sensors Connect the sensor before powering up the Poseidon – the connector must click in. Sensors can be daisy-chained. Maximum distance is 30m.

  • Page 8: Industrial Bus Sensors (Rs-485)

    Poseidon 2250 – Short Manual HW group Industrial Bus sensors (RS-485) Industrial bus for connecting sensors over longer distances Connect the sensors before powering up the unit. Sensors can be daisy-chained, or connected to a virtual star using the “S-Hub” unit.
  • Page 9 Periodic data export to MS Excel templates Poseidon 2250 and HWg-PDMS After installation from the CD, the HW group > Poseidon 2250 >> HWg-PDMS you can get data in two ways: HTTP XML – direct access to the unit E-MAIL Pop3 – download data from the email (Poseidon unit have to send email first) Note: Search Devices find only local network devices.
  • Page 10 Poseidon 2250 – Short Manual HW group This is free version of HWg-PDMS with graph of values loaded from internal memory. Note: To Export data to MS Excel, click to Add Report, check which sensors do you want to have in Excel and click to Save &...

  • Page 11: Hwg-Pd Trigger

    CapTemp CapTemp and MonTemp is a pair of utilities to monitor production processes. The programs can supervise all sensors from HW group (temperature and humidity sensors, contacts, etc) as well as sensors by other manufacturers. CapTemp logs the readings into an internal database, displays several most recent ones, and processes conditions and alarms.

  • Page 12: Poseidon Probes Calibrator

    Poseidon 2250 – Short Manual HW group Poseidon probes calibrator Each sensor can be calibrated by specifying a linear offset. The calibration value can be written over calibrator utility (a menu invoked by a right-click) or by XML. Programmers can use EX104 in the HWg SDK Calibration examples Calibration value = +3 →...

  • Page 13: Common Features Of The Poseidon Product Line

    Poseidon 2250 – Short Manual HW group Common features of the Poseidon product line Displayed readings The Poseidon unit displays current readings from all connected sensors. Dry contact inputs are scanned approximately every 200ms. Values from all sensors on both buses (RS-485 and 1W bus) are read in a single loop that repeats once per second;...

  • Page 14: Sensor Hysteresis

    Poseidon 2250 – Short Manual HW group Sensor hysteresis The Hysteresis setting defines a tolerance band for alarm alerts. This feature prevents multiple alarm alerts if the reading oscillates around the specified threshold. See the graph for an explanation. Without a hysteresis of 5°C, the alarm raised at point 8 would end at point 9. With the hysteresis function, the alarm continues until the temperature rises above the tolerance band (point 10), that is, 5°C + (-15°C) = -10°C.

  • Page 15: Technical Specifications

    Poseidon 2250 – Short Manual HW group Technical specifications Ethernet: RJ45 – 10BASE-T/10 Mbit/s Port 1: RS-485 bus (RJ45 jack) Port 2: 1-Wire bus (RJ12 jack) Port 3: RS-232 (D-sub 9M connector) Port4: Dry contact input terminals for 3 contacts (0 to 500...
  • Page 16 Poseidon 2250 – Short Manual HW group Ethernet port RJ45 (10BASE-T) – 10 Mbit/s + Interface Compatible with 10/100 Mbit/s networks + Supported protocols IP: ARP, TCP/IP (HTTP, Modbus over TCP), UDP/IP + SNMP compatibility Version 1.00 compatible, partial version 2.0 implementation Port 1 –...

  • Page 17: Mechanical Dimensions

    Poseidon 2250 – Short Manual HW group Mechanical dimensions Wall mount – “L” bracket www.HW-group.com 17 / 54...

  • Page 18: Mac Address

    Poseidon 2250 – Short Manual HW group Detailed device description Power connector The usual DC plug – 2,5mm coaxial barrel connector – is used to connect the power. Negative terminal is connected to the outer body of the plug. Ethernet Ethernet network connects via the standard RJ45 jack next to the power connector.

  • Page 19: Led Indicators

    Poseidon 2250 – Short Manual HW group DIP1 - RS-232 Setup mode DIP1 activates the RS-232 Setup mode. If DIP1=ON when the device is powered up, the RS-232 Setup mode is activated and the red MODE LED blinks. The Ethernet is disabled in this mode! To restore factory default settings: Toggle the DIP switch at least 3 times within 5 seconds after powering up the device.
  • Page 20 Poseidon 2250 – Short Manual HW group Port 3 DB9M - RS-232 Port 3 - DB9M The interface is intended for setting up the device (RS-232 Setup when DIP1=ON) and for updating the firmware. The DTR and RTS outputs can be controlled from the Flash...

  • Page 21: Port 4 - Dry Contact Inputs

    Poseidon 2250 – Short Manual HW group Port 4 – Dry contact inputs Three volt-free contacts can be connected to the terminal block against a single common pin. The inputs are electrically connected to the power supply. Unconnected inputs read as “0 (Off)”.

  • Page 22: Port 1 (Rj11) 1-Wire Bus / 1-Wire Uni

    Poseidon 2250 – Short Manual HW group Port 1 (RJ11) 1-Wire bus / 1-Wire UNI 1W or 1-Wire bus is a bus invented by Dallas Semiconductor and Port 1 – RJ12 designed to connect several sensors over a short wiring. The bus carries power and a single data wire;...
  • Page 23 Poseidon 2250 – Short Manual HW group Examples of 1W bus connections www.HW-group.com 23 / 54...
  • Page 24 Poseidon 2250 – Short Manual HW group Special accessories for the 1W bus Poseidon T-Box2 – RJ11 hub for 2 sensors Cable length: 1m Maximum number of connected sensors: 2 Connectors: RJ11 Bus type: 1W bus (1-Wire) Poseidon T-Box – RJ11 hub for 5 sensors...

  • Page 25: Port 2 - Rj45 - Industrial Bus (Rs-485)

    Poseidon 2250 – Short Manual HW group Port 2 - RJ45 - Industrial Bus (RS-485) Port 1 – RJ45 The RS-485 bus can be used to connect up to 31 sensors over up to 1000m, even in industrial environments. For convenience and ease of use, TP cables and RJ45 modular jacks are used to wire the RS485 industrial bus.
  • Page 26 Poseidon 2250 – Short Manual HW group Termination The RS-485 bus must be terminated at its end. The following options are available: Internal jumper on certain sensors (jumper named TERM or TERMINATOR) – for example Temp-485 or HTemp-485 B-Cable adaptor with “LAST” configuration selected using the switches External resistor to terminate the bus at the “last”...
  • Page 27 Poseidon 2250 – Short Manual HW group Sensor RJ45 MIDDLE cable RS-485 cable, 0.5m, RJ45/4 pins. Connects 4 terminals (A, B, +, - ) to a RJ45 modular jack (uses 3 pairs). This cable is used to connect all sensors except for the last one in the chain.
  • Page 28 Poseidon 2250 – Short Manual HW group Poseidon Spider A converter to connect four 1W bus (1-Wire) sensors to the Industrial bus(RS-485). Each 1W bus sensor connects to a separate connector to enable a greater distance (up to 1000 meters, as defined by the Industrial bus specification).
  • Page 29 Poseidon 2250 – Short Manual HW group S-Hub – 8x RJ45 TP hub The S-Hub unit with one input and 8 output ports is used to connect up to eight RS-485 sensors with TP cables. Makes it possible to connect sensors in a star...

  • Page 30: Industrial Bus (Rs-485) Wiring Example

    Poseidon 2250 – Short Manual HW group Industrial Bus (RS-485) wiring example °C °C °C %RH °C %RH Poseidon 1250 °C °C S-Hub Mode=MIDDLE °C °C %RH Spider Temp-485 HTemp-485 °C Temp-1Wire °C Term=ON °C °C Door Contact RJ45 Patch Straight Cable...

  • Page 31: User Interface

    Poseidon 2250 – Short Manual HW group User interface The product can be configured in various ways which are described in this section together with the parameters. UDP Config Simple utility for configuring IP addresses (for Windows and Linux). Web interface Primary communication interface that invokes other links and the Flash setup.

  • Page 32: Udp Config

    Device name, type, MAC address, IP address and communication port is displayed after a device is found Compatible with all HW group products (Poseidon, Damocles, PortBox, PortStore, I/O Controller, IP relay and other product lines) Windows and Linux versions available...

  • Page 33: Web Interface

    Poseidon 2250 – Short Manual HW group WEB interface The Web interface shows an overview of the device status. Configuration takes place in Flash Setup. The main page with the overview of sensor and input readings automatically reloads every 15 seconds.

  • Page 34: Dry Contact Inputs

    Poseidon 2250 – Short Manual HW group Dry Contact Inputs This section displays current states of dry contact inputs, including alarm status and settings. Active alarm is indicated by a red background of the corresponding line. Name Textual name of the input, assigned by user in the Flash Setup...

  • Page 35: Miscellaneous Information

    Poseidon 2250 – Short Manual HW group Miscellaneous information Device name Device name assigned by the user in Flash Setup Web Configuration Link to the Flash Setup Terminal Configuration (TCP Setup) Link containing the IP address and the port to open a terminal session for TCP Setup...

  • Page 36: Flash Setup

    Poseidon 2250 – Short Manual HW group Flash setup Flash setup for configuring the device. To open it, click the Web Configuration: Flash Setup link at the bottom of the main web page. Note: To open a FLASH page, FLASH support needs to be installed on your PC. If the PC is connected to the Internet, the plug-in is downloaded automatically.

  • Page 37: Flash Menu: General Setup

    Poseidon 2250 – Short Manual HW group Flash menu: General Setup Device name Important for sending e-mail and synchronizing time www.HW-group.com 37 / 54...

  • Page 38: Flash Menu: Snmp

    Poseidon 2250 – Short Manual HW group Flash menu: SNMP www.HW-group.com 38 / 54...
  • Page 39 Poseidon 2250 – Short Manual HW group Flash menu: Email & SMS Log file with values is sent every few hours to this recipient String inserted to the subject of every e-mail Test whether your e-mail setup works. www.HW-group.com 39 / 54...
  • Page 40 Poseidon 2250 – Short Manual HW group Flash menu: Log & Time Periodical email every XX minutes Remind alarm status by email every XX minutes. Interval for logging sensor readings. Log file with values is e-mailed every X hours. www.HW-group.com...

  • Page 41: Flash Menu: Sensors

    Poseidon 2250 – Short Manual HW group Flash menu: Sensors When out of this Enables sending range, e-mail or SMS e-mail or SMS or SNMP Unique sensor ID is sent. Trap because of this sensor. Name the sensor according to...
  • Page 42 Poseidon 2250 – Short Manual HW group Flash Menu: Inputs & Outputs www.HW-group.com 42 / 54...

  • Page 43: Flash Menu: System

    Poseidon 2250 – Short Manual HW group Flash menu: System Set virtual input “Communication monitor” if there is no communication longer than xx on this protocol Stores device configuration to a XML file on your PC. Loads configuration from a XML file on your PC to the device.

  • Page 44: Updating Firmware

    Poseidon 2250 – Short Manual HW group Updating Firmware Updating firmware over the Web http://x.x.x.x/upload/. Upload the firmware in a .hwg file over http to Connection problems etc. must be avoided during file transfer. If the update fails, upload the firmware over RS-232.

  • Page 45: Sensors And Accessories

    Poseidon 2250 – Short Manual HW group Sensors and accessories Accessories T-Box2 T-Box RJ11 B-Cable Poseidon S-Hub 600 280 600 356 600 044 600 041 T-Box2 GSM Modemcom G10 12V power adapter 3pin ATX Spider 600 280 600 312 600 079 600 273 www.HW-group.com...

  • Page 46: Temperature Sensors

    Poseidon 2250 – Short Manual HW group Temperature sensors 1W bus (1-Wire RJ11) Several sensors with a single Poseidon: Use a T-Box / T-Box2 hub Daisy-chain the sensors (if they have two RJ11 jacks) Maximum total wiring length is 10 / 30m.

  • Page 47: Industrial Bus (Rs-485 Rj45)

    Poseidon 2250 – Short Manual HW group Industrial bus (RS-485 RJ45) Several sensors with a single Poseidon: Use an S-Hub Daisy-chain the sensors Use the Spider converter to connect four 1Wire sensors / dry contacts Maximum total wiring length is 1000m.

  • Page 48: Humidity Sensors

    Poseidon 2250 – Short Manual HW group Humidity sensors 1W bus (1-Wire RJ11) Several sensors with a single Poseidon: Use a T-Box / T-Box2 hub Daisy-chain the sensors (if they have two RJ11 jacks) Maximum total wiring length is 10 / 30m.

  • Page 49: Voltage And Current Sensors

    Poseidon 2250 – Short Manual HW group Voltage and current sensors 1-Wire UNI (RJ11) 30A Current probe 1W-UNI 600 437 – Current probe with a clamp-on transformer Sens-1W-UDI86 600 432 – Eight analog inputs (0..15V) and six dry contact inputs...

  • Page 50: Special Accessories

    Poseidon 2250 – Short Manual HW group “On/Off” sensors Dry Contact inputs Connect directly to the Poseidon unit to one of its input terminals. See the sensor documentation for details. AirFlow sensor 5101 Door Contact Flood detector 600 304 600 119...

  • Page 51: Connectors And Connections

    Poseidon 2250 – Short Manual HW group Connectors and connections Port 3 – RS-232 – DB9M Not used 2 RxD <-- Receive Data DIP1 = on 3 TxD --> Transmit Data Serial setup 4 DTR --> Data Terminal Ready 5 GND --- System Ground DIP3 = on 6 DSR <-- Data Set Ready...

  • Page 52: Connecting Certain Sensors

    Poseidon 2250 – Short Manual HW group Industrial Bus (RS-485) connections Connecting the 4-terminal block to the RJ45 jack Connecting certain sensors Pt100 & Pt1000 wiring methods (5+6) – green + blue/white (8) - brown (7) – brown/white (4+3) – blue + green/white...
  • Page 53 Poseidon 2250 – Short Manual HW group Temp-485 and HTemp-485 address configuration (RS-485) A4 A3 A2 A1 A0 Address A4 A3 A2 A1 A0 Address A4 A3 A2 A1 A0 Address X X X X X X O X O O...
  • Page 54 Poseidon 2250 – Short Manual HW group Connecting supplied accessories Connecting the optical smoke detector The relay output connects to the dry contact inputs. Power can be supplied with any polarity. Power can be shared with the Poseidon unit. www.HW-group.com...
