HW Group Poseidon 3266 Quick Start Manual

Poseidon 3266 – starting guide

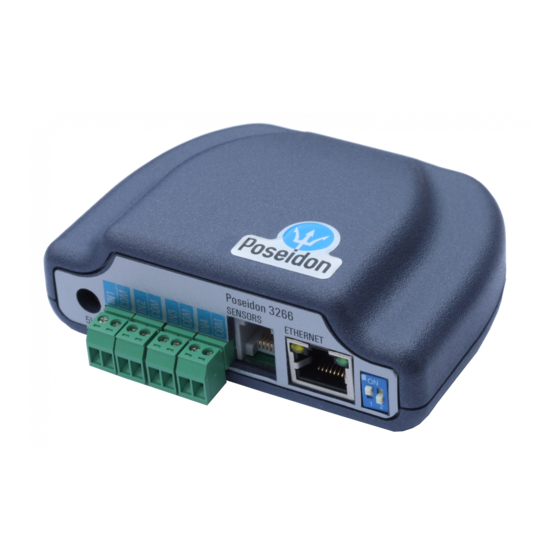

Poseidon 3266
Starting Guide - Poseidon 3266
First steps for measuring temperature with Poseidon

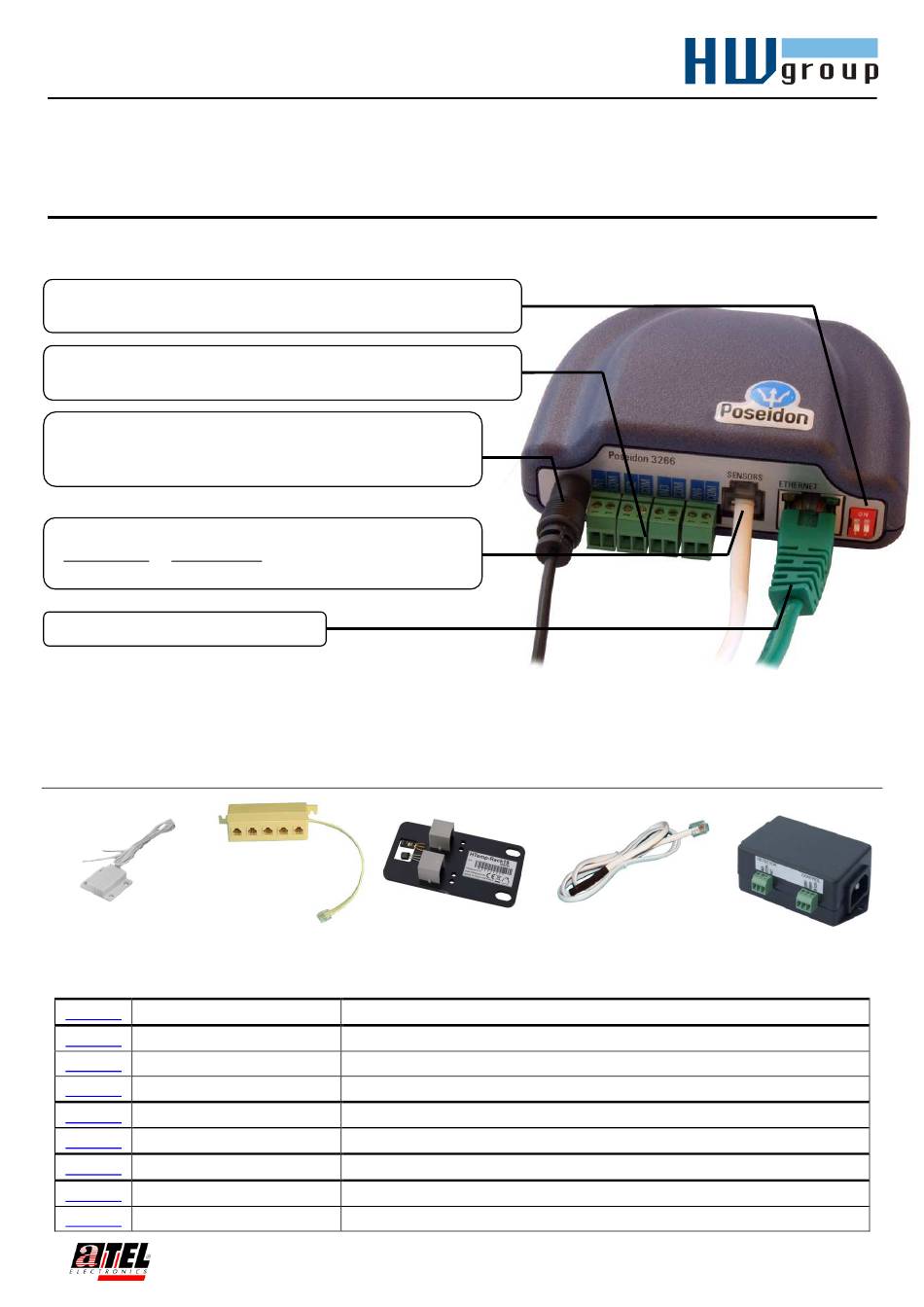

1) Connecting Poseidon 3266
1.1) Check DIP switches. For installation, set them as shown in
the picture on the right (DIP1=Off, DIP2=Off).
1.2) Dry contact inputs for connecting contacts. For sensors with
Dry Contact outputs (buttons, relay contacts, door contacts)
1.3) Connect power adapter to an outlet (230 / 110V) and

to the Poseidon power connector.
The connector must be plugged in fully, green LED lights
up.
1.4) Connect temperature or humidity sensor to IT bus
(Temp-1Wire or Humid-1Wire - RJ12 connector), the
connector must click-in.

1.5) Connect Poseidon to Ethernet
•
Green POWER LED on RJ45 connector lights up – power supply is OK
•
Yellow LED on the RJ45 connector blinks – connection to 10 Mbit network is OK
Accessories
Door Contact
600 119
600 005 Temp-1Wire 3m
600 311 Temp-1Wire-Outdoor 3m
600 330 HTemp-Rack19
600 279 Humid-1Wire 3m
Poseidon T-Box
600 040
Poseidon T-Box2
600 280
600 119 Door Contact
600 239 Gas Leak Detector
600 240 PowerEgg
Oficjalny dystrybutor:
ATEL ELECTRONICS
Poseidon T-Box HTemp-Rack19
600 040
Temperature sensor, 3m cable (1m = 600 242 , 10m = 600 056)
Temperature sensor for outdoor use, food-safe steel, 3m cable
Temp & humidity sensor, installs into a RACK as a 1U device
Humidity sensor, 3m cable (1m = 600 278)
Hub to connect up to 5 sensors, 10cm cable
Hub to connect 2 sensors, 3m cable
Door contact to detect open door, connects to a Dry Contact input (I1..I4)
Flammable gas detector, connects to a Dry Contact input (I1..I4)
Voltage detector, 110/230V (connects to I1..I4 on the Poseidon)
www.atel.com.pl
e-mail: cust@atel.com.pl
Temp-1Wire 1m
600 330 600 242
45-231 Opole
ul. Oleska 121
HW group
PowerEgg
600 237
tel. +48 (77) 455 60 76
fax. +48 (77) 455 80 56
