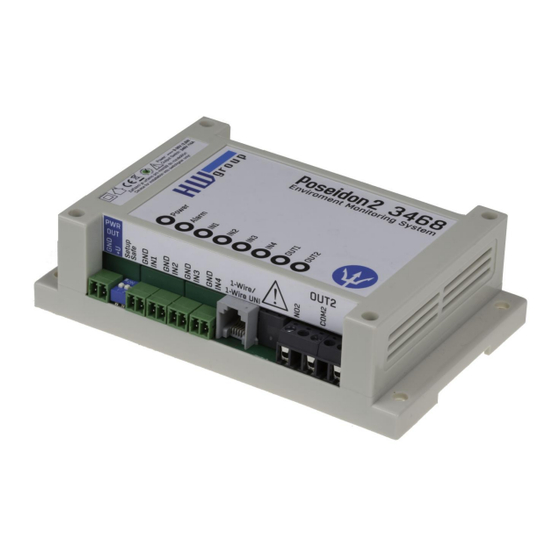

Poseidon2 3468
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Poseidon2 3468 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HW Group Poseidon2 3468

Summary of Contents for HW Group Poseidon2 3468

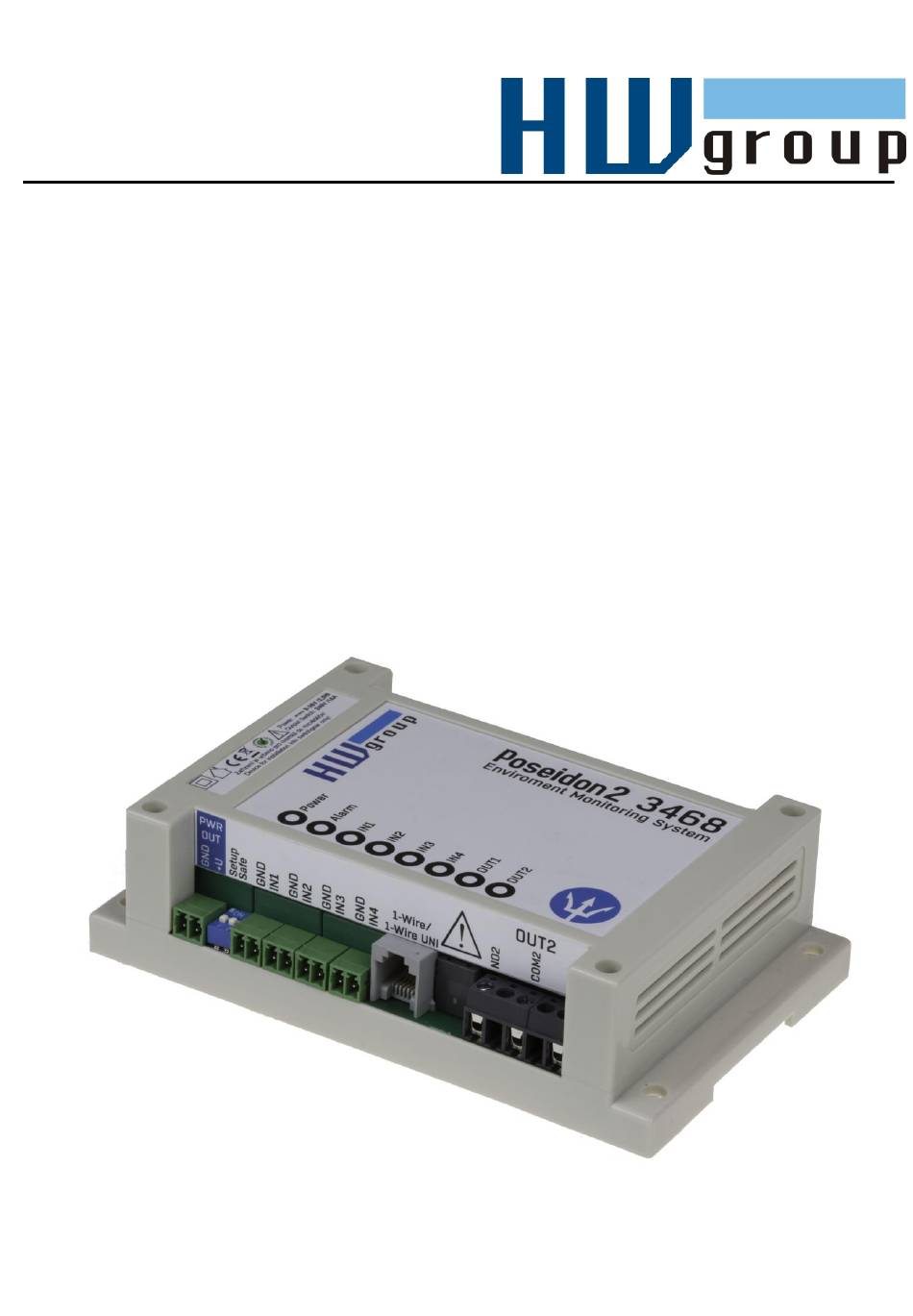

  • Page 1 Poseidon2 3468 MANUAL...
  • Page 2 Poseidon2 3468 – Manual HW group www.HW-group.com...

  • Page 3: Package Contents

    Poseidon2 3468 – Manual HW group Package contents A complete shipment contains the following items:  Poseidon2 3468  Printed manual + datasheet Safety information The device complies with regulations and industrial standards in force in the Czech Republic and the European Union.
  • Page 4 Poseidon2 3468 – Manual HW group www.HW-group.com...

  • Page 5: Configuring The Ip Address - Udp Config

    Poseidon2 3468 – Manual HW group First steps 1) Connecting the cables  Turn the unit upside down and write down its MAC address Poseidon2 3468 that is printed on the label.  Set the switches: DIP1=Off, DIP2=Off.  Connect the unit to the Ethernet (with a patch cable to a switch, cross-over cable to a PC), RJ-45 port.

  • Page 6: First Steps

    Poseidon2 3468 – Manual HW group First steps Configure the network parameters  IP address / HTTP port (80 by default)  Network mask  Gateway IP address for your network  Device name (optional) Click the Apply Changes button to save the settings.

  • Page 7: Web Interface Of The Device

    Poseidon2 3468 – Manual HW group First steps 4) WWW interface of the device  To open the WWW interface of the device: Enter the IP address into a web browser Click the IP address in UDP Config Click the underlined IP address in the UDP SETUP utility ...
  • Page 8 Poseidon2 3468 – Manual HW group E-mail Inserts the specified text at the beginning of the e-mail subject line Sends a test e-mail and shows the connection log Periodic Status Settings  Periodical Status When on, sends an e-mail with device status at the specified intervals. For example every 24 hours (1440 minutes).

  • Page 9: Log & Time

    Poseidon2 3468 – Manual HW group IP address of „HWg-SMS-GW“ to use for sending text messages (SMS) Recipients' phone no’s Log & Time Press to synchronize the time with the specified server www.HW-group.com...
  • Page 10 Poseidon2 3468 – Manual HW group Sensors Scans connected sensors and displays detected sensors Sensor name will be shown Sends a SNMP trap if the “Safe in e-mails, text messages, Range” for this sensor is exceeded and SNMP traps Sends an E-mail if the “Safe Range”...

  • Page 11: Connecting The Inputs

    Poseidon2 3468 – Manual HW group Inputs Enter sensor name – will be ALARM CONTACT STATUS: Reaction to digital inputs: shown in e-mails, text  Disabled  Active if On messages or SNMP traps  Send a SNMP Trap Alarm when the contact closes (1 = On) ...
  • Page 12 Poseidon2 3468 – Manual HW group Outputs Choose the output mode Manual mode: Local Condition mode: Output controlled over the WEB Controls the output according to or M2M protocols the specified sensor Output mode: Manual Output can be controlled using the Web interface or externally using M2M protocols.

  • Page 13: Software Applications

    Poseidon2 3468 – Manual HW group Software Applications HWg-PDMS Windows application that logs data from all HW group devices into its internal database. The application runs in the background (NTservice). Data are received from the device over http or e-mail.
  • Page 14 Poseidon2 3468 – Manual HW group PosDamIO Poseidon Damocles I/O is a command-line utility for Windows and Linux that lets you control Poseidon and Damocles units over the XML interface. It can display the states of sensors, inputs and outputs, as well as set an output high or low.

  • Page 15: Mechanical Dimensions

    Poseidon2 3468 – Manual HW group Mechanical dimensions Power output Poseidon2 3468 features the PWR OUT terminals for powering connected sensors and detectors.  Powered by 9–30V: PWR OUT = 9–30V  Powered by 48V: PWR OUT = 12V www.HW-group.com...

  • Page 16: Specifications

    Poseidon2 3468 – Manual HW group Specifications ETHERNET RJ45 (100BASE-Tx) – 10/100 Mbps network compatible Interface Supported protocols IP: ARP, TCP/IP (HTTP, NTP, SMTP, netGSM, HWg-PUSH), UDP/IP (SNMP) SNMP compatibility Ver.1.00 compatible, partial ver.2.0 implementation Logger Internal memory 250,000 records in flash memory...

  • Page 17: Relay Outputs

    Poseidon2 3468 – Manual HW group Relay outputs POWER OUT NO NC  NO and NC labels apply to Off (0) state, or device turned off When the output is On (1), a “Normally Open” (NO) relay contact is closed ...
  • Page 18 Poseidon2 3468 – Manual HW group M2M interface The product is ready to be connected with third-party SW applications. For a description of the interfaces (XML format, detailed SNMP description, mapping of Modbus/TCP variables), see the detailed “Poseidon family” manual.

  • Page 19: Restoring Factory Defaults

    Poseidon2 3468 – Manual HW group Updating the firmware over the WEB http://x.x.x.x/upload/ Upload the .hwg firmware file over http to Connection problems etc. must be avoided during file transfer. If the update fails, upload the firmware over RS-232. Firmware in the .HWg format is available at our website, or on the supplied CD.
  • Page 20 Poseidon2 3468 – Manual HW group Contact HW group s.r.o Rumunská 26 / 122 Praha 2, 120 00 Czech republic Tel. +420 222 511 918 Fax. +420 222 513 833 http://www.HW-group.com www.HW-group.com...
