Poseidon 1250 Tset
Poseidon 1250 Tset

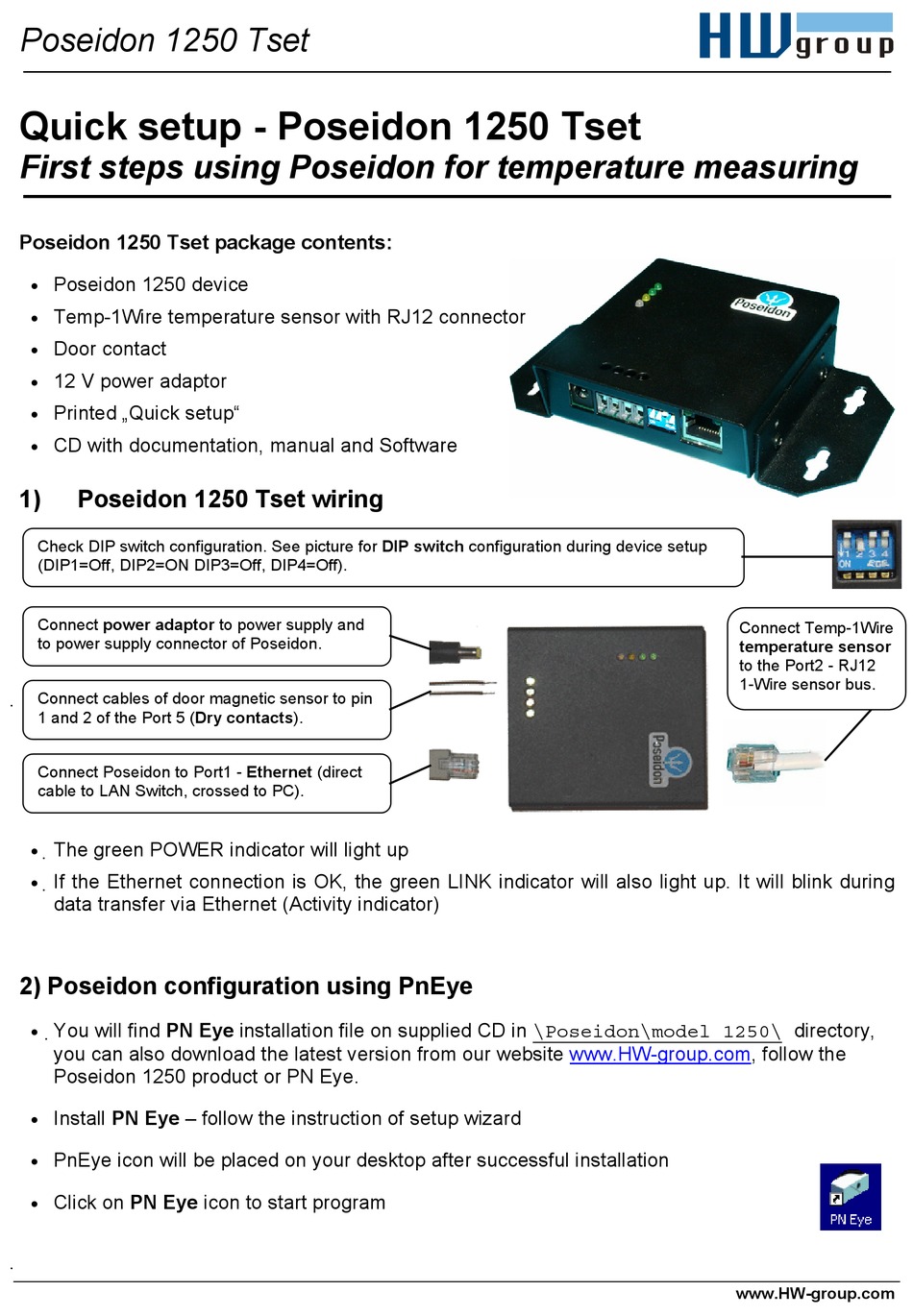

Quick setup - Poseidon 1250 Tset
First steps using Poseidon for temperature measuring
Poseidon 1250 Tset package contents:
Poseidon 1250 device
•
Temp-1Wire temperature sensor with RJ12 connector
•
Door contact
•
12 V power adaptor
•
Printed „Quick setup"
•
CD with documentation, manual and Software
•
1)
Poseidon 1250 Tset wiring
Check DIP switch configuration. See picture for DIP switch configuration during device setup
(DIP1=Off, DIP2=ON DIP3=Off, DIP4=Off).
Connect power adaptor to power supply and
to power supply connector of Poseidon.
Connect cables of door magnetic sensor to pin
1 and 2 of the Port 5 (Dry contacts).
Connect Poseidon to Port1 - Ethernet (direct
cable to LAN Switch, crossed to PC).
T he green POWER indicator will light up
•
I f the Ethernet connection is OK, the green LINK indicator will also light up. It will blink during
•
data transfer via Ethernet (Activity indicator)
Y ou will find PN Eye installation file on supplied CD in \Poseidon\model 1250\ directory,
•
you can also download the latest version from our website www.HW-group.com, follow the
Poseidon 1250 product or PN Eye.
Install PN Eye – follow the instruction of setup wizard
•
PnEye icon will be placed on your desktop after successful installation
•
Click on PN Eye icon to start program
•
HW group
Connect Temp-1Wire
temperature sensor
to the Port2 - RJ12
1-Wire sensor bus.
www.HW-group.com
