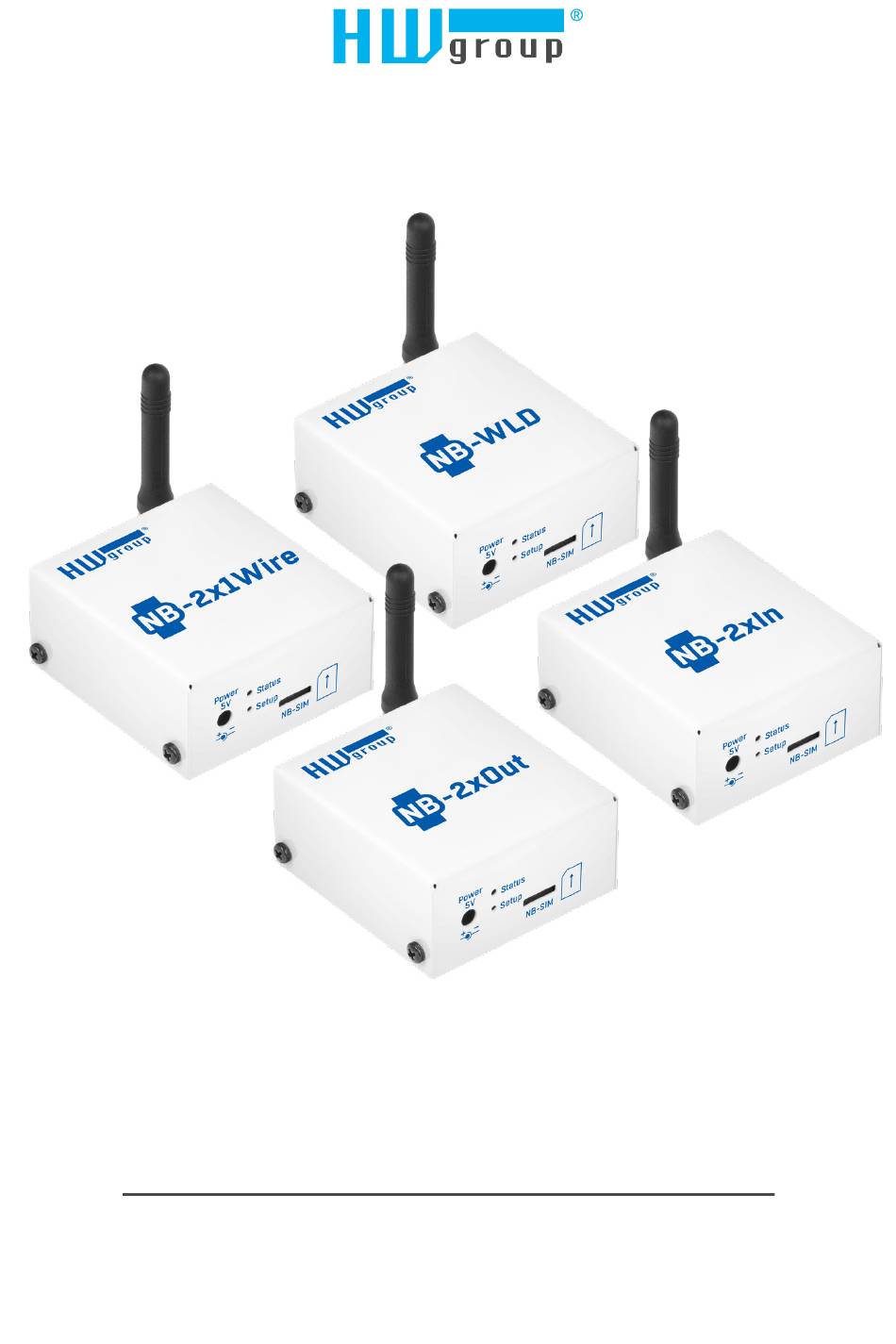

- Page 1 Manual for NB-xxx devices NB-IoT devices communicate via the Narrow Band network only. Devices are delivered with a prepaid sim card.
- Page 2 The manufacturer warrants the device only if it is powered by the supplied power adapter or an approved power supply. If you have any problems with installing or operating the device, please contact the technical support: HW group s. r. o. http://www.hw-group.com email: support@HWg.cz Formanská 296...
-
Page 3: Table Of Contents
Table of Contents NB-xxx devices product family NB-2x1Wire NB-WLD NB-2xIn NB-2xOut Shared features of the NB-IoT product family Measurements and data upload Description of HW elements Setting up the device Migration of connected device Portals where devices can be connected SensDesk.com portal features NB-Devices models and their specific features NB-2x1Wire... -
Page 4: Nb-Xxx Devices Product Family
/ gas detector with a relay over the NB-IoT network. output). Allows connecting 2 independent detectors. Each DI input can feature pulse counters for connecting energy meters with S0 output; however, external power is needed for reliable deployment. HW group NB-xxx devices product family... -
Page 5: Shared Features Of The Nb-Iot Product Family
Shared features of the NB-IoT product family • Robust metal design, 67 × 78 × 33 mm (without antenna) • External antenna, SMA connector • 4FF (nano SIM) holder • LED indicator • Plug & Play – connect power or remove the insulating strip and the device is immediately available in the portal •... - Page 6 If a Delay is set together with the SafeRange, the repeated measurement is performed at the next Logging period, and an Alarm is raised only if the repeated measurement is also out of the SafeRange. HW group NB-xxx devices product family...
- Page 7 Hysteresis / Idle range (sensor value) The Hysteresis setting defines a tolerance range for suppressing alarm alerts. The function prevents multiple alarm alerts (too many emails or SMS from the portal) if the reading oscillates around the specified threshold. The hysteresis is configured independently for each sensor. T[°C] Hysteresis Temperature range: -15 ..
-
Page 8: Description Of Hw Elements
(www.SensDesk.com device to this one account. (See page 10) 7) Define sensor name & SD SafeRange for each sensor. (See page 12) HW group Description of HW elements / Setting up the device... - Page 9 6a) Adopt a new device to HWg-cloud.com www.HWg-cloud.com website, log in to your account and go to the My Team page. Open the Scroll down to the Device Adoption. Fill in the device hash (1234-5678 number on the label of the physical device). The device will appear after some time in the devices: NB - Devices Setting up the device...
- Page 10 6b) Migrate new device from HWg-cloud.com to another portal www.HWg-cloud.com website, do not log in, click to Set Device button on the top of the Open the page. Fill in the device hash (1234-5678 number is on the label of physical device). HW group Setting up the device...
- Page 11 For Team login & Team password put data from the SensDesk technology based portal, where you have the account. You will find them on the Team page. After you click the Save button on the web page, take a pencil tip or other tool and briefly press the Setup button on the device.
- Page 12 7) Define sensor name & SD SafeRange for each sensor Part of the device installation is to define sensor name & SD SafeRange for each sensor. Define SD SafeRange to significantly speed-up alerts when sensor value exceeds the SafeRange limit. HW group Setting up the device...
-
Page 13: Migration Of Connected Device
Migration of connected device A connected and working device can also be easily migrated from one portal to another. For example in this case from the paid portal www.SensDesk.com to the free www.HWg-cloud.com. Fill in the Team login and Team password, choose the right SensDesk technology based portal. NB - Devices Migration of connected device... - Page 14 Setup button on the device. It will start blinking (communication with the portal) and finalize the device migration process. The device will appear on the target portal. Only sensor names will be transferred between the portal. You will lose the device configuration and data history! HW group Migration of connected device...
-
Page 15: Portals Where Devices Can Be Connected
Portals where devices can be connected NB Devices have to be connected to online Portal based on SensDesk technology. www.HWg-cloud.com is free portal provided by the manufacturer with limited functions. www.SensDesk.com is paid portal provided by the manufacturer. 3) Portal providers are independent companies running their own compatible portals. A list of them can be found on the main page of www.HWg-cloud.com. -
Page 16: Sensdesk.com Portal Features
SensDesk.com portal features Graphs of values SMS & Voice call alerts Enable Voice call in SMS settings HW group SensDesk.com portal features... - Page 17 Multigraph of several values NB - Devices SensDesk.com portal features...
- Page 18 Other features & PDF reports Open API (SNMP & XML) HW group SensDesk.com portal features...
-
Page 19: Nb-Devices Models And Their Specific Features
What can be connected 2 ports for external sensors. Up to 4 sensor values in total. Sensor types Only sensors by HW group s. r. o. Sensors / distance 4 values, max. 2 probes per port (max. 60 m total length per port) Alarm LED Alarm Port1 –... -
Page 20: Nb-2Xin
The default mode is the counter mode (i.e. Alarm level = Not defined). When DI input is activated (=1 / contact closed) and the device is powered from an external adapter, the respective green LED lights up. The LEDs are inactive on battery power. HW group NB-Devices models and their specific features... -
Page 21: Nb-2Xout
DI – Dry Contact Inputs Port / connector I1, I2 / terminal block ø 2 mm Type Digital Input (supports NO/NC Dry contact) 1 (On) = 0 – 500 Ω Sensitivity Max. distance Up to 10 m Counter sensitivity 20 ms 2×... -
Page 22: Nb-Wld
Max. 60 m in total (WLD sensing cable + prolong cable) Cable extension May be extended by AWG 24 cable to max length. 1× red – flooded or cable disconnected – on external power only HW group NB-Devices models and their specific features... -
Page 23: Technical Specifications For All Models
Technical specifications for all models NarrowBand Supported bands B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B17 / B18 / B19 / B20 / B25 / B26* / B28 / B66 Carrier: Vodafone (Global) Deutsche Telekom / Telefónica* (Europe) AT&T / T-Mobile / Verizon* / Sprint* (North America) -
Page 24: Mechanical Dimensions
Mechanical dimensions 53,5 mm 62,3 mm Power Status Setup NB-SIM 67,3 mm HW group Mechanical dimensions... - Page 25 More monitoring devices by HW group Poseidon2 Poseidon2 4002 3468 Designed for demanding monitoring Remote monitoring of temperature, humidity applications, such as in data centers and and other sensors. Industrial version. industrial settings. Poseidon2 Ares 3266/3268 10/12 Basic unit for monitoring temperature, Remote environment monitoring at any place humidity, and other sensors over the network.
- Page 26 (how many SMSs, PDFs, ...) not device limits only. • Based on SensDesk technology. • Any subscription plan can be ordered with a 1 year voucher. HW group s. r. o. Rumunská 26/122 Prague, 120 00 Czech Republic Phone: +420 222 511 918 Fax: +420 222 513 833...
