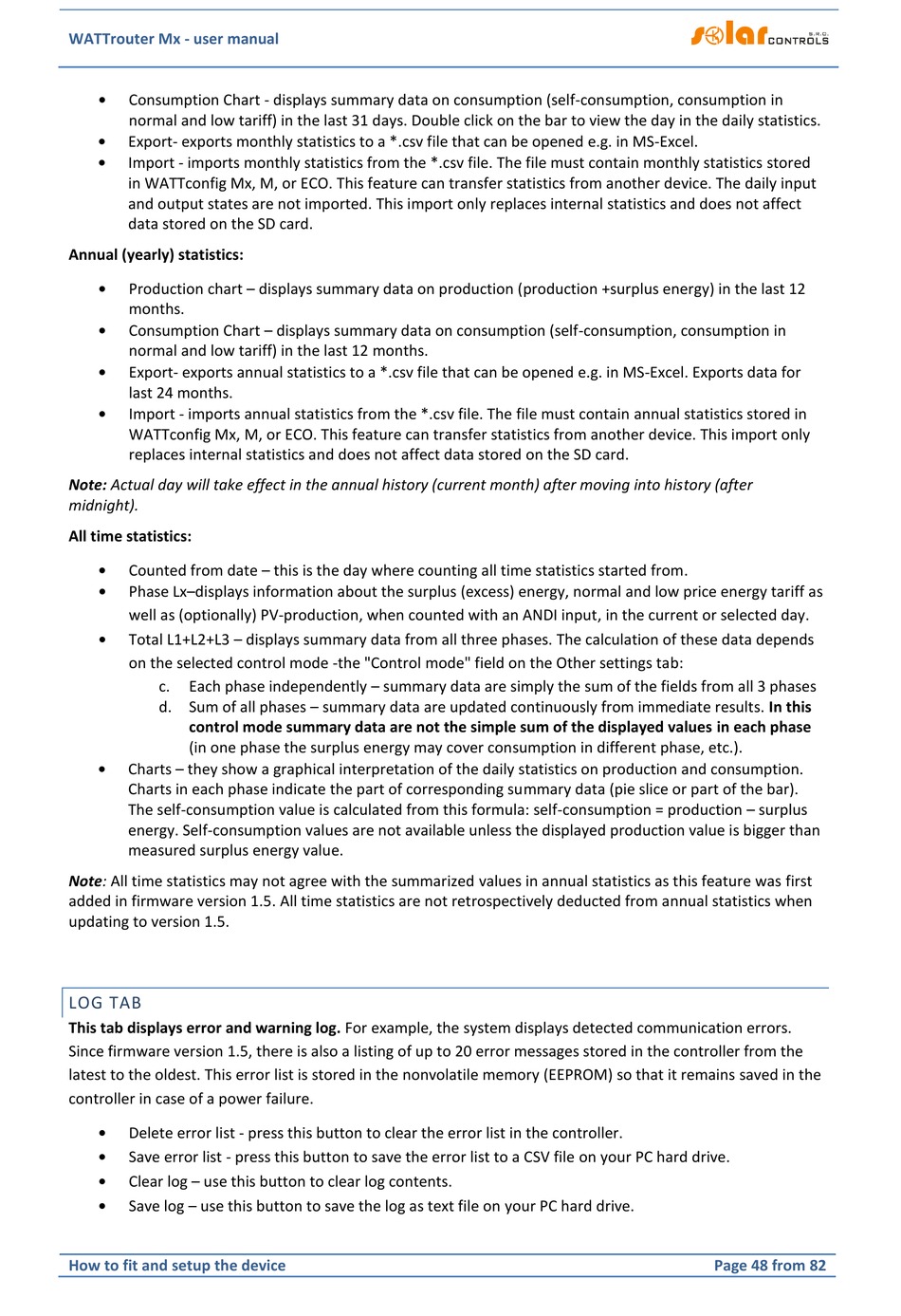

Consumption Chart - displays summary data on consumption (self-consumption, consumption in
normal and low tariff) in the last 31 days. Double click on the bar to view the day in the daily statistics.

Export- exports monthly statistics to a *.csv file that can be opened e.g. in MS-Excel.

Import - imports monthly statistics from the *.csv file. The file must contain monthly statistics stored
in WATTconfig Mx, M, or ECO. This feature can transfer statistics from another device. The daily input
and output states are not imported. This import only replaces internal statistics and does not affect
data stored on the SD card.
Annual (yearly) statistics:

Production chart – displays summary data on production (production +surplus energy) in the last 12
months.

Consumption Chart – displays summary data on consumption (self-consumption, consumption in
normal and low tariff) in the last 12 months.

Export- exports annual statistics to a *.csv file that can be opened e.g. in MS-Excel. Exports data for
last 24 months.

Import - imports annual statistics from the *.csv file. The file must contain annual statistics stored in
WATTconfig Mx, M, or ECO. This feature can transfer statistics from another device. This import only
replaces internal statistics and does not affect data stored on the SD card.
Note: Actual day will take effect in the annual history (current month) after moving into history (after
midnight).
All time statistics:

Counted from date – this is the day where counting all time statistics started from.

Phase Lx–displays information about the surplus (excess) energy, normal and low price energy tariff as
well as (optionally) PV-production, when counted with an ANDI input, in the current or selected day.

Total L1+L2+L3 – displays summary data from all three phases. The calculation of these data depends
on the selected control mode -the "Control mode" field on the Other settings tab:
c. Each phase independently – summary data are simply the sum of the fields from all 3 phases
d. Sum of all phases – summary data are updated continuously from immediate results. In this
control mode summary data are not the simple sum of the displayed values in each phase
(in one phase the surplus energy may cover consumption in different phase, etc.).

Charts – they show a graphical interpretation of the daily statistics on production and consumption.
Charts in each phase indicate the part of corresponding summary data (pie slice or part of the bar).
The self-consumption value is calculated from this formula: self-consumption = production – surplus
energy. Self-consumption values are not available unless the displayed production value is bigger than
measured surplus energy value.
Note: All time statistics may not agree with the summarized values in annual statistics as this feature was first
added in firmware version 1.5. All time statistics are not retrospectively deducted from annual statistics when
updating to version 1.5.

LOG TAB

This tab displays error and warning log. For example, the system displays detected communication errors.
Since firmware version 1.5, there is also a listing of up to 20 error messages stored in the controller from the
latest to the oldest. This error list is stored in the nonvolatile memory (EEPROM) so that it remains saved in the
controller in case of a power failure.

Delete error list - press this button to clear the error list in the controller.

Save error list - press this button to save the error list to a CSV file on your PC hard drive.

Clear log – use this button to clear log contents.

Save log – use this button to save the log as text file on your PC hard drive.
