USB – communication light - USB interface (yellow)

ERR – error status light (red)

S1– external output for SSR 1 - activity indication light

S2– external output for SSR 2 - activity indication light

S3– external output for SSR 3 - activity indication light

S4– external output for SSR 4 - activity indication light

S5– external output for SSR 5 - activity indication light

S6– external output for SSR 6 - activity indication light

R1– relay output No. 1 - activity indication light

R2– relay output No. 2 - activity indication light

RJ45 connector – Ethernet connection indication light (left yellow LED – carrier frequency, right green
LED - connection speed)

Wireless PWR – SC-Gateway power LED (optional accessories)

Wireless LINK – SC-Gateway link LED (optional accessories)
Other connectors:

Micro SD – slot with integrated MicroSD card

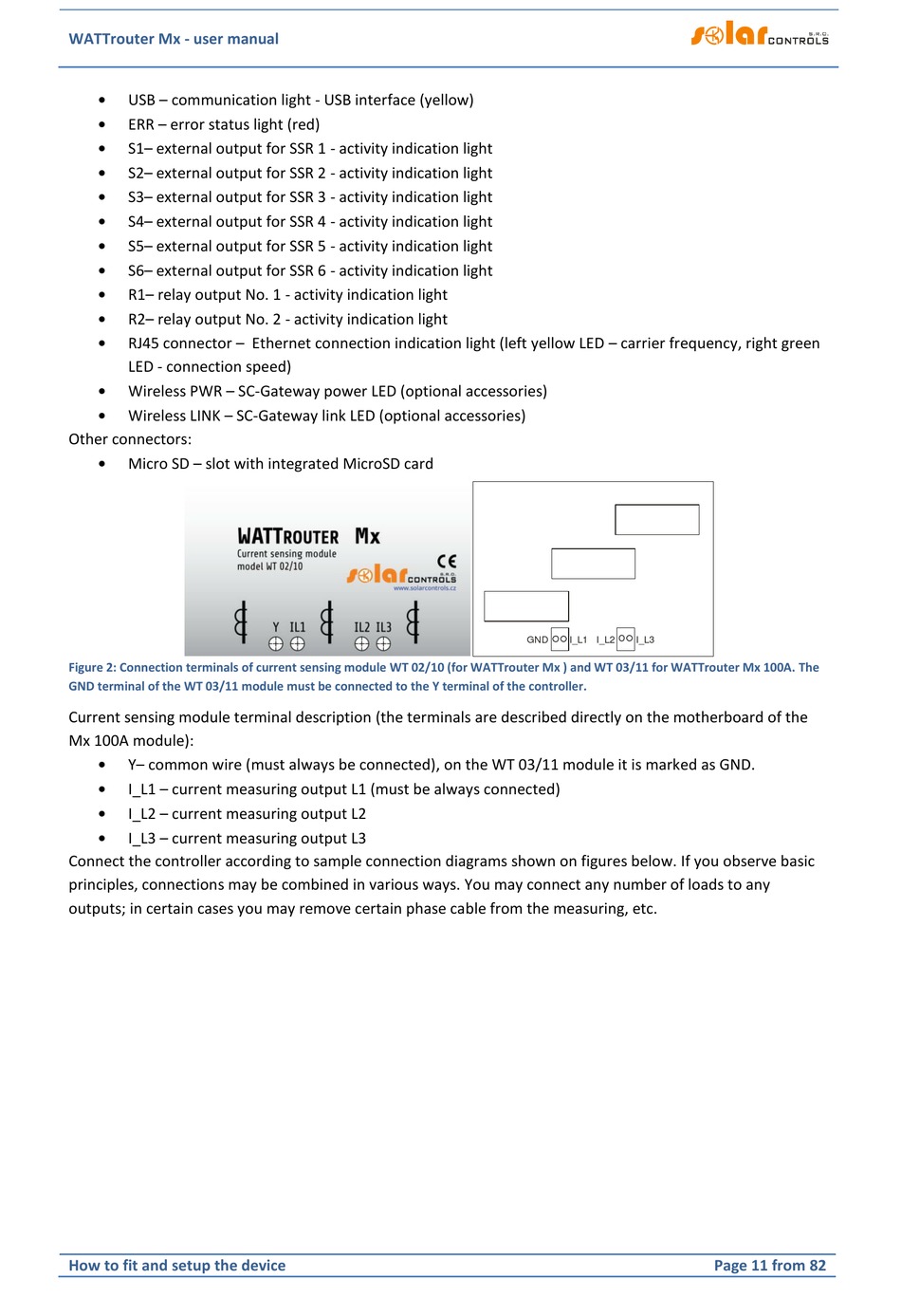

Figure 2: Connection terminals of current sensing module WT 02/10 (for WATTrouter Mx ) and WT 03/11 for WATTrouter Mx 100A. The
GND terminal of the WT 03/11 module must be connected to the Y terminal of the controller.
Current sensing module terminal description (the terminals are described directly on the motherboard of the
Mx 100A module):

Y– common wire (must always be connected), on the WT 03/11 module it is marked as GND.

I_L1 – current measuring output L1 (must be always connected)

I_L2 – current measuring output L2

I_L3 – current measuring output L3
Connect the controller according to sample connection diagrams shown on figures below. If you observe basic
principles, connections may be combined in various ways. You may connect any number of loads to any
outputs; in certain cases you may remove certain phase cable from the measuring, etc.
