Time schedule for boiler is set the same as in example No. 1.

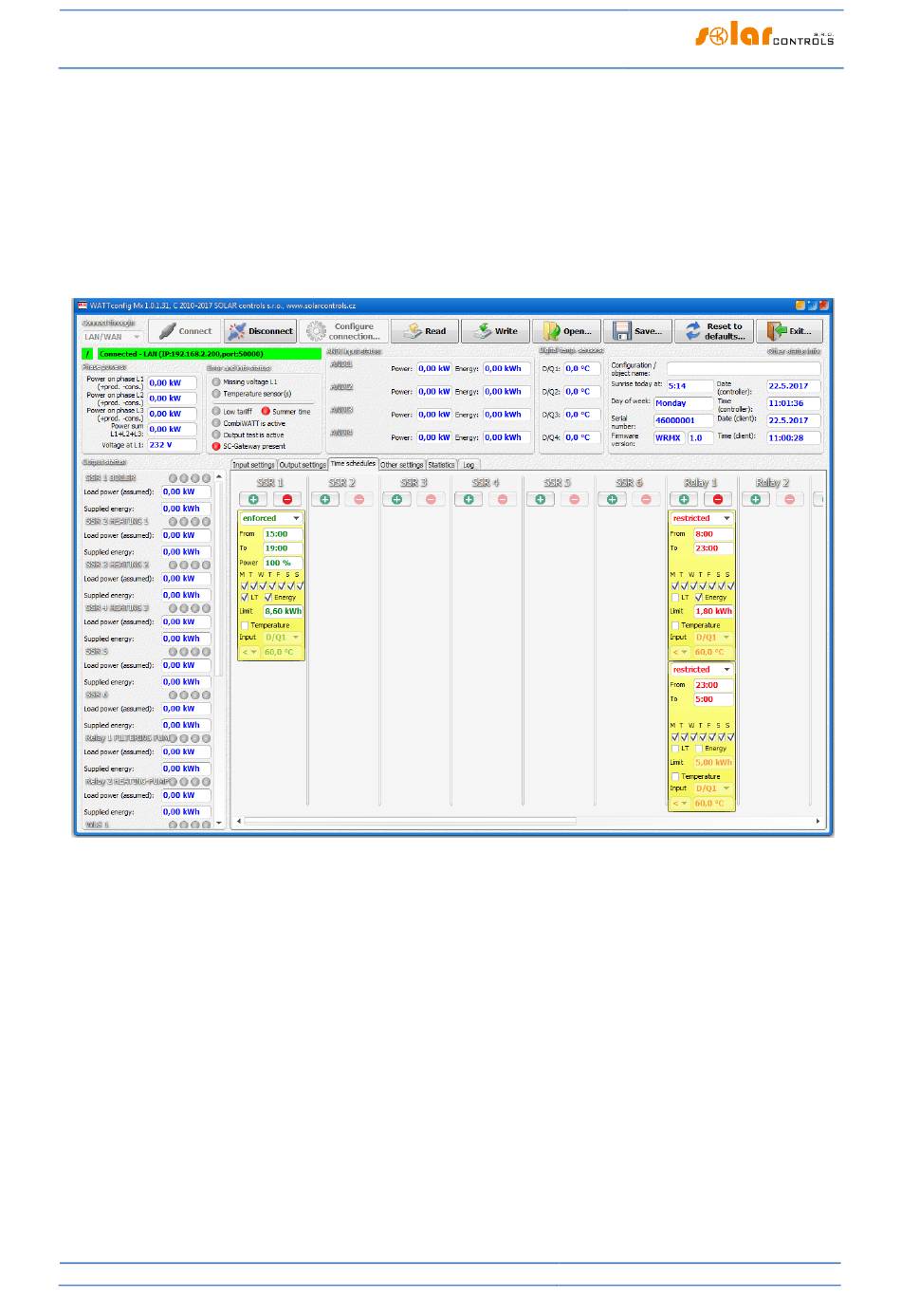

Two time schedules are assigned for pool filtering pump. The first of them describes restriction of the output
during "daytime" between 8:00 and 23:00. This restriction ensures the motor runs approximately 6 hours
(1,8kWh / 0,3kW) and therefore, it applies only if the output energy counter (field Supplied energy) exceeds 1.8
kWh. The second time schedule restricts operation of the motor between 23:00 and 5:00 without any special
requirements or conditions. The necessary prerequisite for correct application of these two time schedules is
correct configuration of daily energy counter reset. As reset mode there must be selected "at sunrise" or "at
fixed time". The fixed time for second case should be selected in the morning before 8:00.
