WATTrouter ECO - user manual

Export- exports yearly statistics to a *.csv file that can be opened e.g. in MS-Excel. Exports data for last
24 months.

Import - imports annual statistics from the *.csv file. The file must contain annual statistics stored in
WATTconfig Mx, M, or ECO. This feature can transfer statistics from another device. This import
replaces internal statistics.
Note: Actual day will take effect in the annual history (current month) after moving into history (after
midnight).

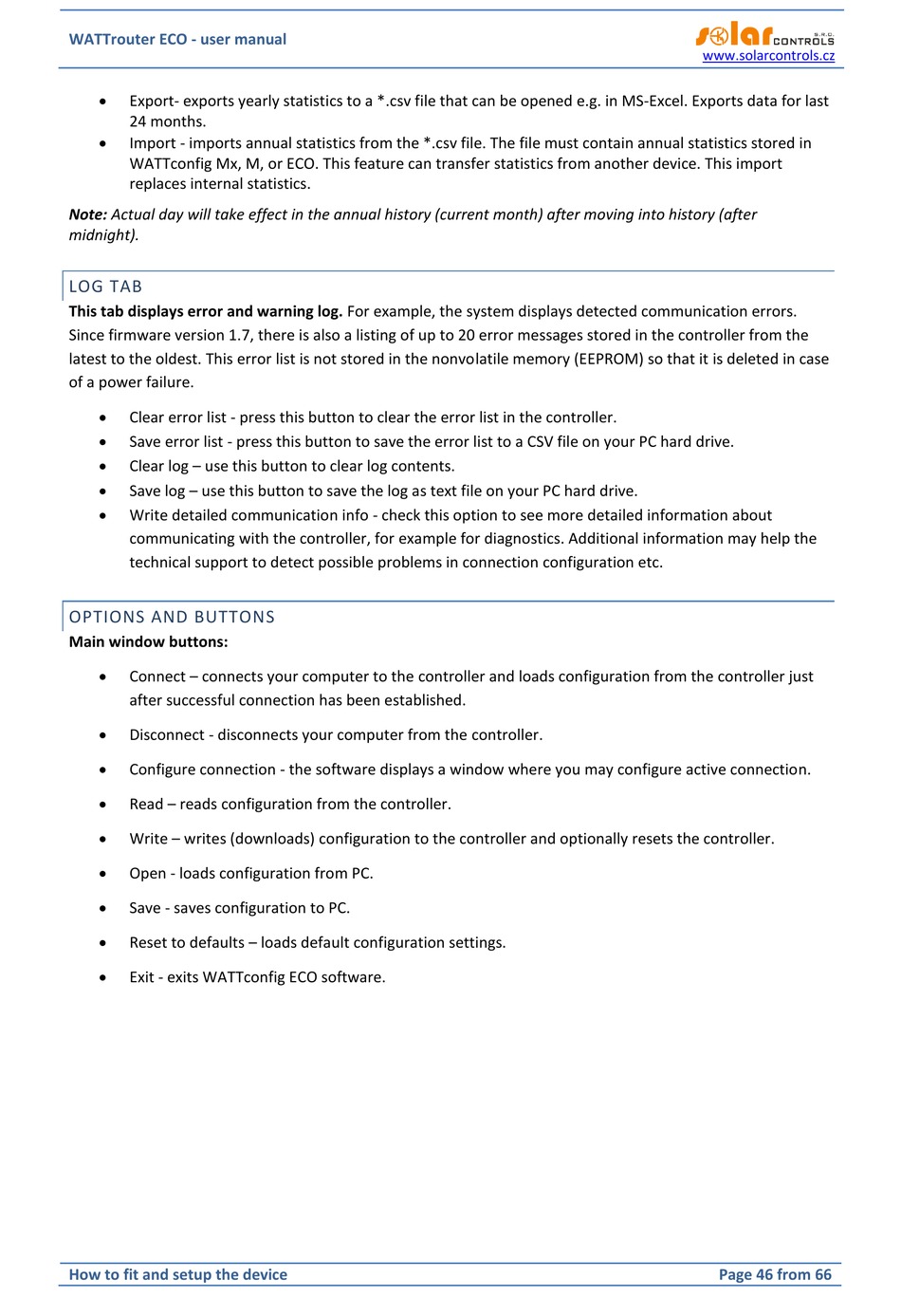

LOG TAB

This tab displays error and warning log. For example, the system displays detected communication errors.
Since firmware version 1.7, there is also a listing of up to 20 error messages stored in the controller from the
latest to the oldest. This error list is not stored in the nonvolatile memory (EEPROM) so that it is deleted in case
of a power failure.

Clear error list - press this button to clear the error list in the controller.

Save error list - press this button to save the error list to a CSV file on your PC hard drive.

Clear log – use this button to clear log contents.

Save log – use this button to save the log as text file on your PC hard drive.

Write detailed communication info - check this option to see more detailed information about
communicating with the controller, for example for diagnostics. Additional information may help the
technical support to detect possible problems in connection configuration etc.

OPTIONS AND BUTTONS

Main window buttons:

Connect – connects your computer to the controller and loads configuration from the controller just
after successful connection has been established.

Disconnect - disconnects your computer from the controller.

Configure connection - the software displays a window where you may configure active connection.

Read – reads configuration from the controller.

Write – writes (downloads) configuration to the controller and optionally resets the controller.

Open - loads configuration from PC.

Save - saves configuration to PC.

Reset to defaults – loads default configuration settings.

Exit - exits WATTconfig ECO software.
How to fit and setup the device
www.solarcontrols.cz
Page 46 from 66
