SOLAR controls WATTrouter Mx series User Manual page 12

WATTrouter Mx - user manual
Wire goes through
current transformer
L1
L2
L3
N
LT (low tariff signal)
PE

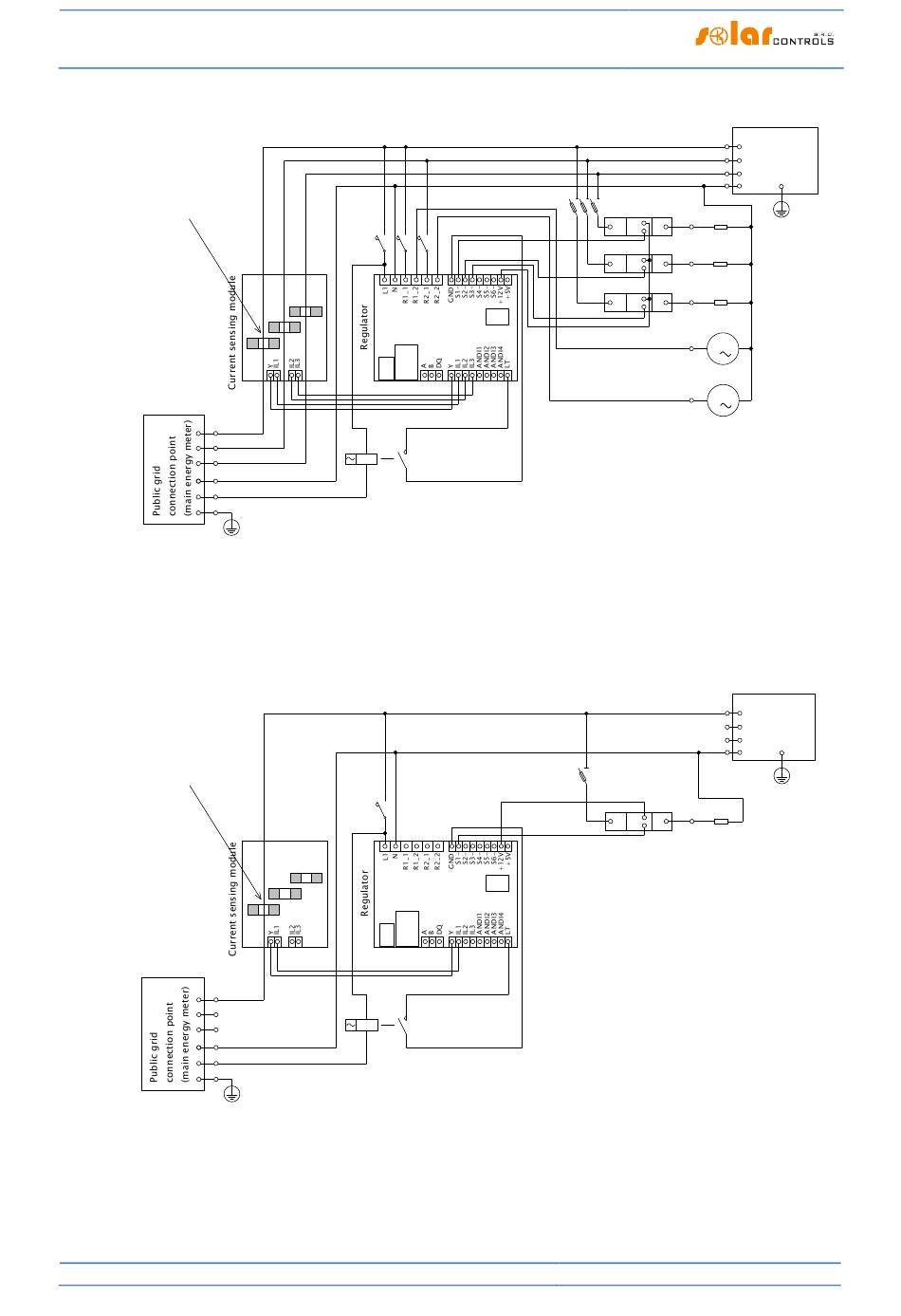

Figure 3: Three-phase connection with low tariff signal circuit for CombiWATT mode, or time schedules. Current sensing module is
placed at the facility's supply cable coming from the distribution box where main energy meter is located. The connected loads use only
real surpluses produced by PV-plant. 5 loads are connected, 3 of them through the recommended SSRs, RGS1A series manufactured by
Carlo Gavazzi.
Wire goes through
current transformer
L1
L2
L3
N
LT (low tariff signal)
PE
Figure 4: Single-phase connection with optional low tariff signal circuit for CombiWATT mode, or time schedules. Current sensing
module is placed at the facility's supply cable coming from the distribution box where main energy meter is located. The connected
loads use only real surpluses produced by PV-plant. Only 1 load is connected through the recommended SSR, RGS1A series
manufactured by Carlo Gavazzi.
How to fit and setup the device
B6A
I > I > I >
micro
SD
RS485
LAN
USB
Relay 230VAC
B6A
I >
micro
SD
RS485
LAN
USB
Relay 230VAC
L1
House wiring
L2
+ PV plant
L3
N
RGS1A60D..
Load 1
A1+
T1
L1
A2-
(only resistive)
RGS1A60D..
Load 2
A1+
T1
L1
A2-
(only resistive)
RGS1A60D..
Load 3
A1+
T1
L1
A2-
(only resistive)
Load 4
M
1
(e.g. motor*)
Load 5
M
1
(e.g. motor*)
*) Always use separated contactor
for motors and loads with cos(φ)<>1!
L1
House wiring
L2
+ PV plant
L3
N
RGS1A60D..
Load 1
A1+
L1 T1
A2-
(only resistive)
Page 12 from 82
PE
PE
