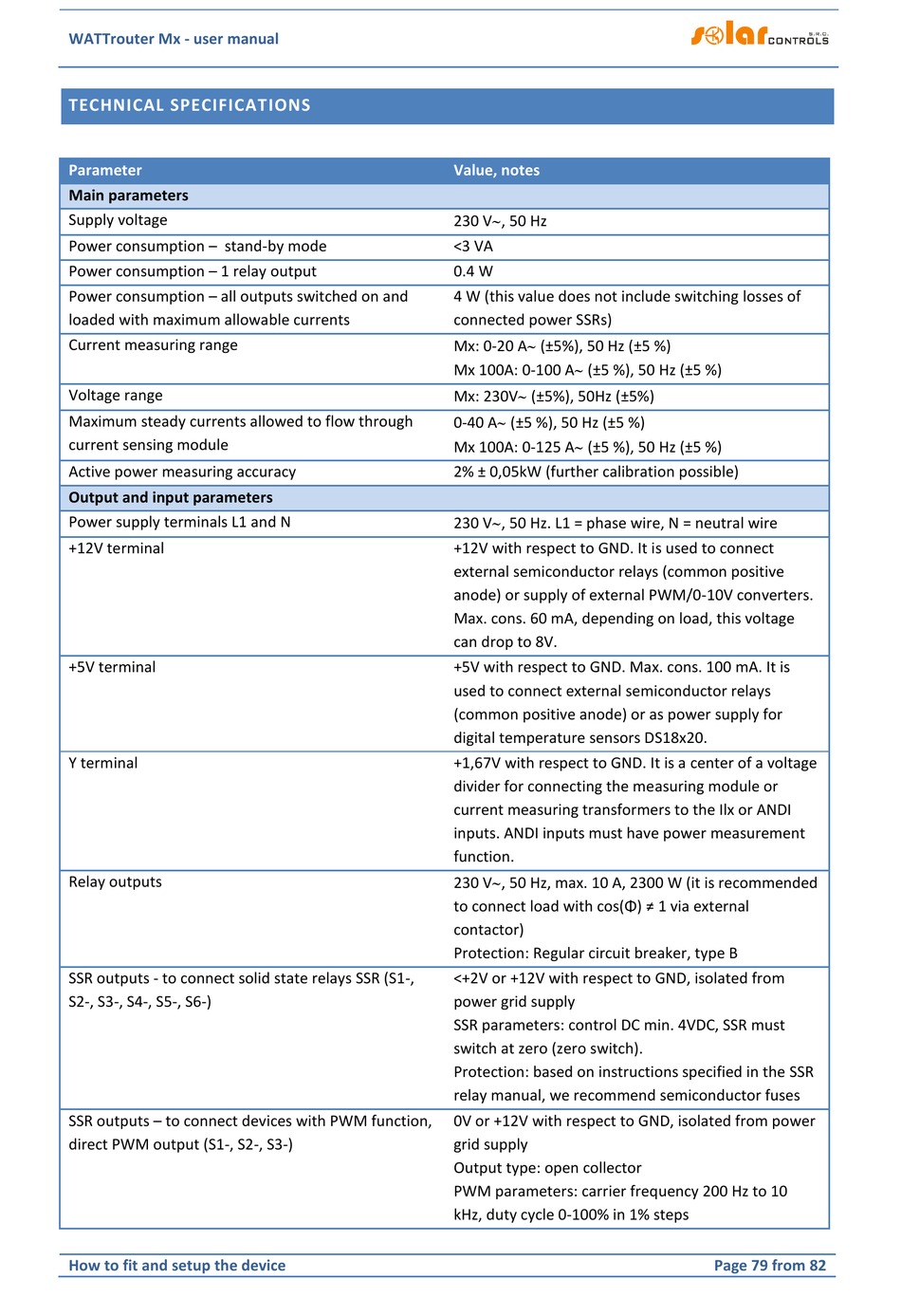

TECHNICAL SPECIFICATIONS

Parameter
Main parameters
Supply voltage
Power consumption – stand-by mode
Power consumption – 1 relay output
Power consumption – all outputs switched on and
loaded with maximum allowable currents
Current measuring range
Voltage range
Maximum steady currents allowed to flow through
current sensing module
Active power measuring accuracy
Output and input parameters
Power supply terminals L1 and N
+12V terminal
+5V terminal
Y terminal
Relay outputs
SSR outputs - to connect solid state relays SSR (S1-,
S2-, S3-, S4-, S5-, S6-)
SSR outputs – to connect devices with PWM function,
direct PWM output (S1-, S2-, S3-)
How to fit and setup the device
Value, notes
230 V, 50 Hz
<3 VA
0.4 W
4 W (this value does not include switching losses of
connected power SSRs)
Mx: 0-20 A (±5%), 50 Hz (±5 %)
Mx 100A: 0-100 A (±5 %), 50 Hz (±5 %)
Mx: 230V (±5%), 50Hz (±5%)
0-40 A (±5 %), 50 Hz (±5 %)
Mx 100A: 0-125 A (±5 %), 50 Hz (±5 %)
2% ± 0,05kW (further calibration possible)
230 V, 50 Hz. L1 = phase wire, N = neutral wire
+12V with respect to GND. It is used to connect
external semiconductor relays (common positive
anode) or supply of external PWM/0-10V converters.
Max. cons. 60 mA, depending on load, this voltage
can drop to 8V.
+5V with respect to GND. Max. cons. 100 mA. It is
used to connect external semiconductor relays
(common positive anode) or as power supply for
digital temperature sensors DS18x20.
+1,67V with respect to GND. It is a center of a voltage
divider for connecting the measuring module or
current measuring transformers to the Ilx or ANDI
inputs. ANDI inputs must have power measurement
function.
230 V, 50 Hz, max. 10 A, 2300 W (it is recommended
to connect load with cos(Φ) ≠ 1 via external
contactor)
Protection: Regular circuit breaker, type B
<+2V or +12V with respect to GND, isolated from
power grid supply
SSR parameters: control DC min. 4VDC, SSR must
switch at zero (zero switch).
Protection: based on instructions specified in the SSR
relay manual, we recommend semiconductor fuses
0V or +12V with respect to GND, isolated from power
grid supply
Output type: open collector
PWM parameters: carrier frequency 200 Hz to 10
kHz, duty cycle 0-100% in 1% steps
