WATTrouter Mx - user manual

INSERTING THE SC-GATEWAY MODULE

The SC-Gateway module is an optional accessory that provides wireless communication with wireless end-
points. Insert the module to sockets in the regulator according to the images below. Before insertion you must
lift the regulator cover with a small screwdriver or similar tool.
Make sure the regulator is turned off before inserting the module!
Keep the proper orientation of the module. Reverse orientation can damage the module!
Insert the module gently, without unusual force!

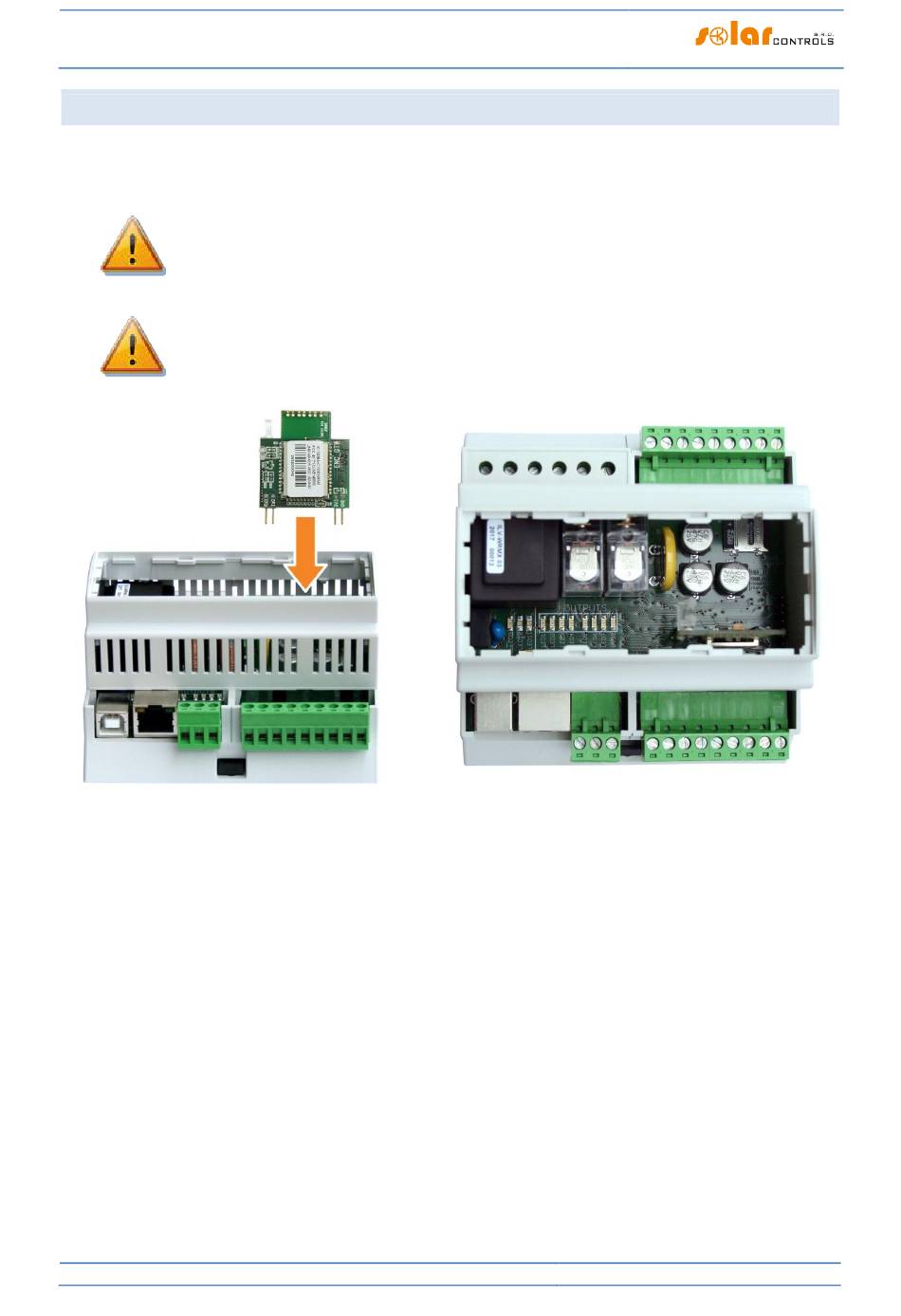

Figure 13: Insert the module to sockets on regulator
mainboard, use vertical movement as the arrow indicates.
After regulator power on, the blue LED on the module must indicate the module initialization sequence, refer
to chapter LED Statuses. In case that does not happen, refer to chapter Troubleshooting.
How to fit and setup the device
Figure 14: Resulting position of the module inside the regulator.
Page 19 from 82
