WATTrouter Mx - user manual

DESCRIPTION OF WATTCONFIG MX ITEMS

This chapter contains a list of all items available in the WATTconfig control software and explains their
meaning. Or you may use the controller web interface, where the items have identical names and meanings.

MAIN WINDOW

The main window displays all basic measured values and statuses. Controller can be configured using
configuration tabs.

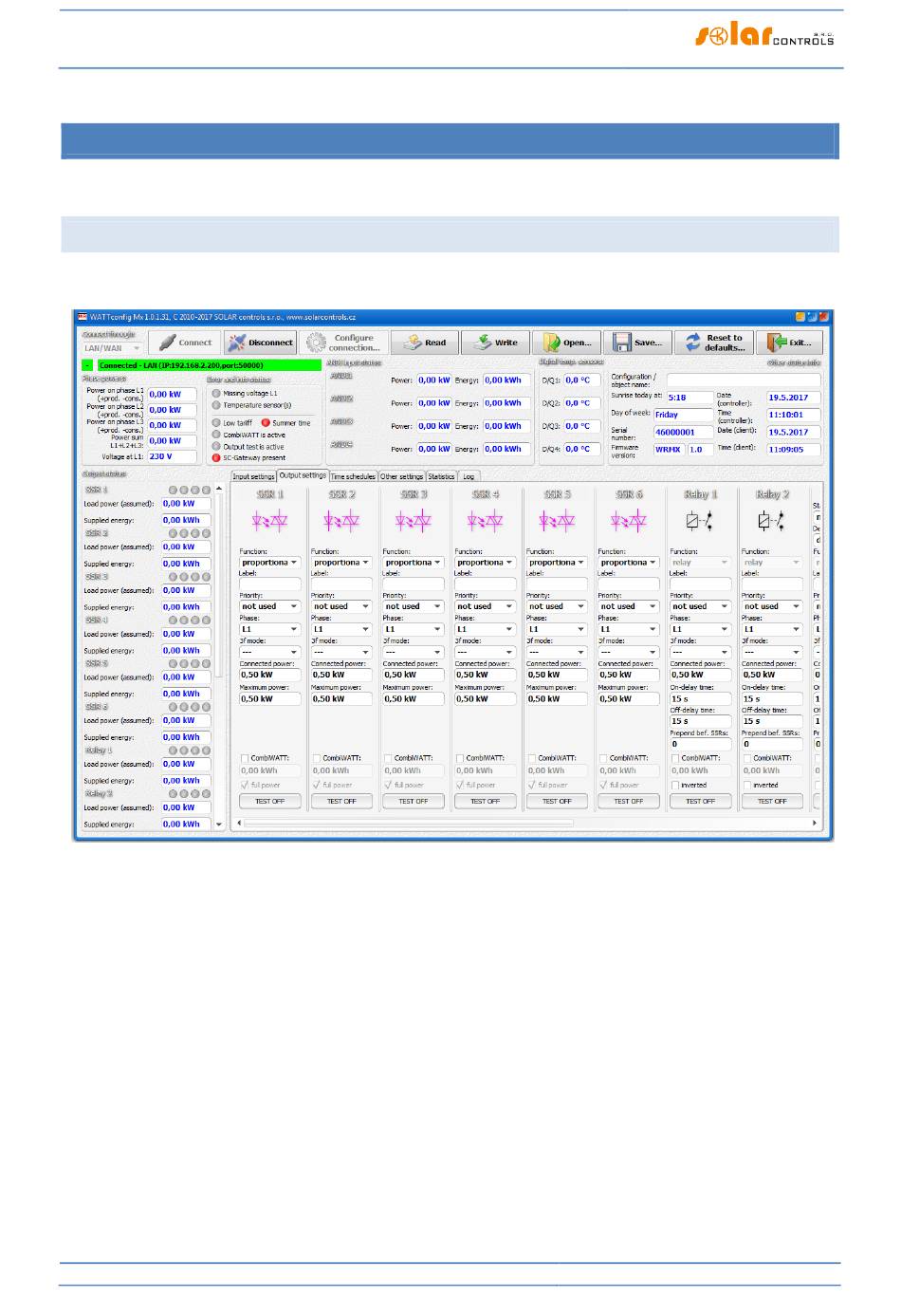

Figure 17: Main window of WATTconfig software.
How to fit and setup the device
Page 29 from 82
