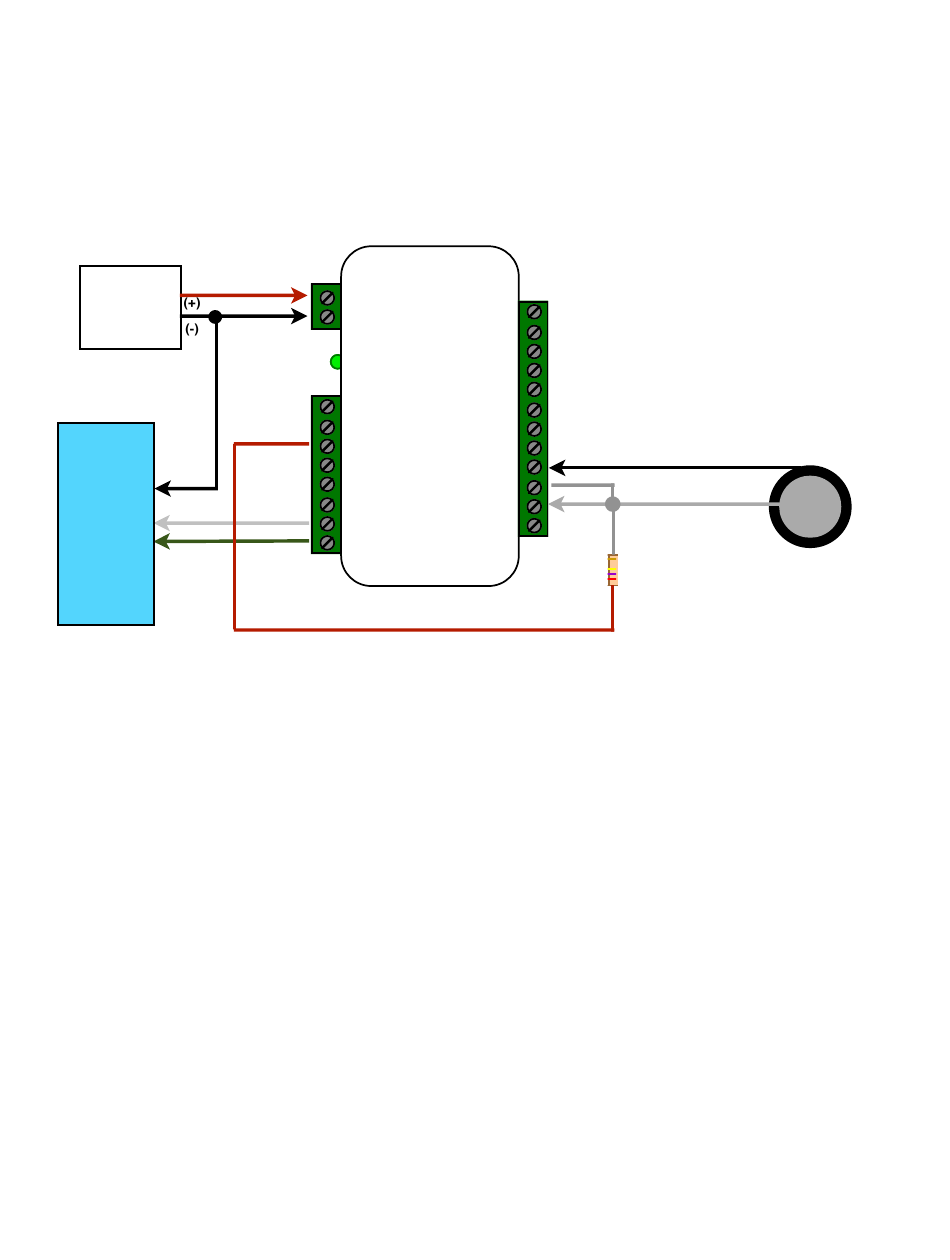

Wiring Diagram #10 IButton® to Wiegand
DC
Power
Supply
Access
Control
Panel
+8 to +16 VDC In
Ground
Data Bender®
+5VDC Out
Ground
Data 1 Out
Data 0
IButton®
Reader
Ground
IButton Center Contact
4.7 k Pullup
Resistor
25
