3.1.3 Advanced Cascade Controller

MCO 102

The VLT Advanced Cascade Control Card MCO 102 option
is exclusively intended for use in option slot C1. The
mounting position of C1 options is shown in
Illustration 3.5.
3 3
Max terminal load (AC)
Max terminal load (DC)
Min terminal load (DC)
Max switching rate at rated load/min load
Table 3.5 Electrical Data, MCO 102
Tools required
Some items are needed for the installation of a C option
mounting kit (depending on the enclosure):

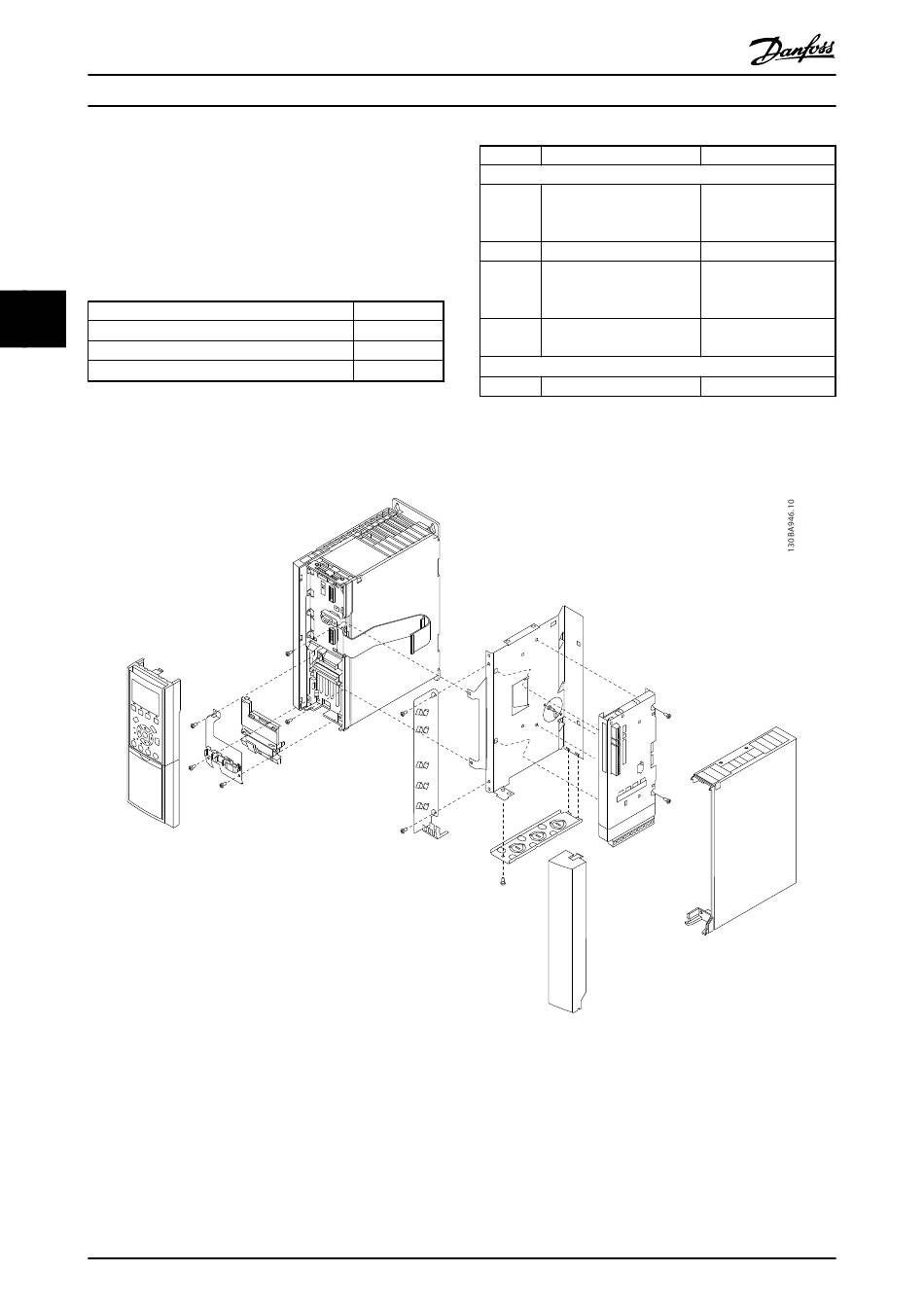

Illustration 3.5 Enclosure A2, A3 (and B3) 40 mm (only one C option)
14
®
VLT AQUA Drive MCO 101/MCO 102
Type
Options
MCF 105
MCF 105
MCF 105
240 V AC 2 A
MCF 105
24 V DC 1 A
5 V 10 mA
Accessory Bag
6 min -1 /20 s -1
MCO 102 Accessory Bag
Table 3.6 Ordering Numbers for Mounting Kits and Accessory Bag
®
MI38C402 - VLT is a registered Danfoss trademark
Description Ordering number
Mounting Kit frame size A2 130B7530
and A3 (40 mm for one C
Option)
Mounting Kit Frame size A5 130B7532
Mounting Kit Frame size B, 130B7533
C, D, E , F1 and F3 (Except
B3)
Mounting Kit frame size B3 130B1413
(40 mm for one C Option)
130B0152
