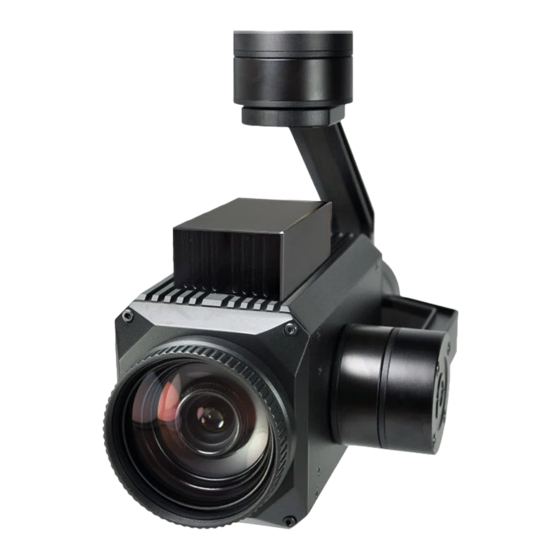

Summary of Contents for Foxtech FH336

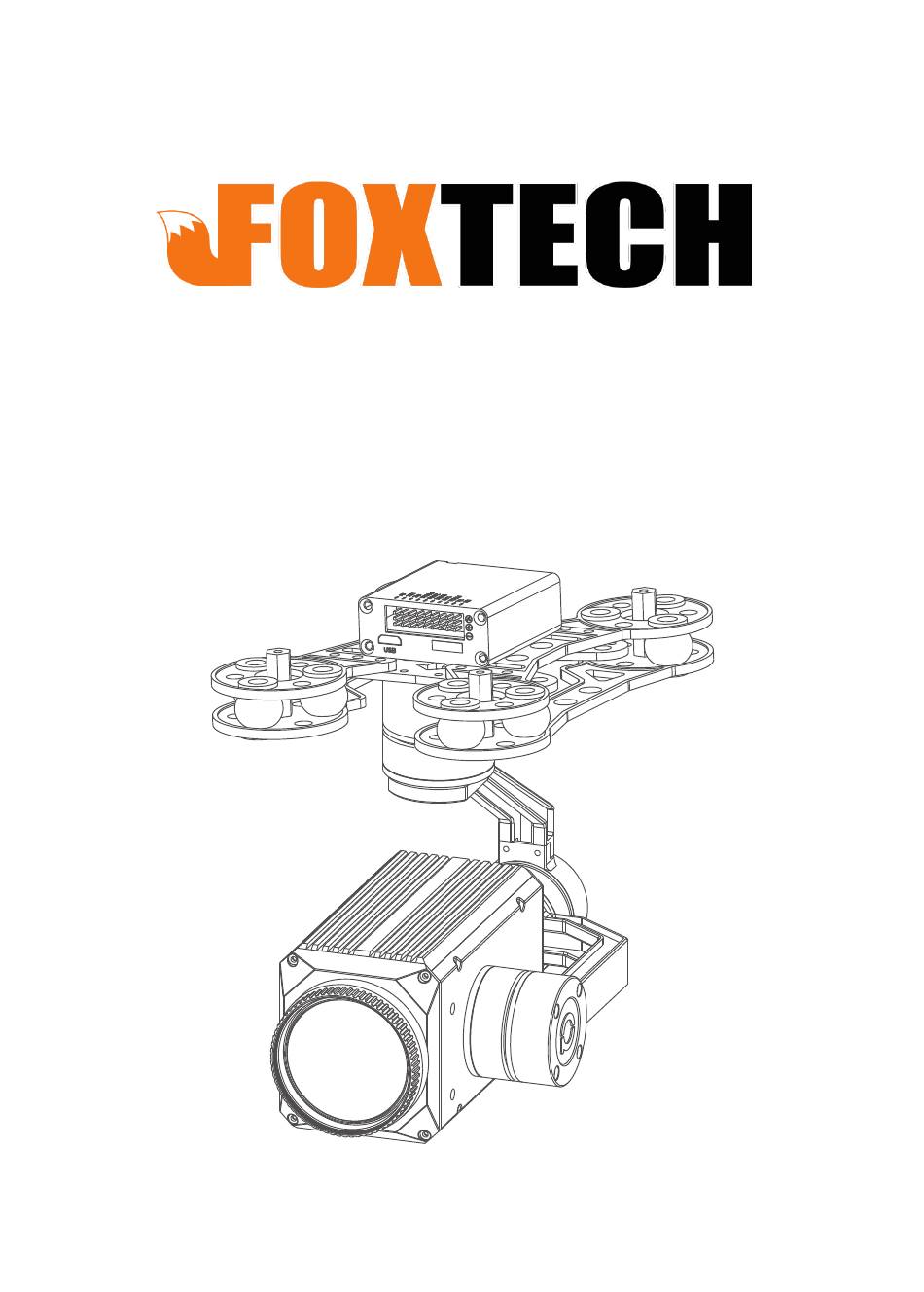

- Page 1 F F F H H H 3 3 3 3 3 3 6 6 6 3 3 3 6 6 6 X X X O O O p p p t t t i i i c c c a a a l l l Z Z Z o o o o o o m m m C C C a a a m m m e e e r r r a a a w w w i i i t t t h h h 3 3 3 - - - a a a x x x i i i s s s G G G i i i m m m b b b a a a l l l ( ( ( E E E t t t h h h e e e r r r n n n e e e t t t V V V e e e r r r s s s i i i o o o n n n ) ) )
-
Page 2: Table Of Contents
Contents 3-Axis Gimbal Introduction………………………… 、Gimbal ………………………………………… …2 Tracking function(optional) ………………………………………………2 2、 3、 G i m b a l d e s c r i p t i o n … … … … … … … … … … … … … … … … … … … … … …3 4、Packing list………………………………………………………………………………4 5、Mounting plate dimension drawing………………………………………4 6、Installing………………………………………………………………………………………5... -
Page 3: Gimbal Introduction
Object Tracking Function With onboard object tracking module, FH336 TIR is able to track static or moving target easily. Just put the object you want to track in the screen, move the cursor to the object and lock it via controller, and then the camera will track... -
Page 4: 3、 G I M B A L D E S C R I P T I O N
G i m b a l d e s c r i p t i o n [1]Copper pillar [5]Yaw Axis Motor [6]Roll Axis Motor [2]Damper [3]Upper damper board [7]Pitch Axis Motor [4]Lower damper board [8]HD zoom camera Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: 4、Packing List
Packing List Gimbal*1 Screw*1 Lens Cover*1 M3*5mm half round inner sixangle screw *12 Copper pillar*4 Damper*12 防脱落夹*12 DIMENSIONS 54.00~102.00 （adjust unit: 4mm） 106.00 unit：mm 105.3... -
Page 6: 6、Installing
Installing Mechanics@Electronic characteristics voltage Static 450mA@12V Dynamic 550mA@12V 3S~6S 945g Environment -10℃~+60℃ weight Temperature -30℃~+80℃ Size L105.3 *W188 *H151.5mm Working Characterastic Pitch：-90°~+90° Roll: -85°~+85° Yaw：-360°~+360° Control Precision：Pitch/Roll：± 0.01° Yaw± 0.01°... -
Page 7: 9、Gimbal Hub
Gimbal Hub unit：mm 1 2 3 S.bus/Rx Roll/Tx Pitch Mode Zoom Focus Pic/Rec Multi Rj45 Ethernet Version Ethernet Version Note：This is ，no HDMI output，SD CARD is at the back of the camera. -
Page 8: Control Box Wire Connection
Control box wire connection Futaba R6208 S B S.bus/Rx Roll/Tx Pitch Mode Zoom Focus Pic/Rec Multi pitch Channel，connect 3-position switch，（Speed mode） PITCH in the normal mode to control gimbal pitch angle, 3-position switch at high position--camera turns down, if at low position--camea turns up, and middle position--stop. -
Page 9: Zoom Camera
， streaming, and the 36X zoom will help to capture every detail in distance. FH336 comes with powerful night vision capability. The camera sensor is very sensitive to IR light due to its super low illumination.which will enable you to observe objects clearly in the darkness. -
Page 10: 3、Specification
Specification version FH336 Type 36X 238 mp 1/1.9″CMOS Name image size 8.58 mm (Type 1/ 1.9 ) effective pixel 2.38 Mp CMOS Sensor Support progressive scanning 1920H x 1080V /25fps output 1920H x 1080V /30fps optical zoom 5.8 ~210 mm± 5%36 X... -
Page 11: 4、Ttl Serial Port Control Wiring Instruction
TTL Serial port control wiring instruction 1 2 3 S.bus/Rx Roll/Tx Pitch Mode Zoom Focus Pic/Rec Multi Serial ports will be needed(marked by the black box, see photo above),please connect RX1 and RX2,TX1 and TX2,with wire jumper.TX and RX from external serial cableconnect to TX3 and RX3 respectively.
