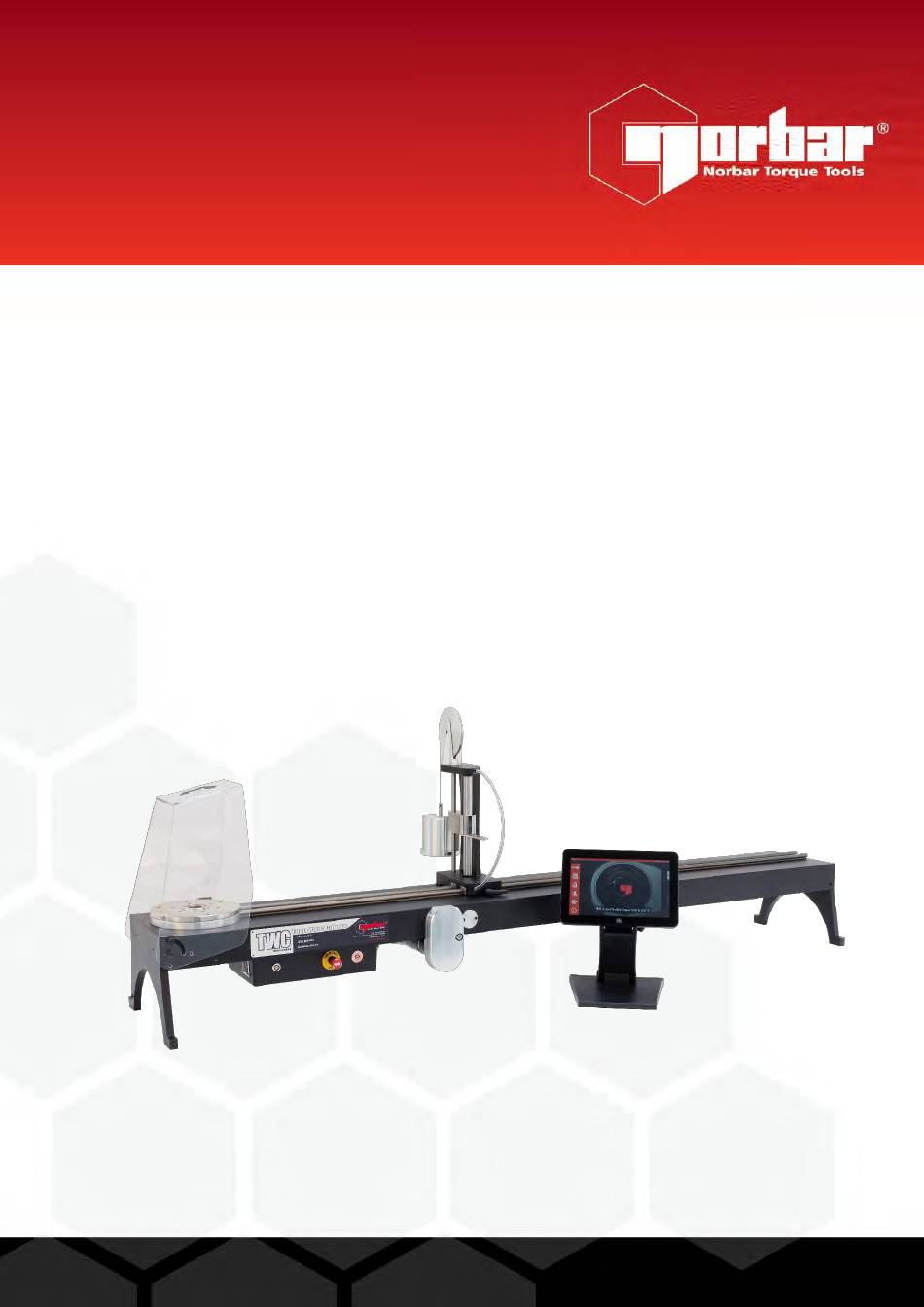

- Page 1 OPERATOR’S MANUAL TORQUE WRENCH CALIBRATOR (TWC) TWC 400 & TWC 1500 - Auto Part Number 34454 | Issue 1 | Original Instructions (English)
-
Page 3: Table Of Contents
CONTENTS Part Numbers Covered by This Manual TWC Markings Safety Introduction Parts Included Accessories Features and Functions Control Box Set up Instructions 1. Locate TWC 2. Fitting the Guard 3. Connect Motor 4. Connect Temperature / Humidity Sensor 5. Connect Display 6. -
Page 4: Part Numbers Covered By This Manual
FMT Quick Release Kit – 60322 TWC Angle Offset Plate Kit – 60330 Trouble Shooting Glossary of Terms PART NUMBERS COVERED BY THIS MANUAL This manual covers the set up and use of the Norbar TWC. Part Number Model Torque Range 60312 TWC 400 AUTO 0 –... -
Page 5: Safety
SAFETY • The TWC is designed for testing torque tools, do not use for other purposes. • Always read and understand the Operator’s Manual fully before use. • The TWC weighs up to 45 Kg. Take care when installing. Only lift by the solid metalwork. •... -
Page 6: Introduction
INTRODUCTION The TWC Auto allows torque wrenches to be calibrated and tested in an accurate and repeatable way whilst reducing operator effort. This manual covers items 60312 & 60313 only. The TWC Auto can automatically test all torque wrenches that operate on the ‘click-action’ or ‘cam-action’ principle, as well as manually testing dial type wrenches. -
Page 7: Accessories
Accessories Description Image Part Number Static Transducer Support Kit 60318 Short Length Reaction Post 60319 Quick Release FMT Kit 60322 TWC FMT 25 Adapter plate 60327 3 Kg Mass Weight 60329 Angle Offset Plate 60330 Square Drive adapter 1” M to ¾” F 29214 Square Drive adapter 1”... -
Page 8: Features And Functions
FEATURES AND FUNCTIONS • Allows torque wrenches to be calibrated or tested in accordance with BS EN 26789:2003, ISO 6789-1:2017 and ISO 6789-2:2017. • Counterbalance reaction is designed to support the weight of the wrench so that the weight does not become a parasitic force within the calibration system. -
Page 9: Control Box
Control Box Front View Transducer connector Emergency stop ON switch (Lights up RED when ON) FIGURE 2 – Control Box Front View Right View Temperature & humidity sensor Motor connector 1 for controls Motor connector 2 for windings Air outlet FIGURE 3 –... -
Page 10: Set Up Instructions
SET UP INSTRUCTIONS NOTE: If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. WARNING: ALLOW THE TWC TO EQUALISE TO THE AMBIENT TEMPERATURE / HUMIDITY BEFORE SWITCHING ON. WIPE OFF ANY MOISTURE BEFORE USE. -
Page 11: Connect Motor
3. Connect Motor Plug motor wires in. 4. Connect Temperature / Humidity Sensor Plug in temperature / humidity sensor to its dedicated connector. 5. Connect Display Connect the display to ports 3 and 4 shown in Figure 4 on page 7. 6. - Page 12 Place the counter balance wheel onto the top plate of the reaction assembly. FIGURE 9 – Lining up the Counter Balance Reaction Wheel Attach the counter balance wheel assembly with the two M4 socket cap screws from the underside of the top plate of the reaction assembly.
-
Page 13: Mount Transducer (Not Supplied With Twc)
Set the locking lever to engage positively when applied. This is done by pulling the lever towards you whilst at the same time winding in the screw with an appropriate screwdriver. When at top dead centre, the lever should start to engage to lock the reaction post’s position. Turn the lever to the right and you should start to feel some resistance as the lock is engaged. -
Page 14: Connect Power
9. Connect Power WARNING: CHECK THAT THE POWER SUPPLY CORRESPONDS TO THE VOLTAGE ON THE TWC RATING PLATE. WARNING: THE TWC MUST BE EARTHED ENSURE POWER SUPPLY HAS AN EARTH DO NOT OPERATE WITHOUT AN EARTH WARNING: FOR OPERATOR SAFETY ENSURE THE MAINS SUPPLY HAS A RESIDUAL CURRENT DEVICE (RCD). -
Page 15: Turn Twc On
10. Turn TWC on Turn on mains supply. Hold down the power pushbutton (See Figure 2.3 page 7) on the front until it lights up red. Whilst you do this, the TWC will begin the power-on process. When the process is complete, you will see the main TWC menu, as shown below: At this point the TWC is fully powered but the motor electronics are not engaged. -
Page 16: Operating Instructions
OPERATING INSTRUCTIONS Locating a Torque Wrench Ensure the TWC Guard is lowered. Use lowest capacity transducer to cover the range of the torque wrench to be tested. NOTE: For a wrench with a push through ratchet, ensure the drive square is operating on the correct side of the ratchet. - Page 17 FIGURE 17 – Adding Weights to the Counter Balance Reaction Assembly If you push the reaction balancer up or down at the handle end the wrench should return to a true natural horizontal position. FIGURE 18 – Ensuring the Torque Wrench is in a Horizontal Position Ensure the TWC is at the extreme minimum of start position (see Figure 19).
-
Page 18: Exit Twc User Interface
Exit TWC User Interface To perform initial setup of a TWC, or to change certain system-level settings, it may be necessary to leave the TWC user interface. To exit the TWC UI, use the power button on the main menu and select “Exit to Desktop”. -
Page 19: Changing The Default Password
Changing the Default Password The TWC is supplied with a default user password (“NorbarTWC”) which you should change for your security. Once you change this, make sure you do not forget it; you may need to send the TWC back for service if it is forgotten. - Page 20 Then in the window that appears, on the System tab, select “Change Password” and follow the onscreen prompts to set a password of your own.
-
Page 21: Timezone Setup
Timezone Setup The TWC requires accurate timezone settings to keep time properly. NOTE: To change the timezone and locale, you will need to connect a USB keyboard to the TWC. To set/check the timezone, close the TWC UI and open the Raspberry Pi Configuration panel as shown in the “Exit TWC UI”... -
Page 22: Time Setup
Time Setup Ideally, setting the timezone is enough to ensure correct time as the time is set at the factory. If, however, the time is still wrong, or if in the future you need to adjust the time, close the TWC UI as shown in the “Exit TWC UI”... - Page 23 Toggle “Automatic Date & Time” to “OFF” and tap the “Date & Time” field to make changes. NOTE: It may take up to a minute for the new time to take effect in the menu bar or on the TWC UI.
-
Page 24: Configuring The Network
Configuring the Network The TWC has an Ethernet socket which allows you to connect it to a network for printing to network printers. When setting up printers an Internet connection via this network is also necessary. The TWC is configured to automatically seek the correct network connection settings via DHCP; when you plug the network cable into the TWC, it will immediately request these settings. - Page 25 Now Click Network Configuration to open the network configuration panel. The panel will show the current network state. You should see something like the below if a network cable is connected. Ensure the Wired connection is selected, as shown here, and press the settings icon in the bottom right to open the network settings panel.
- Page 26 Under the IPv4 tab, change the “Addresses” drop-down setting from “Automatic (DHCP)” to “Manual” as shown here, then type in your desired settings using the USB keyboard: For most networks you are unlikely to need to change any other settings in this window than enter the IPv4 Address, Netmask, Gateway and DNS.
-
Page 27: Printer Setup
Printer Setup The TWC supports printing directly to a printer attached via either USB or remotely via Ethernet. Alternatively, if no printer is available, documents can be “printed” as PDF files. NOTE: To add a printer you will need to connect a USB keyboard to the TWC. Network connectivity is required to allow the TWC to search for and attempt to download driver packages for printers when setting up. - Page 28 In the window that appears, click “Add” to add a printer. Enter your password (default is “NorbarTWC”) to unlock the printer selection screen.
- Page 29 In the left-hand list will appear a USB-attached printer if currently connected. Beneath this, under the Network Printer drop-down menu, network printers will appear as and when the TWC finds them (this may take several seconds). Add a printer by selecting it and clicking “Forward” to follow the on-screen prompts.
- Page 31 Select a driver for the printer (it’s generally best to go with recommended drivers). Press Forward each time when ready to proceed. NOTE: Some printers, for example HP printers, may have special driver packages that add or otherwise enhance compatibility with their printers.
- Page 32 Enter a friendly name for the printer if you wish (otherwise it will select a default name for you). When you click Apply, you will need to enter the system password again (default is “NorbarTWC”). At this point the printer is added and you can print a test page. The printer will appear as an option when printing certificates or declarations of conformance from the TWC UI.
-
Page 33: Settings
Settings The settings menu lets users customise document headers (like company name, logo and address), change sensitivity of the peak detection algorithm, backup, restore or erase the database or enter calibration data for the TWC and currently attached transducer. NOTE: Before using any transducer to perform jobs on tools with the TWC, you must provide the TWC with information from the calibration certificate. -
Page 34: Database
Database This menu allows the TWC data store to be backed up to, or restored from, a USB memory stick. It also allows the data to be erased. “Data” comprises: Tools and tool templates • Jobs and documents produced from completed jobs •... -
Page 35: General Settings
(how many cycles remain until the TWC should be lubricated) and a means to save a debug log in the event of any issues requiring support from Norbar. The first peak sensitivity setting lets you choose how big of a peak must be observed before it’s taken as a legitimate first peak reading. -
Page 36: Loader Calibration
Loader Calibration In order to produce calibration and conformance certificates, the TWC must know about its own calibration state. This is managed here. In this screen you can input calibration data from both the TWC and the currently attached transducer’s calibration certificates. You will need to do this for every transducer you plug into the TWC, but you only need to do this once (at least, until recalibration is required). -
Page 37: How To Fill In Loader Calibration Page
How to Fill in Loader Calibration Page The TWC has two main calibration states: “system” calibration and “instrument” calibration. A “system” calibration is where the TWC and the transducer have been calibrated as a matched pair (a “system”). In this case, we do not need any data from a TWC calibration certificate as it is all provided by the transducer certificate. -
Page 38: How To Fill In Uncertainty Data
How to Fill in Uncertainty Data Refer to the final page of your TWC/transducer calibration; the page should be titled “Expression of Uncertainties” For Transducers: On the “Expression of Uncertainties” page, you should see a table like the following (shown here, an example for a 400 N·m transducer): Expanded uncertainty k=2.0 Uncertainty interval k=2.0... -
Page 39: Certificate Settings
Certificate Settings This menu lets you configure the content of the calibration and conformance documents produced by the TWC. You can change the company address, the logo, and customise the certificate numbering scheme. Next Calibration / Next Conformance number: for traceability, each calibration or conformance document is numbered, with the number increasing every time one is produced. - Page 40 Company logo; this lets you change the logo from the default Norbar logo to one of your choosing. To do this, you must first place an image of your logo in the necessary folder: ~/.twc_logo To do this: Attach a USB keyboard to the TWC (and optionally, a mouse) •...
- Page 41 NOTE: Your logo file should ideally not be larger than 400x160px or the document layout may be affected. Use the existing norbarlogo.png file for a good size reference. NOTE: PNG and JPEG formats are supported. PNG is a lossless format which makes it a great choice for storing company logos, and is the recommended choice.
-
Page 42: Twc Usage Overview
TWC Usage Overview The TWC menu structure is data-centric and designed to follow the logical process of calibrating a tool from start to finish. The process for calibrating a tool is as follows: Define a tool template (i.e. a torque wrench model) > Add a tool based on that template > Book a job for that tool (describe what you are going to do, i.e. -
Page 43: Add/Manage Template
Add/Manage Template To add/manage a template press the Templates icon on the home screen. If you have no templates the screen below will be shown. - Page 44 Press the + icon to add a template. Following the sequence shown above enter all required data as requested for steps 1 through to 8. For step 9 this button needs to be pressed to be able to set the Primary units of measure.
- Page 45 A summary of the ISO tool types is given below; for full details please refer to the ISO standard. Tool Type I: Indicating torque tools (The torque exerted is indicated on scale, dial or display). Tool Type II: Setting torque tools (A signal is given when the pre-set torque value is met). Type Class Description:...
- Page 46 Screen below shows selection of adaptor and ratchet drive with square drives. If secondary units are required select the desired units (see step 11). Follow on screen instruction (most users will only select 1 set of units for calibration within the template). NOTE: Your resolution might change when entering additional values.
- Page 47 Press to confirm and save. The new template will be shown as a new line within TEMPLATES. Press return to go back to the home screen.
-
Page 48: Creating Certificates Or Declarations Of Conformance
Creating Certificates or Declarations of Conformance This section shows a start-to-finish walkthrough of how the TWC is normally used. In this section, we will add a tool, book a job for the tool, perform the job and produce a certificate. First select Tools from the Home screen. - Page 49 The screen below shows the tools screen when there are no existing tools. Press the + icon to add a tool. A prompt will appear; confirm you would like to select a template for the tool.
- Page 50 Select the desired template from the templates menu (or create a new one, if necessary, and then select it) and confirm your choice by pressing Selected template summary Edit selected template Confirm selected template for tool NOTE: To add a tool, the TWC requires you to select a template. Whether you add a new template at this point, or select an existing one is up to you, but a template must be selected in order to proceed.
- Page 51 Enter the tools Serial number and follow any on screen instructions.
- Page 52 Select the tool. NOTE: New menu options will now appear in the bottom left of the screen. Add another of this tool (if tool selected; else just add a new tool) Adjustment screen (test a tool by performing cycles on it) Jobs (book or load an existing open job for the currently selected tool) Delete Go back...
- Page 53 Press jobs to book a new job for the selected tool. The job editor will open as seen below. Choose between a Calibration or Conformance (1) for ISO part 1 or part 2. Select units (2) and make selections from direction / As Found / As Left (3) tasks as applicable. Press PLAY to continue and follow any on screen prompts.
- Page 54 After starting a task, you will land on the task summary screen, as shown below. This screen lets you review key information about the job and task as well as the progress made so far. You will see a list of work required to complete the task in a table at the bottom of the screen. Shown here is the list for a part 2 calibration of a tool that has an adapter and square-drive rotating end fitting.
- Page 55 For Setting Tools: Follow the instructions as they appear; the TWC will gather readings for you. For Indicating Tools: Follow the instructions as they appear, then use the on-screen controls to gather the readings. You will need to use this screen to load the tool manually because the TWC cannot automatically read a wrench which produces no variation of output on the transducer (by comparison, a setting tool may produce a “click”, which can be detected by the TWC).
- Page 56 FOR PART 2 CALIBRATIONS FOR PART 1 DECLARATIONS Continue: To summary screen Continue: Finish or next Cal Retry last: Repeat last sequence Retry Last: Repeat last sequence Cancel: Will delete the results Cancel: Will delete the results collected during the test collected during the test Press Continue.
- Page 57 If performing a Part 2 calibration the screen below will list outstanding steps Continue through the steps until they are all complete following any on screen prompts. NOTE: These steps do not need to be completed in the listed order, but calibration should be performed first.
- Page 58 Select from the options; • OK will produce documentation now. • Later allows you produce/print your documents at a later date. Certificate or Declaration Shown Here You can now review the document displayed, print if required or press the back arrow to return to home screen for printing at a later date.
-
Page 59: How To Test A Type 1 Indication Tool
How to Test a Type 1 Indication Tool From TOOLS select your wrench (refer to templates production for tool template set up). Once selected add to Jobs. Press jobs. Select (1) for Conformance or Calibration. Select units (2), make selections from direction / As Found / As Left (3) as applicable. - Page 60 Highlight segment. Press play. Press Ready...
- Page 61 Stop Nudge or Nudge or Load to nominal 80% Take reading home CCW Home CCW of target torque (capture value) Press Auto Load for a nominal 80% of target to be achieved. Use the motor control dial buttons and/or the manual I/P drive gear adaptor (pictured below) to increase the torque until the tool indicates the target torque is attained.
- Page 62 Shown above: target value indicated on the tool. Ready to capture. Press Take Reading to capture current torque value. Press the CW home to return the load to Zero and then press stop. Once returned to zero torque, the next reading can be taken by following the same procedure. Continue until all readings for the stage are complete.
- Page 63 Follow on screen Instructions and complete stage 1 as you did the preload stage. Repeat these actions to collect results for stage 2 and 3. When the final stage is completed, press Next Stage one final time to advance to the finish screen.
- Page 64 To complete the task press Continue; this will save the results. Now that the results are saved, press the back button to return to the task summary screen.
- Page 65 If all components of the task are completed, you will see a message offering to generate a document for the completed job. Press OK to generate. Document displayed ready for printing. Press return to go back to the home screen.
-
Page 66: Adjustment Screen
Adjustment Screen The adjustment screen is for experimenting with and adjusting tools. Use the controls to load the tool and take readings as you see fit. You may access the adjustment screen by: Selecting a tool on the tools page and pressing the button to load the adjustment page •... - Page 67 the current motor speed. The dial’s inner circumference is a graphical representation of the single or multiple cycle work to be completed and will gradually fill up until the rig is finished. NOTE: The direction buttons rotate the transducer mechanism; for instance, the clockwise arrows will spin the transducer clockwise.
-
Page 68: Adjustment Screen With Indicating Tools
Adjustment screen with Indicating Tools If you are using an indicating tool, or if you use the peak mode button to change modes manually, the adjustment screen will look like this: In this case, the last cycle results are disabled (as indicating tools do not mark attainment of target torque in a way that the TWC can detect, such as by clicking) and the cycle limit settings are disabled (as the TWC cannot automatically cycle indicating tools since it cannot detect when the target is reached). -
Page 69: Maintenance
TWC is recalibrated at least once per year. Recalibration should be carried out at Norbar or by a Norbar approved distributor, where all the facilities are available to ensure that the instrument is functioning at maximum accuracy. -
Page 70: Greasing Procedure
Greasing Procedure The TWC is engineered to be a low maintenance tool. Under normal operation maintenance is not required, however, at 6 monthly intervals or after 10,000 applications (whichever comes sooner) it is recommended that the unit is greased as described in this section. Use TWC Greasing Kit, Part number: 60325 Ensure that the TWC drive wheel is in the ‘Home’... -
Page 71: Disconnecting The Control Box For Calibration
Inject the remaining grease FIGURE 24 – Applying Grease Return the TWC to the home position FIGURE 25 – Returning to the Home Position Disconnecting the Control Box for Calibration There are four holes on the box where the screws fix the box to the rig. First these need to be unscrewed carefully so as not to let the box fall. -
Page 72: Product Disposal
This symbol on the product indicates that it must not be disposed of in the general waste. Please dispose of according to your local recycling laws and regulations. Contact your local distributor or see the Norbar website (www.norbar.com) for further recycling information. -
Page 73: Specifications
SPECIFICATIONS Specification TWC 400 TWC 1500 Maximum Output Torque: 400 N·m / 295 lbf·ft 1500 N∙m / 1100 lbf∙ft Minimum 135mm 135mm Wrench Length (Torque Radius): Maximum 750mm 1500mm Wrench Orientation: Horizontal Horizontal Calibration Direction: Clockwise and Anti-Clockwise Clockwise and Anti-Clockwise Operating Temperature: 0°C - 40°C 0°C - 40°C... - Page 75 ACCESSORY INSTRUCTIONS Square Drive Adaptors – 29214, 29215, 29216, 29217 • The square drive adaptors are all 1” male to a range of female sizes. • The manufacturing tolerances have been significantly reduced on these components to ensure a close fit and reduced uncertainties.
- Page 76 Short Length Reaction Plate - 60319 • To calibrate small torque wrenches the use of the “Short Length Reaction Plate” maybe required. • The reaction plate assembly simply bolts to the end face of the TWC using the M6 thumb screws provided.
- Page 77 FMT 25 Adaptor Kit - 60327 • Place the adaptor plate on the TWC and secure in place with the three bolts supplied as shown in Figure • Secure the FMT 25 onto the adaptor plate using the three bolts supplied with the FMT. •...
- Page 78 TROUBLE SHOOTING The following is only a guide, for more complex fault diagnoses please contact Norbar or a Norbar distributor. Problem Likely Reason Likely Solutions No mains power Check electrical mains power is working External fuse or circuit breaker No Display...
- Page 80 Tel + 61 (0)8 8292 9777 Tel + 86 21 6145 0368 Email enquiry@norbar.com.au Email sales@norbar.com.cn NORBAR TORQUE TOOLS INC NORBAR TORQUE TOOLS INDIA PVT. LTD 36400 Biltmore Place, Willoughby, Plot No A-168, Khairne Industrial Area, Ohio, 44094 Thane Belapur Road, Mahape, Navi Mumbai –...
