OPERATOR'S MANUAL
PROFESSIONAL TORQUE TESTER
PRO-TEST 60, 400 & 1500 SERIES 2
FOR USE WITH PRO-TEST'S FITTED WITH VERSION
37701.305 SOFTWARE
Part Number 34299 | Issue 5 | Original Instructions (English)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for norbar Pro-Test 60 SERIES 2
Summary of Contents for norbar Pro-Test 60 SERIES 2
- Page 1 Tel + 61 (0)8 8292 9777 Tel + 86 21 6145 0368 Email enquiry@norbar.com.au Email sales@norbar.com.cn NORBAR TORQUE TOOLS INC NORBAR TORQUE TOOLS INDIA PVT. LTD 36400 Biltmore Place, Willoughby, Plot No A-168, Khairne Industrial Area, Ohio, 44094 Thane Belapur Road, Mahape, Navi Mumbai –...
-
Page 3: Table Of Contents
CONTENTS Introduction Part Numbers Covered by This Manual Assembly Diagram Parts Included Accessories Features and Functions Operating Instructions Mounting Positions Locating Display Housing Connecting Power Supply Switching ON Selecting Measurement Units Selecting Measurement Mode Fitting Hex Drive Adapter Operating Tool to be Calibrated / Tested Set Up Language Limits... -
Page 4: Introduction

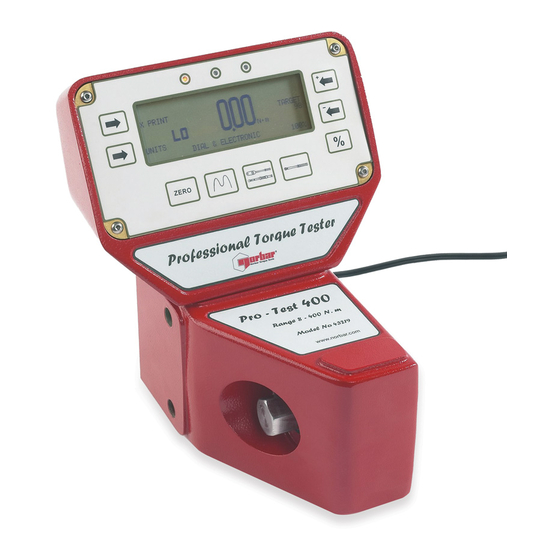

The Professional Torque Tester (Pro-Test) has been designed as an accurate, cost effective and easy to operate instrument for calibrating and testing all types of torque wrenches. Part Numbers Covered By This Manual • 43218 – PRO-TEST 60 series 2 TRANSDUCER & DISPLAY • 43219 – PRO-TEST 400 series 2 TRANSDUCER & DISPLAY •... -
Page 5: Parts Included
Parts Included Pro-Test Instrument Part Number Pro-Test 60 Pro-Test 400 Pro-Test 1500 ✓ ✓ ✓ 2 off M10 x 100mm long screw. 25492 ✓ ✓ ✓ 6 mm hex key. 24937 ¼” sq to 10 mm hex socket. ✓ 29034 ⅜”... -
Page 6: Features And Functions
FEATURES AND FUNCTIONS • 3 sizes available covering the calibration ranges of: 1.2 to 60 N∙m. 8 to 400 N∙m. 30 to 1500 N∙m. • 5 digit resolution. • ISO 6789-1:2017 limit mode with single press selection for 20%, 60% & 100% target values. •... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS NOTE: If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. 1. Mounting Positions Securely mount the Pro-Test transducer in the plane of operation required with the 2 fixing bolts supplied. This can be to a bench top, wall, or the mounting bracket part number 62198 (not included). -
Page 8: Locating Display Housing
2. Locating Display Housing Locate Pro-Test Display housing on to the bolt heads securing the transducer housing. The display housing and transducer housing can also be secured on to a mounting bracket part number 62198 (not included). 3. Connecting Power Supply Plug Power Supply into back of display housing then plug power cable into Power Supply. -
Page 9: Selecting Measurement Units
5. Selecting Measurement Units Select required units of measurement. Pressing and releasing the ‘UNITS’ button will step onto the next available unit of measurement. TIP: Required units of measurement are not selectable. Conversion cannot be displayed within available digits on display, thus conversion is not allowed. -
Page 10: Set Up
SET UP PRINT 0.000 N∙m UNITS TRACK ZERO To enter SET UP, press ‘UNITS’ & ‘PRINT’ buttons simultaneously upon which the ‘SOFTWARE VERSION NUMBER’ will be displayed for 2 seconds. 1. Language LANGUAGE EXIT Press ‘‘ to select. ENGLISH DANSK Press ‘OK’... -
Page 11: Units
3. Units UNITS Press ‘‘ to select. EXIT N∙m ozf∙in Kgf∙cm Press ‘/X’ to enable/disable. dN∙m ft∙lb gf∙m Press ‘OK’ for next menu. cN∙m in∙lb gf∙cm lbf∙ft in∙oz Press ‘EXIT’ to end set up. ... -
Page 12: Limits
LIMITS ISO 6789-1:2017 PRINT 0000 TARGET N∙m 59.9 UNITS 100% DIAL & ELECTRONIC ZERO To change the limit target value, use in any measurement mode. The target value set is shown on the display. Keep either key depressed for fast target value change. The three calibration points (20%, 60% &... -
Page 13: Non Iso 6789-1:2017
NON ISO 6789-1:2017 PRINT 0000 TARGET N∙m 59.9 UNITS DIAL & ELECTRONIC ZERO NON ISO 6789-1:2017 limit mode allows the user to set upper and lower limits from 0% to 99% of the target value. To change the limit target value, use in any measurement mode. -
Page 14: Serial Port
SERIAL PORT The serial port is for sending data to a PC or serial printer. Measurement Mode Data Output Operation When ‘PRINT’ is pressed. Track When ‘ZERO’ is pressed after a peak has been captured. Dial & Electronic Click & Cam Automatically after a first peak has been captured. -
Page 15: Limit Output
The serial port will output LO / OK / HI before the torque value when the limits are being used. Some software, including the Norbar ‘Torque Wrench Calibration Software’ (Part 37705.XXX), will not accept LO / OK / HI characters. -
Page 16: Maintenance
Your Pro-Test has been supplied with a certificate of calibration. To maintain the specified accuracy it is recommended that the Pro-Test is recalibrated at least once per year. Re-calibration should be carried out at Norbar or by a Norbar approved agent, where all the facilities to ensure the instrument is functioning at maximum accuracy are available. -
Page 17: Specifications
SPECIFICATIONS 1.2 to 60 N∙m (Pro-Test 60). Calibration range: 8 to 400 N∙m (Pro-Test 400). (2–100% of transducer capacity) 30 to 1500 N∙m (Pro-Test 1500). Resolution: 5 digits. To ‘BS 350:2004 Conversion factors for units’. Torque conversions: Display: 240 x 64 pixel dot matrix display. Update rate of three times per second (3Hz) in ‘TRACK’. - Page 18 NOTES...
