INSTALLATION

1.
Identify a suitable surface and position to mount the instrument.
2.

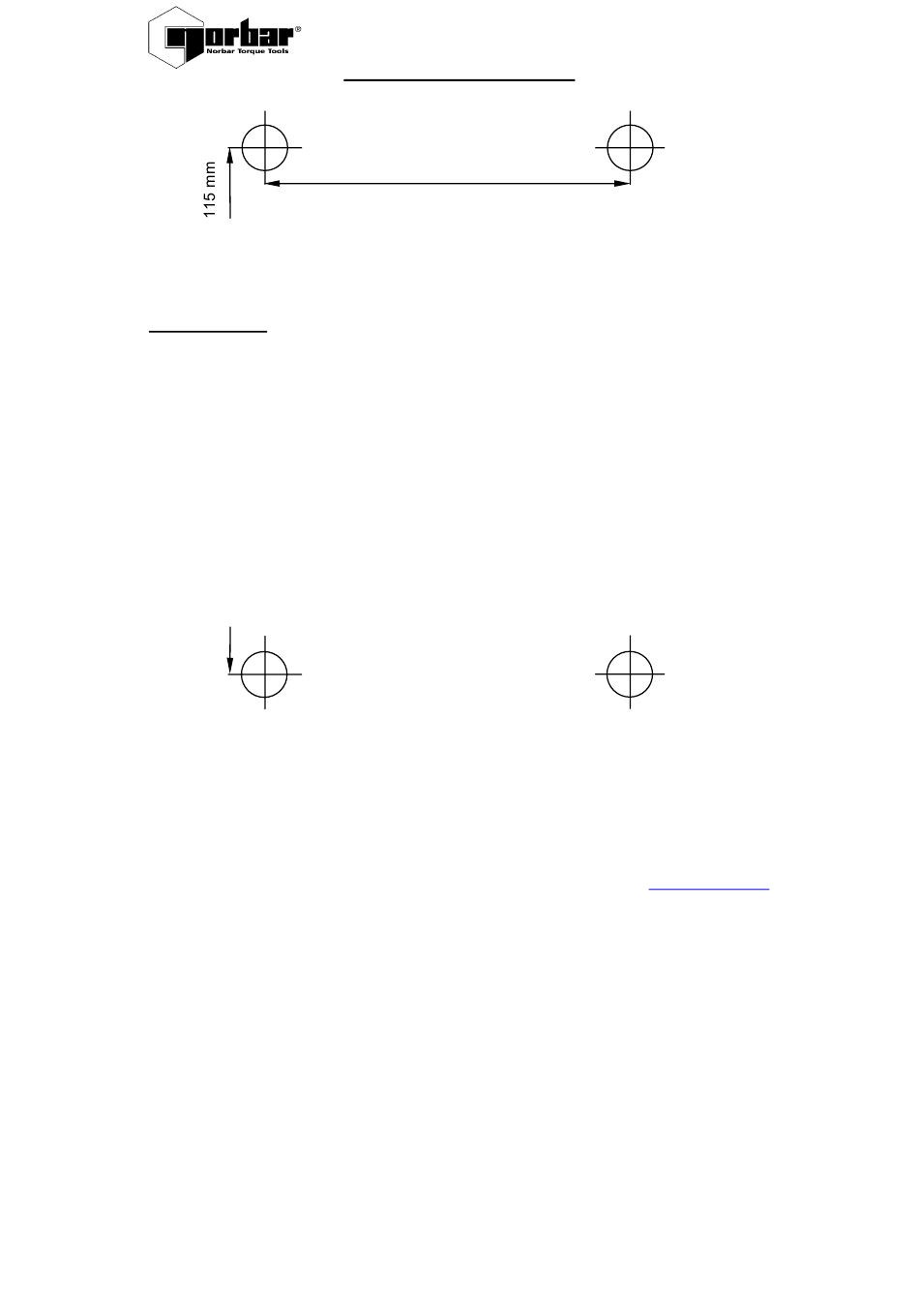

Using the template on this guide, mark the position of the 4 mounting holes.
3.
Drill (drill and tap) the 4 mounting holes suitable for 10.0 mm (⅜ inch) fasteners
(M10; Grade 8.8 minimum; cap head type are recommended or the equivalent ⅜
inch).
4.
Fix instrument in position using fasteners at a torque of 35 to 40 N.m (25 to 30
ft.lb).
5.
Connect power supply (supplied) to the instrument. All display segments will light
and buzzer will sound briefly. The instrument is ready for use.

WARNINGS

• ENSURE THE MOUNTING SURFACE IS CAPABLE OF SUPPORTING THE
INSTRUMENT WHEN 350 N.M TORQUE IS APPLIED.
• ONLY USE THE POWER SUPPLY PROVIDED.
• DO NOT APPLY TORQUE ABOVE 350 N.M.
• NOT TO BE USED WITH IMPULSE OR IMPACT WRENCHES.
Installation Guide for 43222
80 mm
Issue 3
24.01.05
Part Number 39303
www.norbar.com
