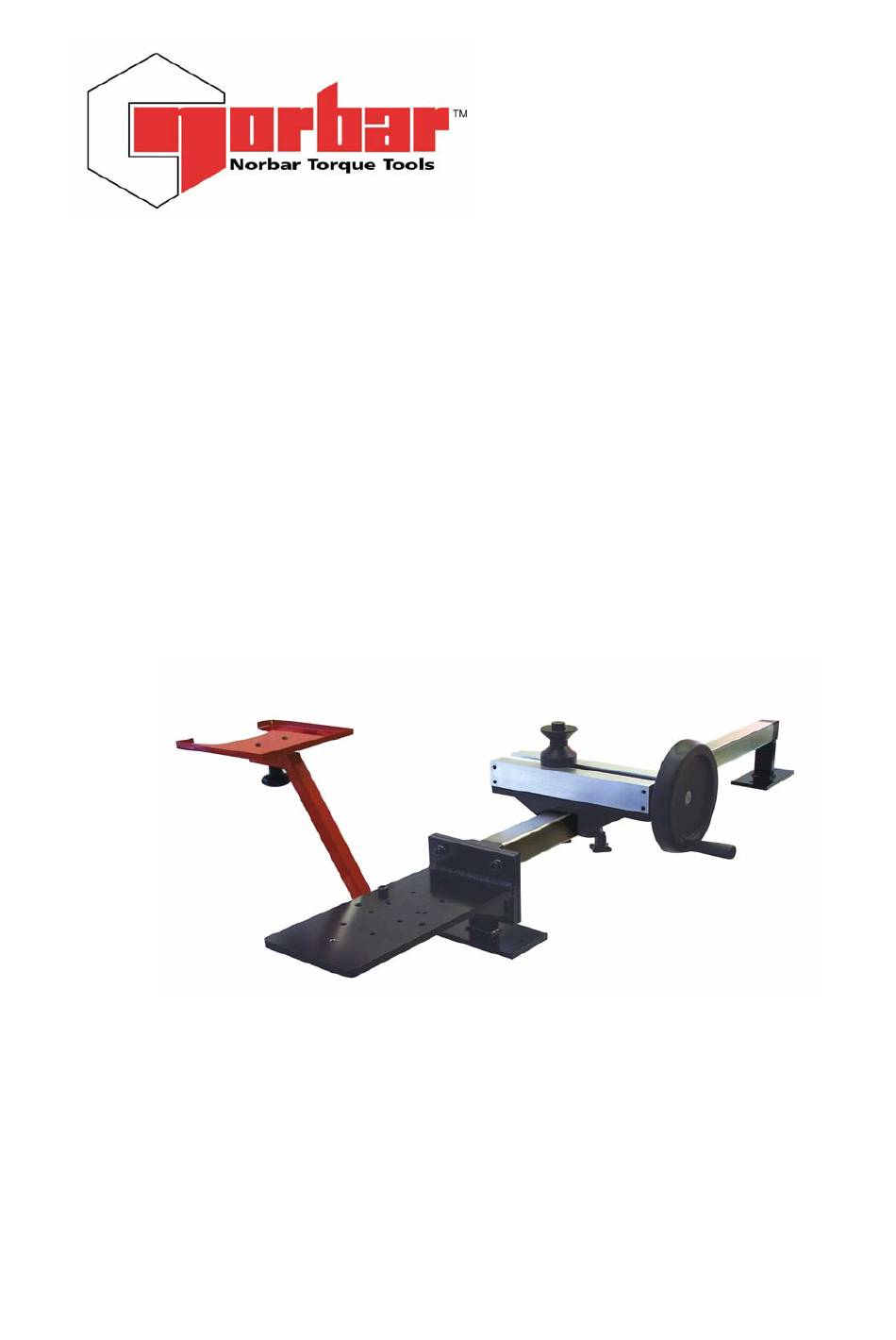

- Page 1 TWL 1500 TORQUE WRENCH LOADER OPERATOR’S HANDBOOK (PART NUMBER 60246.1) Issue 2 NORBAR TORQUE TOOLS Unit 3/4 Adelaide Terrace St Marys SA 5042 Australia Tel: +61 (0)8 8374 3499 Fax: +61 (0)8 8374 2566 Email: norbar@norbar.com.au Website: www.norbar.com...
-
Page 2: Table Of Contents
PAGE 1 OF 8 Issue 2 JANUARY 2005 CONTENTS PAGE INTRODUCTION SPECIFICATION ITEMS SUPPLIED AVAILABLE OPTIONS ASSEMBLY INSTRUCTIONS A. ASSEMBLY OF TRANSDUCER PLATE TO STAND B. ASSEMBLY OF LOADING DEVICE TO STAND C. ASSEMBLY OF THE DISPLAY STAND D. ASSEMBLY OF FLANGE MOUNTED TRANSDUCERS TO TRANSDUCER PLATE E. -
Page 3: Introduction
INTRODUCTION This handbook covers Torque Wrench Loader TWL 1500 (Part No. 60246). The Norbar TWL1500 Torque Wrench Loader is designed to test torque wrenches up to a maximum capacity of 1500 N.m. Any torque wrench within the systems maximum capacity can be tested in the horizontal plane to their appropriate standard. -
Page 4: Specification
PRO-TEST ADAPTOR PLATE “SMART” TORQUE BLOCK BOLT KIT AVAILABLE OPTIONS i. Norbar Torque Tool Tester display instrument (part no.43215) and Flange Mounted Transducers (part no’s. 50672.LOG to 50676.LOG) ii. Norbar Torque Tool Tester display instrument (part no.43215) and STB1000 “SMART” Torque Block .(part no.50683.LOG) iii. -
Page 5: Assembly Instructions
PAGE 4 OF 8 Issue 2 JANUARY 2005 ASSEMBLY INSTRUCTIONS A. ASSEMBLY OF TRANSDUCER PLATE TO STAND Align flanges of transducer plate and use the frame assembly bolt kit (M10 bolts, washers and nuts) to fasten. Tighten bolts to 20 N.m. TRANSDUCER PLATE STAND... -
Page 6: Assembly Of The Display Stand
PAGE 5 OF 8 Issue 2 JANUARY 2005 ASSEMBLY OF THE DISPLAY STAND Screw the display stand to the display stand base using 2 off M5x16mm long screws. Insert the display stand base into the display support arm and tighten using the thumb nut from the display stand bolt kit. -
Page 7: Assembly Of Pro-Test Transducer
PAGE 6 OF 8 Issue 2 JANUARY 2005 ASSEMBLY OF PRO-TEST TRANSDUCER Place the Pro-Test adaptor plate in the position shown below. Fasten the Pro-Test adaptor plate to the transducer plate using the 3 off M12x30mm long bolts from the flange mounted transducer bolt kit. Tighten to 15 N.m. -
Page 8: Assembly Of "Smart" Torque Block Transducer
PAGE 7 OF 8 Issue 2 JANUARY 2005 ASSEMBLY OF “SMART” TORQUE BLOCK TRANSDUCER Attach the “SMART” Torque Block directly to the transducer plate using the 4 off M8x25mm long bolts from the “SMART” Torque Block bolt kit. There are two mounting positions to choose from on the transducer plate shown below. -
Page 9: Operating Instructions
JANUARY 2005 OPERATING INSTRUCTIONS MACHINE INSTALLATION Secure the TWL 1500 onto a sturdy bench making sure there is enough room around the unit for the display stand and for the loading device to move freely along the length of the stand.
