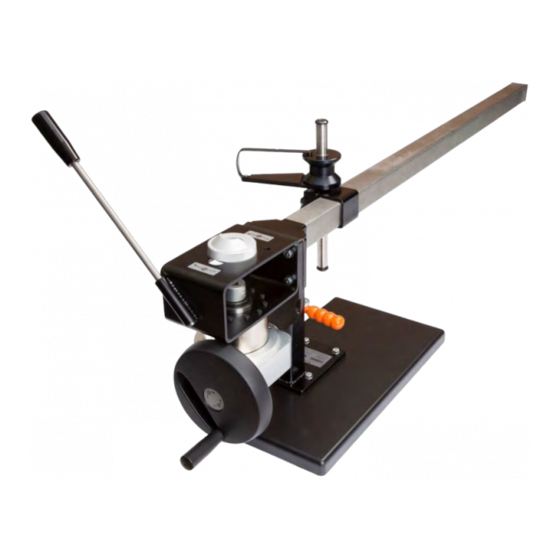

Torque wrench loader with 90 rotation

Advertisement

Quick Links

OPERATOR'S MANUAL
ISO 1500 TORQUE WRENCH LOADER
WITH 90° ROTATION
Part Number 34126 | Issue 6 | Original Instructions (English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISO 1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for norbar ISO 1500

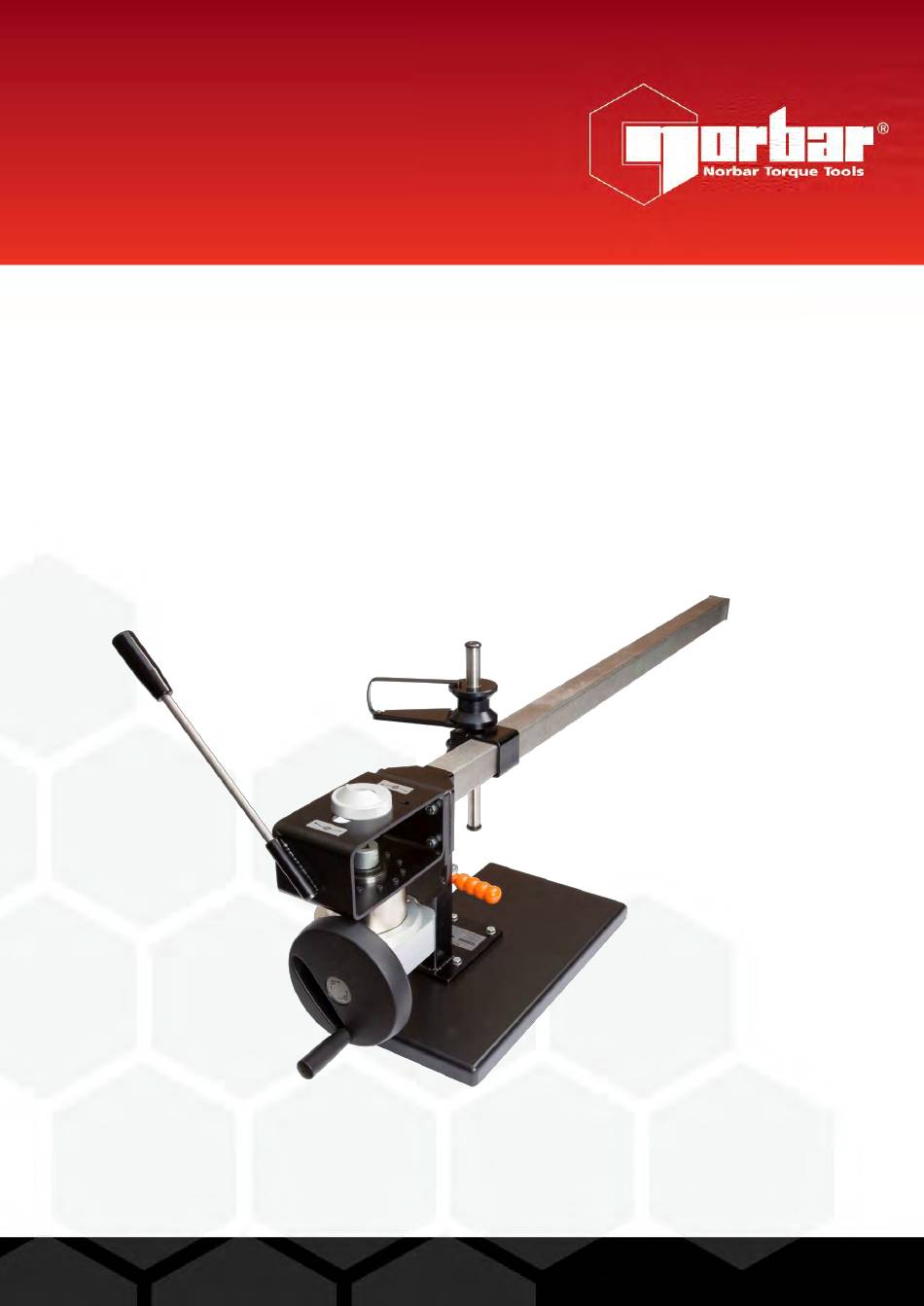

  • Page 1 OPERATOR’S MANUAL ISO 1500 TORQUE WRENCH LOADER WITH 90° ROTATION Part Number 34126 | Issue 6 | Original Instructions (English)
  • Page 2 CONTENTS Safety Introduction Parts Included Accessories Features and Functions Installation Items Required Location Rotating Lever Tool Reaction Post Horizontal and Vertical Operation Reaction Plate for Small Torque Wrenches Torque Measurement Operating Instructions Locating a Torque Wrench Maintenance Specifications...
  • Page 3 • The ISO 1500 is designed for testing torque tools, do not use for other purposes. INTRODUCTION The Norbar ISO 1500 Torque Wrench Loader is designed to test torque wrenches up to a maximum capacity of 1500 N∙m or 1100 lbf∙ft.
  • Page 4 FEATURES AND FUNCTIONS • Allows torque wrenches to be calibrated or tested in accordance with ISO 6789:2003, BS EN 26789:2003 and American military standard GGG-W-686. • Allows vertical & horizontal torque wrench testing. • Also available with 3000 N∙m capacity, see ISO 3000 N∙m (Part number 20505). •...
  • Page 5 If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Items Required Norbar torque transducer to suit capacity of test with suitable torque display instrument. Location Ensure location can cope with weight of loader.
  • Page 6 In the case of a ratchet wrench, with push through square drives, it is important to ensure the square is operating on the correct side of the ratchet. MAINTENANCE The ISO 1500 is engineered for a long maintenance free life. Under normal operation maintenance is not required. When cleaned do not use abrasive or solvent based cleaners.
  • Page 7 Tel + 61 (0)8 8292 9777 Tel + 86 21 6145 0368 Email enquiry@norbar.com.au Email sales@norbar.com.cn NORBAR TORQUE TOOLS INC NORBAR TORQUE TOOLS INDIA PVT. LTD 36400 Biltmore Place, Willoughby, Plot No A-168, Khairne Industrial Area, Ohio, 44094 Thane Belapur Road, Mahape, Navi Mumbai –...
