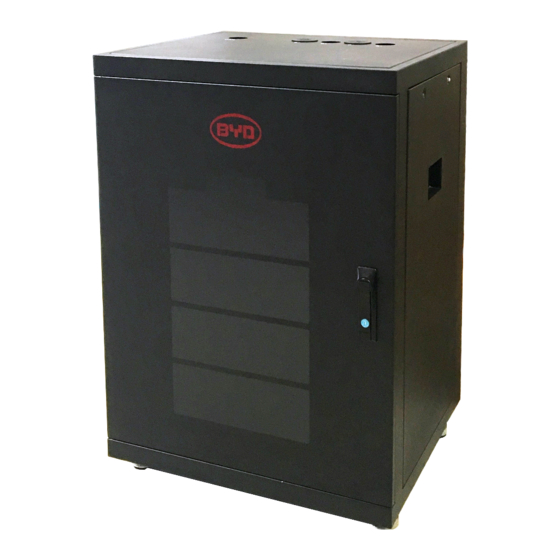

BYD Battery-Box Pro series Installation Guidance
Hide thumbs
Also See for Battery-Box Pro series:
- Quick reference manual (4 pages) ,
- User manual (15 pages) ,
- Service manuallines (10 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for BYD Battery-Box Pro series
Summary of Contents for BYD Battery-Box Pro series
- Page 1 BYD Battery-Box Pro Installation Guidance Battery-Box Pro2.5/5.0/7.5/10.0 Version 1.4...
-
Page 2: Table Of Contents
Battery-Box Pro 2.5-10.0 Installation Guidance Content 1 Foreword ......................................5 1.1 About this guide ......................................5 1.2 Target Group ........................................5 1.3 Additional Information ....................................5 1.4 Symbols Used ........................................5 2 Safety ........................................6 2.1 Warnings and Notification .................................... 6 2.2 Safety Guidelines ...................................... - Page 3 Battery-Box Pro 2.5-10.0 Installation Guidance 4.1 Installation notice ......................................12 4.2 Package information and system configuration list ..........................13 4.3 Configuration list ......................................14 4.4 Installation Tools ......................................15 4.5 Personal protective equipment ................................... 15 5 Installation....................................... 16 5.1 Unpacking ........................................16 5.2 Disassembling the pallet &...
- Page 4 Appendix 2 ......................................31 List of matched inverter vendors ..................................31 1. System activating procedures when BYD Battery-Box Pro connect to SMA Sunny Island..............31 2. System activating procedures when BYD Battery-Box Pro connects to GOODWE inverter..............33 3.
- Page 5 Battery-Box Pro 2.5-10.0 Installation Guidance 6. System activating procedures when BYD Battery-Box Pro connect to Selectronic................39 Appendix 3 ......................................41 Parameter setting ........................................ 41 1 SMA charger min capacity ....................................41 2 Solax charger min capacity ..................................... 43 3 GOODWE Charger Min Capacity: ......................................
-
Page 6: Foreword
1 Foreword Thank you for choosing BYD products. We are committed to providing you with quality and reliable after sales service To protect users and the product itself, please kindly read this manual carefully which provides detailed information for product features, structures, operating standards, maintenance and troubleshooting. -
Page 7: Safety
Battery-Box Pro 2.5-10.0 Installation Guidance NOTICE： NOTICE represents the situations which can cause damage to property, if ignored. INFORMATION： INFORMATION provides useful tips for optimum installation and operation of the product. 2 Safety 2.1 Warnings and Notification Installation environment requirements: Battery-Box Pro 2.5-10.0 is designed for household purposes. - Page 8 Battery-Box Pro 2.5-10.0 Installation Guidance Box Pro 2.5-10.0 must review applicable federal, state and local regulations as well as the industry standards regarding this product. Installation personnel cannot wear watches, etc., to avoid short circuit and accidental damage. Ensure reliable grounding. Do not reverse the front panel. CAUTION: Due to the heavy weight of Battery-Box Pro 2.5~10.0, please use strong packaging and safety protection equipment during transportation, to ensure safety and avoid accidental damage.
-
Page 9: Product Overview
Battery-Box Pro 2.5~10.0 as the energy storage parts can be used as off-grid & on-grid energy storage system. It is recommended not to use this device for other than the purpose described in this guidance. The substitute use of this product, random change, and use of components other than sold or recommended by BYD will nullify the product guarantee. - Page 10 Battery-Box Pro 2.5-10.0 Installation Guidance Terminal list Interface Mark Function Connect to battery in cabinet, each terminal can connect 1~2 battery Connect to battery in cabinet Connect to inverter Connect to inverter Connect to another Battery-Box or Combiner box ...
-
Page 11: Cable Outlet Of Cabinet
Battery-Box Pro 2.5-10.0 Installation Guidance 3.3 Cable outlet of cabinet Compare list Function Interface Mark CAN communication cable Positive cable from another Battery-Box Positive cable from inverter Negative cable from inverter Negative cable from another Battery-Box ... -
Page 12: B-Plus L2.5 Interface And Terminal Introduction
Battery-Box Pro 2.5-10.0 Installation Guidance 3.4 B-Plus L2.5 interface and terminal introduction P-: Negative terminal P+: Positive terminal GND: Grounded terminal 3.5 Display and communicate interface Table 1 Display and communicate interface... -
Page 13: Preparations
Battery-Box Pro 2.5-10.0 Installation Guidance Function Interface Mark SOC LED Indicates State of capacity of battery RUN LED Indicates the B-Plus L 2.5 is running status ERR ADDR Indicates error status Alarm Indicates alarm status RJ45 terminal RS485 Communication ports ... -
Page 14: Package Information And System Configuration List
Battery-Box Pro 2.5-10.0 Installation Guidance Notice: The BYD Battery-Box Pro must be installed indoors. 4.2 Package information and system configuration list The cabinet and battery are packaged separately with cartons, the components are supplied with the cabinet or battery package. Before installation, installers should read the system configuration list. -
Page 15: Configuration List
Battery-Box Pro 2.5-10.0 Installation Guidance GUIDE Nylon Cable ties Fixed Cable Keys Item Description quantity Purpose Picture 向上 易碎物品 怕雨 堆码层数极限 LITHIUM ION BATTERIES UN3480 Positive 4G/Y50/S/16 CN/XXXXXX PI:XXX Battery P+ connection cable(brown) Negative cable Battery P- connection （Blue） Connection of battery grounded terminal Communication Battery RS485 port connection cable... -
Page 16: Installation Tools
Battery-Box Pro 2.5-10.0 Installation Guidance Notice Privacy agreement 4.4 Installation Tools Cross screwdriver Flat tip screwdriver Sockets spanner Diagonal cutters Adjustable wrench Knife 4.5 Personal protective equipment... -
Page 17: Installation
Battery-Box Pro 2.5-10.0 Installation Guidance 5 Installation 5.1 Unpacking Tool: Knife... -
Page 18: Disassembling The Pallet & Anchor Bolt Installation
Battery-Box Pro 2.5-10.0 Installation Guidance 5.2 Disassembling the pallet & anchor bolt installation Tool: Adjustable spanner fixed torque Lay down the cabinet, put some protections on the ground to avoid scratches. Take away the pallet and four screws that installed on the root of the pallet. -
Page 19: Connection Power Cables
Battery-Box Pro 2.5-10.0 Installation Guidance Install the 4pcs anchor bolt into the four hole in bottom of cabinet. 5.3 Connection power cables Tool: Cross screwdriver... - Page 20 Battery-Box Pro 2.5-10.0 Installation Guidance...
-
Page 21: Battery Installation
Battery-Box Pro 2.5-10.0 Installation Guidance 5.4 Battery installation Tool: Cross screwdriver *1 Move the cabinet to the installation place, prepare to install battery. *2 Open the door, take away the screws of the battery store and front panel. Push the battery into battery store from the bottom, one cabinet can install maximum 4PCS batteries. -
Page 22: Connecting The Power Cables To B-Plus L 2.5
Battery-Box Pro 2.5-10.0 Installation Guidance 5.5 Connecting the power cables to B-Plus L 2.5... -
Page 23: Connect The Grounding & Communication Cable
Battery-Box Pro 2.5-10.0 Installation Guidance 5.6 Connect the grounding & communication cable... -
Page 24: Setting The Battery Address
Battery-Box Pro 2.5-10.0 Installation Guidance 5.7 Setting the battery address * Make sure of the last address of B-Plus L 2.5 connect to BMU. 5.7.1. “ADDR” switch introduction Function: For communication between battery and BMU. BMU will communicate with external equipment by using CAN communication. Each DIP switch definition: There are 6 bit switches, keep the switch on down side means”0”, turn up the switch to “ON”... -
Page 25: Single Machine Assembly Drawing
Battery-Box Pro 2.5-10.0 Installation Guidance No.1 battery address: 100000 No.2 battery address: 010000 For address setting, please refer to the configuration list. 5.8 Single machine assembly drawing * CAN connection to see appendix 1. *Don not forget to connect the ground cable. -
Page 26: Multiple Machine Assembly Drawing
Battery-Box Pro 2.5-10.0 Installation Guidance 5.9. Multiple machine assembly drawing. 5.10 Checking list... -
Page 27: Led Indications
Battery-Box Pro 2.5-10.0 Installation Guidance 5.11 LED indications... -
Page 28: Technical Term And Operating Environment
Battery-Box Pro 2.5-10.0 Installation Guidance 6 Technical Term and operating environment Technical Term and operating environment: Please read the Battery-Box Pro 2.5-10.0 user manual carefully. 7 System boot 7.1 Press “ON/OFF” to start the battery The battery's LED flashes, and after 4 seconds the SOC LED green light and the run green light, the battery is started normally. * After the system is properly connected, when the number of batteries used is greater than or equal to 2, no matter which battery is turned on first, other batteries will start up at the same time. -
Page 29: System Shutdown
Battery-Box Pro 2.5-10.0 Installation Guidance 8 System Shutdown 8.1 Isolate the power of loads and input. 8.2 Switch off the inverter according to inverter manual. 8.3 Press the on / off button for 4 or 5 seconds to switch off the battery. *When the number of batteries used is greater than or equal to 2, you need to shut down all batteries one by one. -
Page 30: Appendix1
Battery-Box Pro 2.5-10.0 Installation Guidance Appendix1 CAN cable connection RJ45 PIN define Battery-Box GOODWE SOLAX VICTRON SUNGROW SELECTRONIC CAN H CAN H CAN L CAN L When installers attempt “CAN” ports connections between Battery-Box Pro 2.5-10.0 and inverter, please refer to below drawing. - Page 31 Battery-Box Pro 2.5-10.0 Installation Guidance...
-
Page 32: List Of Matched Inverter Vendors
Solax Sungrow Selectronic 1. System activating procedures when BYD Battery-Box Pro connect to SMA Sunny Island. ⑴ Running the BYD Battery-Box Pro Activate all of the B-Plus L 2.5 Tips: Pressing “ON/OFF” button one second will start the B-Plus L 2.5, according to the number of inverters in the following table, activate the batteries as fast as... - Page 33 Battery-Box Pro 2.5-10.0 Installation Guidance Status(display interval 2S) Definition LED(BMU) Blinks 1 time Inverter not connected Blinks 2 time Battery not connected Blinks 3 time Battery disconnected Blinks 4 time Battery failure Remark: Slow blink: indicator light is on and off every 1s (0.5Hz). Fast blink: indicator light is on and off every 0.25s (2HZ) SOC status and indicate Item...
-
Page 34: System Activating Procedures When Byd Battery-Box Pro Connects To Goodwe Inverter
Battery-Box Pro 2.5-10.0 Installation Guidance 2. System activating procedures when BYD Battery-Box Pro connects to GOODWE inverter. ⑴ Download the APP on cell phone and open the home page; ⑵ Start BYD Battery-Box Pro; Press the “ON/OFF” button on front panel of B-Plus L 2.5;... -
Page 35: System Activating Procedures When Byd Battery-Box Pro Connects To Victron Inverter
The last one light is normally on Capacity is 24%-1% (including) ⑶Go to the home page of the APP, enter into the Battery Settings page, select “BYD Battery-Box” battery, then select “NEXT” until the last page, finally select “Start”. Remark: If the installed capacity is greater than or equal to 10.0KWh, please choose the product model as "BYD Battery-Box 10" in the App ⑷... - Page 36 Battery-Box Pro 2.5-10.0 Installation Guidance Item Status Green More than one is green. Slow blink is charging and fast blink is discharging. The ferry-go-round means no communication. ERROR Alarm Status(display interval 2S) Definition LED(BMU) Blinks 1 time Inverter not connected Blinks 2 time Battery not connected Blinks 3 time...
-
Page 37: System Activating Procedures When Byd Battery-Box Pro Connects To Solax Inverter
Battery-Box Pro 2.5-10.0 Installation Guidance 4. System activating procedures when BYD Battery-Box Pro connects to Solax inverter. ⑴ Start BYD Battery-Box Pro Press the “ON/OFF” button on front panel of B-Plus L 2.5; Tips: Press one second will start B-Plus;... - Page 38 Battery-Box Pro 2.5-10.0 Installation Guidance The last three lights are normally on Capacity is 74%-50% (including) The last two lights are normally on Capacity is 49%-25% (including) The last one light is normally on Capacity is 24%-1% (including) (2) Activate inverter; (3) Go to the home page of the APP, and enter into Charger Settings page, select “Battery Type Lithium”, then select “Min Capacity”...
-
Page 39: System Activating Procedures When Byd Battery-Box Pro Connect To Sungrow Sh5K
Battery-Box Pro 2.5-10.0 Installation Guidance 5. System activating procedures when BYD Battery-Box Pro connect to SUNGROW SH5K. ⑴ Running the BYD Battery-Box Pro Activate all of the B-Plus L 2.5 Tips: Pressing “ON/OFF” button one second will start the B-Plus L 2.5, according to the number of inverters in the following table, activate the batteries as fast as... -
Page 40: System Activating Procedures When Byd Battery-Box Pro Connect To Selectronic
Remark: If the battery capacity is greater than or equal to 200AH, according to the Battery-Box10.0 parameter settings ⑸ System is running. 6. System activating procedures when BYD Battery-Box Pro connect to Selectronic. ⑴ Running the BYD Battery-Box Pro Activate all of the B-Plus L 2.5 Tips: Pressing “ON/OFF”... - Page 41 Battery-Box Pro 2.5-10.0 Installation Guidance Alarm Status(display interval 2S) Definition LED(BMU) Blinks 1 time Inverter not connected Blinks 2 time Battery not connected Blinks 3 time Battery disconnected Blinks 4 time Battery failure Remark: Slow blink: indicator light is on and off every 1s (0.5Hz). Fast blink: indicator light is on and off every 0.25s (2HZ) SOC status and indicate Item...
-
Page 42: Parameter Setting
Battery-Box Pro 2.5-10.0 Installation Guidance Appendix 3 Parameter setting 1 SMA charger min capacity Charging the battery Usage through battery backup system without increased self-consumption Battery-Box Pro 2.5 Battery-Box Pro 5.0 Battery-Box Pro 7.5 Battery-Box Pro 10.0 Parameters Setup value Setup value Setup value Setup value... - Page 43 Battery-Box Pro 2.5-10.0 Installation Guidance 262.03BUResSOC 262.04PVResSOC 262.05MinSlfCsmpSOC Charging the battery Usage through battery backup system without increased self-consumption Battery-Box Pro 5.0 Battery-Box Pro 7.5 Battery-Box Pro 10.0 Parameters Setup value Setup value Setup value 003.07Batt Typ Li Lon_Ext-BMS Li Lon_Ext-BMS Li Lon_Ext-BMS 003.10Batt Cpynom 262.01ProtResSOC...
-
Page 44: Solax Charger Min Capacity
Battery-Box Pro 2.5-10.0 Installation Guidance 262.05MinSlfCsmpSOC Protection for the Battery Application Parameters Recommended Value 223.05 BatPro1Soc 223.06 BatPro2Soc Off Grid 223.07 BatPro3Soc Battery-Box Pro 2.5/5.0/7.5/10.0 Gen Autostart Control Parameters Recommended Value 235.03 GnSocTm1Str 235.04 GnSocTm1Stp 2 Solax charger min capacity Product Min capacity Battery-Box Pro 2.5... -
Page 45: Goodwe Charger Min Capacity
SUNGROW Charger Min Capacity Battery type selection and depth of discharge parameters are set via the SUNGROW inverter operator panel. Select the battery module: Li-ion BYD. Tot Cap (KWh): Write the actual capacity of the battery module here VICTRON Charger Min Capacity: ESS mode Battery type selection and depth of discharge parameters are set via the VICTRON inverter operator panel. - Page 46 Address: U201 15Chatham Road West Ryde NSW 2114 Australia Europe EFT-Systems GmbH Customer Service Mailbox: service@eft-systems.de Telephone: +49 9352 8523999 Website: www.eft-systems.de Storing Renewable Energy Customer Service Mailbox: info@srenergy.co.uk Telephone: +44 (0) 2037695998 Website: www.srenergy.co.uk Copyright © BYD Lithium Battery Company Limited. All rights reversed.
