BYD Battery-Box Pro User Manual
Battery-Box Pro 2.5~10.0
Version 4.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Battery-Box Pro 2.5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BYD Battery-Box Pro 2.5

  • Page 1 BYD Battery-Box Pro User Manual Battery-Box Pro 2.5~10.0 Version 4.0...
  • Page 2: Table Of Contents

    Contents 1 General Information ..........................3 1.1 Validity ....................................3 1.2 Application ..................................3 1.3 Intended use ................................... 3 1.4 Battery-Box and B-Plus L definition ........................3 1.5 Identifying the Product ............................... 4 2 Safety ................................. 4 3 Technical Data ............................5 4 Technical Terms ............................
  • Page 3 2.2 Minimum configuration with BP ........................15 2.3 Minimum configuration with EM ........................15 2.4 Minimum configuration with SBP ........................15 3 Minimum configuration with Victron inverter ..................... 16 3.1 Minimum configuration with Multiplus ......................16 3.2 Minimum configuration with Multigrid......................16 3.3 Minimum configuration with Quattro ......................
  • Page 4: General Information

    This user manual introduces the Battery-Box product information, using guidance, safety, common issues and actions. The Battery-Box Pro 2.5-10.0 is an energy storage unit that can be used in ON-grid system or Off-grid system for residential application. The product is suitable for indoor use only.
  • Page 5: Identifying The Product

    Battery-Box Pro 10.0: Battery nominal capacity is 10.24 kWh (Includes 4pcs of B-Plus L 2.5) 1.5 Identifying the Product The Type Label describes the product identification, which is attached on the product. The Type Label includes following information: Product Name: Product Type: Nominal Capacity: Nominal Voltage:...
  • Page 6: Technical Data

    Continuous operation on a damaged battery can result in dangerous situation that may cause severe injury due to electrical shock. 3 Technical Data Battery-Box Pro Battery-Box Pro Battery-Box Pro Battery-Box Pro Item 10.0 Battery Type Lithium Iron phosphate battery Battery module B-Plus L 2.5 Usable battery 2.56...
  • Page 7: Technical Terms

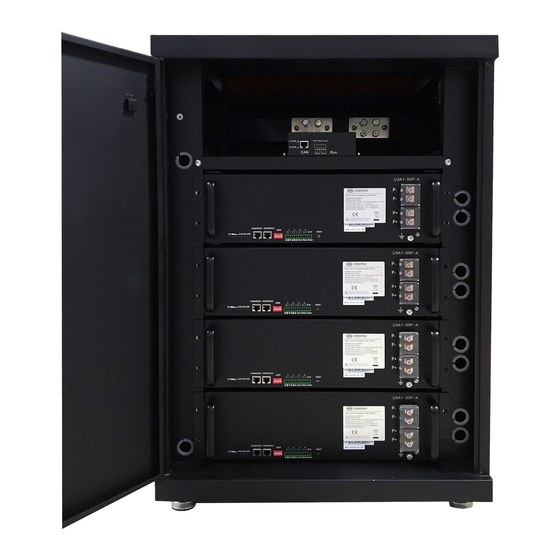

    5 Product Overview 5.1 Battery-Box System brief introduction The Battery-Box energy storage system, combined with high-performance BYD lithium battery, consists of cabinet, battery and BMU. Up to 4 battery modules can be installed in one cabinet for use, and the usable energy can be extended easily from 2.5kWh to 80kWh by parallel...
  • Page 8 External drawing Internal drawing Structure dimension drawing...
  • Page 9: Battery-Box Configuration Table

     Charge and discharge management 5.4 General introduction of B-Plus L 2.5 B-Plus L 2.5 is the commercial name of BYD’s U3A1-50P-A backup battery with 51.2V & 50Ah, which is designed for energy storage applications. The B-Plus L 2.5 is an integrated battery which consists of enclosure, BMS and cells.
  • Page 10: Operating Environment

    ① ②③④ ⑤ ⑥ ⑦ ⑧ ⑨ Display and communication interface Function Interface Mark  SOC LED Indicate current SOC of battery  RUN LED Indicate that the B-plus L is in running status  ERR LED ERR ADDR Indicate error status ...
  • Page 11: Maintenance

    ≤7 days 7 Compatible Inverter List To make sure that the system can be operated normally, please use BYD compatible inverters and select battery quantity correctly, according to the “Battery-Box configuration list with different inverter” in Appendix 1 in this user manual.
  • Page 12: Alarm Displayed On B-Plus L 2.5 And Solution

    One or some batteries Check RS485 cable and battery address Flash 3 times are disconnected If the connection and the address are correct, please contact the after service provider Check battery led status. If the red led is on and buzzer Flash 4 times Any battery failure alarms, please contact the after service provider to replace...
  • Page 13 Contact the after service provider Low temperature 9times protection Contact the after service provider PACK over voltage 10times protection Alarm indicated by flashing red led Fault phenomenon Times Possible causes Solution 1.Red led (Err) is always 2. Press the on/off 1time Replace the battery Voltage sensor failure...
  • Page 14: Common Issues Displayed On Inverter And Solution

    Please cut off the power supply and turn off the battery in emergency. 9 Warranty BYD provides warranty when the product is installed and used according to the description of user manual / installation manual / warranty letter. 1. Please contact our local service provider for technical support & after service.
  • Page 15: Appendix 1: Minimum Configuration With Different Brands Of Inverters

    Appendix 1: Minimum Configuration with Different Brands of Inverters 1 Minimum configuration with SMA Sunny Island inverter Inverter Firmware version: minimum required firmware version for SI is V1.73. Battery-Box firmware version: minimum required firmware version for BMU is V2.7. Shall bypass main circuit breaker when the system is off grid application. 1 Phase on Grid Inverter Type B-Plus L 2.5...
  • Page 16: Minimum Configuration With Bp

    Battery-Box firmware version: minimum required firmware version for BMU is V4-10. Shall bypass main circuit breaker when the system is off grid application. 1 Phase on Grid Inverter Type B-Plus L 2.5 Cabinet GW3648D-ES ≥1 ≥1 GW5048D-ES ≥1 ≥1 1 Phase off Grid Inverter Type B-Plus L 2.5 Cabinet...
  • Page 17: Minimum Configuration With Victron Inverter

    GW3600S-BP ≥1 ≥1 GW5000S-BP ≥1 ≥1 Back-up mode Inverter Type B-Plus L 2.5 Cabinet GW3600S-BP ≥2 ≥1 GW5000S-BP ≥2 ≥1 Remark: Maximum quantity of B-Plus L is 32, Cabinet quantity is 8. 3 Minimum configuration with Victron inverter 3.1 Minimum configuration with Multiplus Inverter Firmware version: minimum required firmware version for CCGX is V2.01, which applies to ESS mode.
  • Page 18: Minimum Configuration With Quattro

    3 Phase on Grid Inverter Type B-Plus L 2.5 Cabinet 48/3000/35 ≥3 ≥1 1 Phase off Grid Inverter Type B-Plus L 2.5 Cabinet 48/3000/35 ≥2 ≥1 3 Phase off Grid Inverter Type B-Plus L 2.5 Cabinet 48/3000/35 ≥6 ≥2 Remark: Maximum quantity of B-Plus L is 32, Cabinet quantity is 8. 3.3 Minimum configuration with Quattro Inverter Firmware version: minimum required firmware version for CCGX is V2.01, which applies to ESS mode.
  • Page 19: Minimum Configuration With Ccgx Of Easysolar

    3.4 Minimum configuration with CCGX of Easysolar Inverter Firmware version: minimum required firmware version for CCGX is V2.01, which applies to ESS mode. Battery-Box firmware version: minimum required firmware version for BMU is V4-13, which applies to ESS mode. 1 Phase on Grid Inverter Type B-Plus L 2.5 Cabinet...
  • Page 20: Minimum Configuration With Solis Inverter

    Identification label on Battery-Box cabinet package: V2.2 1 Phase on Grid Inverter Type B-Plus 2.5 Cabinet SPMC481-AU ≥2 ≥1 SPMC482-AU ≥2 ≥1 1 Phase off Grid Inverter Type B-Plus 2.5 Cabinet SPMC481-AU ≥5 ≥2 SPMC482-AU ≥6 ≥2 Remark: Maximum quantity of B-Plus is 32, Cabinet quantity is 8. 6 Minimum configuration with Solis inverter Inverter Firmware version: minimum required firmware version is 11000F.
  • Page 21: Appendix 2: Common Failures Displayed On Inverter And Solution

    Appendix 2: Common Failures Displayed on Inverter and Solution 1 Alarm code displayed on the SRC of SMA sunny island and solution SMA SRC Possible causes Solution F221 External Alarm-Invalid Bat Type Reset battery type to "Li" on SRC. F920(XA01General) 1.AnyB-Plus L 2.5 has failed to 1.Check if the RS485 communication cable communicate with BMU;...
  • Page 22: Alarm Displayed On The App Of Goodwe And Solution

    F952 External Alarm –Ext 1.Check whether the CAN communication Timeout cable has been connected correctly and tightly; 2.Change BMU inside the cabinet; 2 Alarm displayed on the APP of GOODWE and solution APP of GOODWE Possible causes Solution 1.Check whether the CAN communication cable BMS status: Battery Inverter and BMU has been connected correctly and tightly;...
  • Page 23: Contact Information

    +61 2 8005 6688 www.alpspower.com.au Europe EFT-Systems GmbH Buchenstr.37 97816 Lohr a. Main Customer Service Mailbox: service@eft-systems.de +49 9352 8523999(DE) +34 91 0602267 (ES) +39 02 87368364 (IT) +44 2037695998 (UK) www.eft-systems.de Copyright © BYD Company Limited. All rights reserved.
