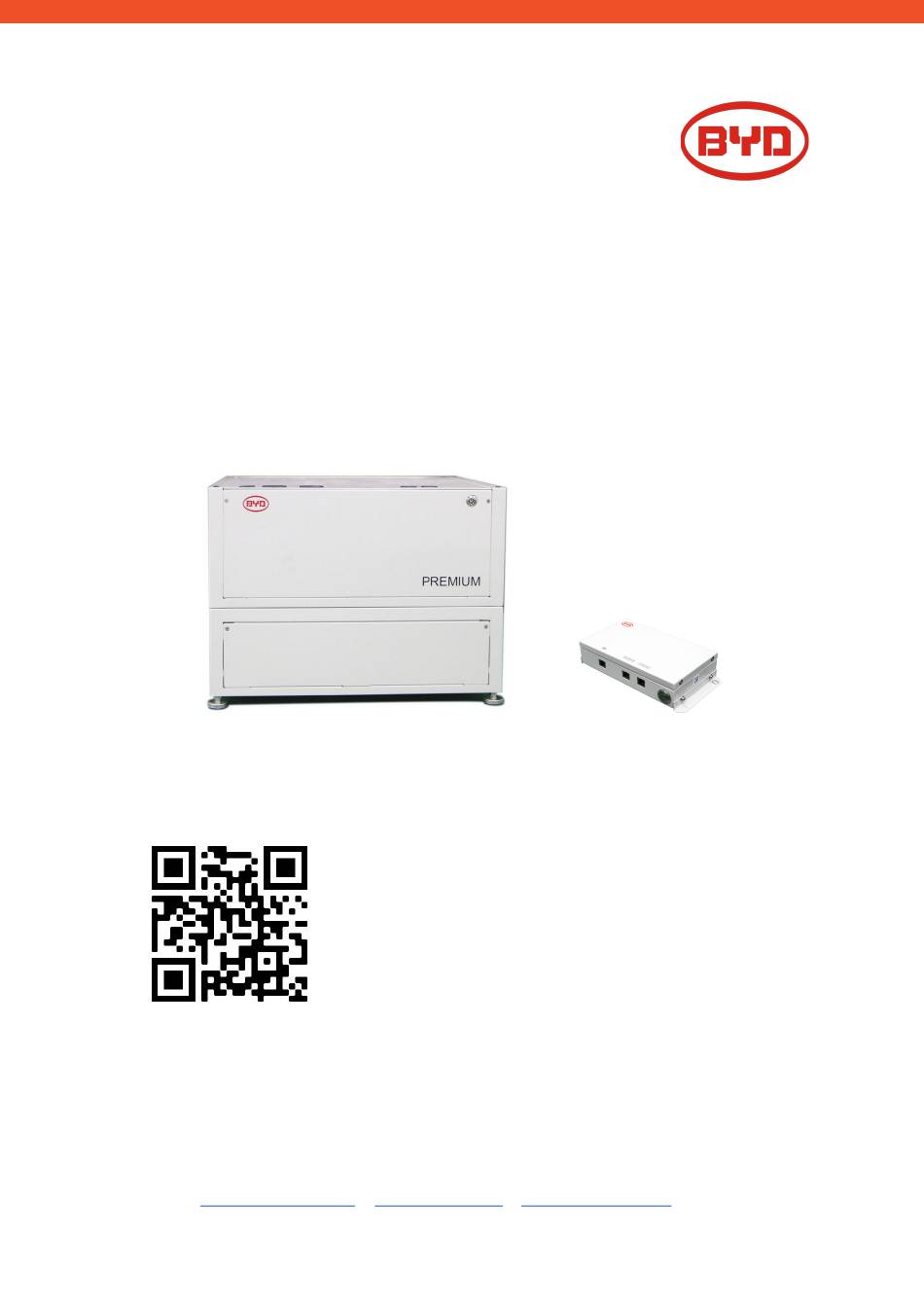

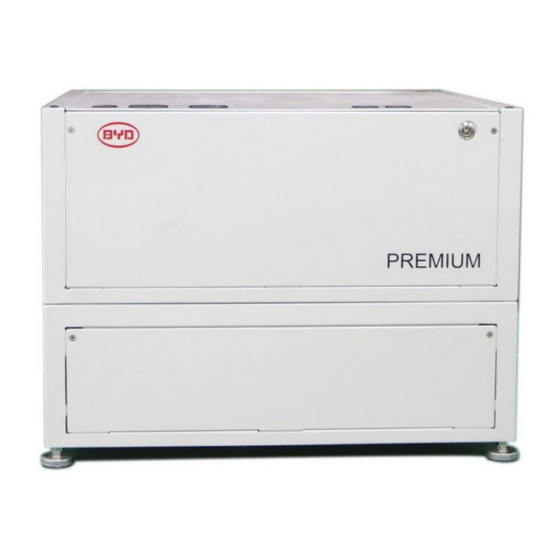

BYD Battery-Box Premium LVL
Service Guideline and Checklist
Version 1.1
Valid for Premium LVL 15.4
LVL 15.4 (max. 64 per system)
Important: The installation and all other kinds of works or measurements in combination with the Battery-Box
Premium are only allowed by professional and qualified electricians.
This checklist is a shortened assistance for the Battery-Box and does not replace the original manual, which can
be found on
w ww.bydbatterybox.com
modifications; no responsibility is accepted for the accuracy of this information. Attention: Improper handling
can cause danger and damage.
Make sure to always use the latest version of this service document,
available at: www.bydbatterybox.com
/
w ww.eft-systems.de
BMU (1 x per system)
/
w ww.alpspower.com.au
. Subject to technical
