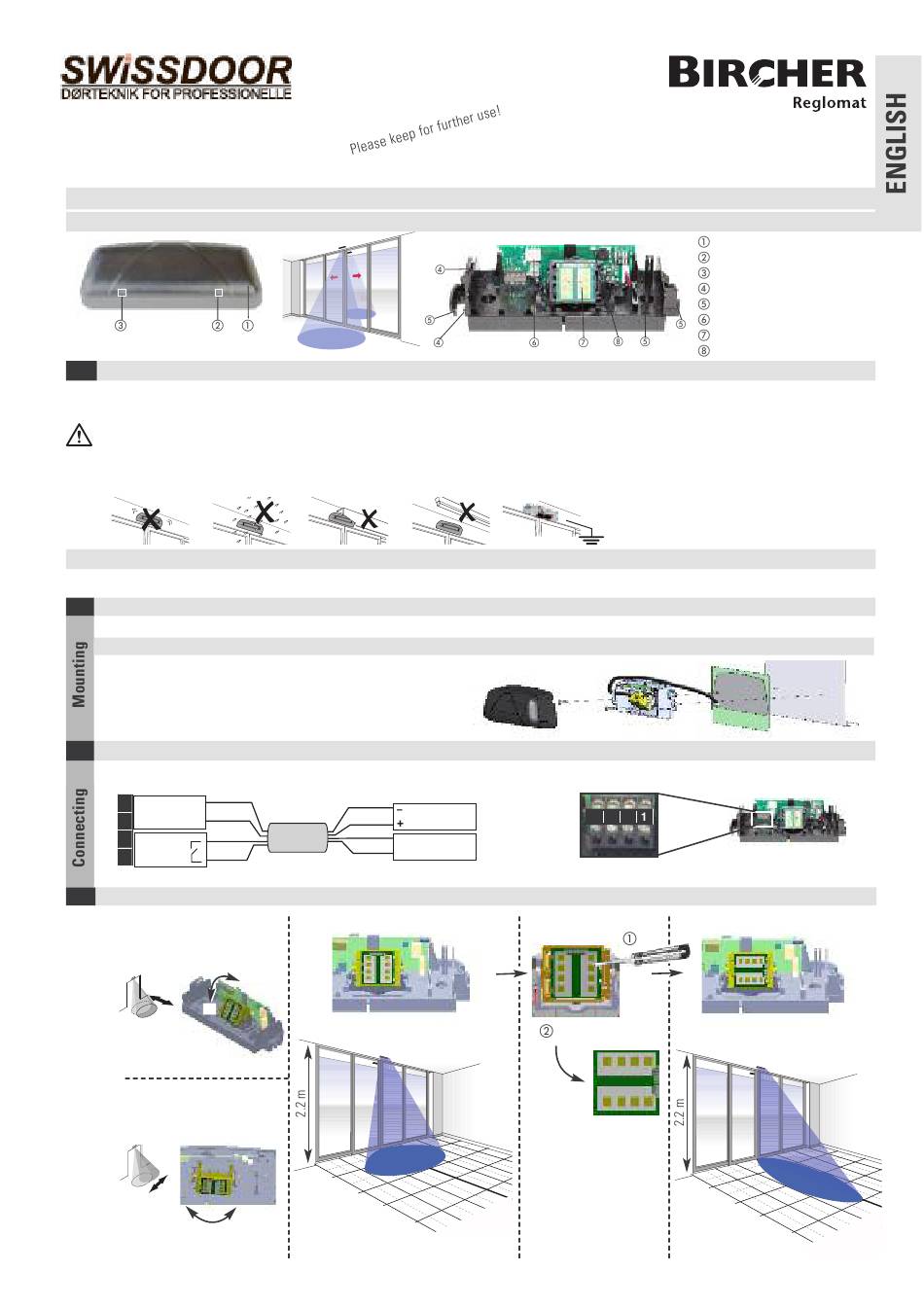

Bircher Reglomat Swissdoor PrimeMotion B Translation Of The Original Instructions

PrimeMotion
Translation of the original instructions
General
PrimeMotion B
Safety instructions
1
Observe the national and international regulations on door safety.
Only trained, qualified personnel may mount and start up the detector.
The unit may only be opened and repaired by Bircher Reglomat.
The unit may only be operated from a safety extra-low voltage (SELV) system with safe electrical separation.
Always consider the safety functions of your application as a whole, never just in relation to one individual section of the system.
The installer is responsible for carrying out a risk assessment and installing the detector and the door system correctly.
Avoid touching any electronic components.
The door drive and transom profile must be grounded correctly.
Start-up
Recommended start-up sequence: I. Mounting
Montage
2
1. Remove cover hood
I
Mounting of the detector
1. Position drill template
2. Drill the holes, remove drill template
3. Lay cable and mount detector
Electrical connections
3
II
PrimeMotion B
1 white
1
Power Supply
2 brown
2
3 green
3
Radar
4 yellow
4
output*
* See also DIP-switch-settings (Chap. 5)
Mechanical fine tuning
4
Manual inclination settings
0° ... +45° in 5° steps
– –
+ +
–
Manual inclination settings
– 20° ... +20° in 5° steps
+ +
– –
–
B
Radar field
Radarfeld
II. Connection
2. Lay and connect cable
Controller
white
11.5 - 36 VDC
3 m
brown
12 - 28 VAC
green
Cable
Microwave
yellow
Wide radar field
+
Inclination angle: 35°
0m
1m
2m
3m
+
4m
min. = 0.5 x 0.25, max. = 4 x 2 m (WxD)

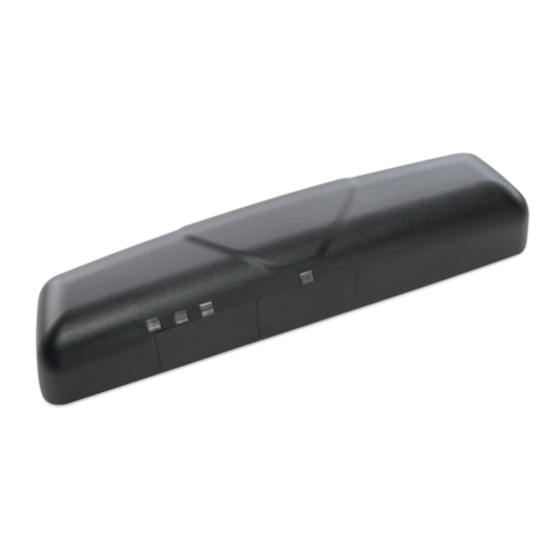

Microwave motion detector for opening
3. Mount detector
4 3 2
turn 90°
90°
0m
1m
2m
automatically controlled doors
Hood
Light window detector indication
no function
Cable bushing
Mounting holes
Detector electronic
Microwave module
LED microw.: green
Narrow radar field
Inclination angle: 35°
0m
1m
2m
3m
2m
4m
min. = 0.16 x 0.8, max. = 2 x 4 m (WxD)
289118I
12/16
0m
1m
1
