CONCRETE PULVERIZERS
BOLT TORQUING GUIDELINES
Proper bolt installation is critical to ensure the safe and effi cient operation of the attachment and jaw set.
Carefully follow the steps below to properly install bolts.
1. Always replace bolts and nuts with the same size and class of fastener. Replacement fasteners can be
ordered from the LaBounty Parts Department to ensure the correct part is used. Unless otherwise speci-
fi ed, use class 10.9 metric hex head capscrews, class 10.9 metric fl at head capscrews, and class 12.9 metric
socket head capscrews.
2. Make sure bolts, nuts and bolt holes are free of dirt, oil, grease and other contaminants.
3. If necessary, use the Capscrew Size Guide, below, to determine the size of the bolt being installed.
4. Use the Dry Bolt Torque Chart, below, to fi nd the proper torque. When possible, torque the nut rather than
the bolt head.

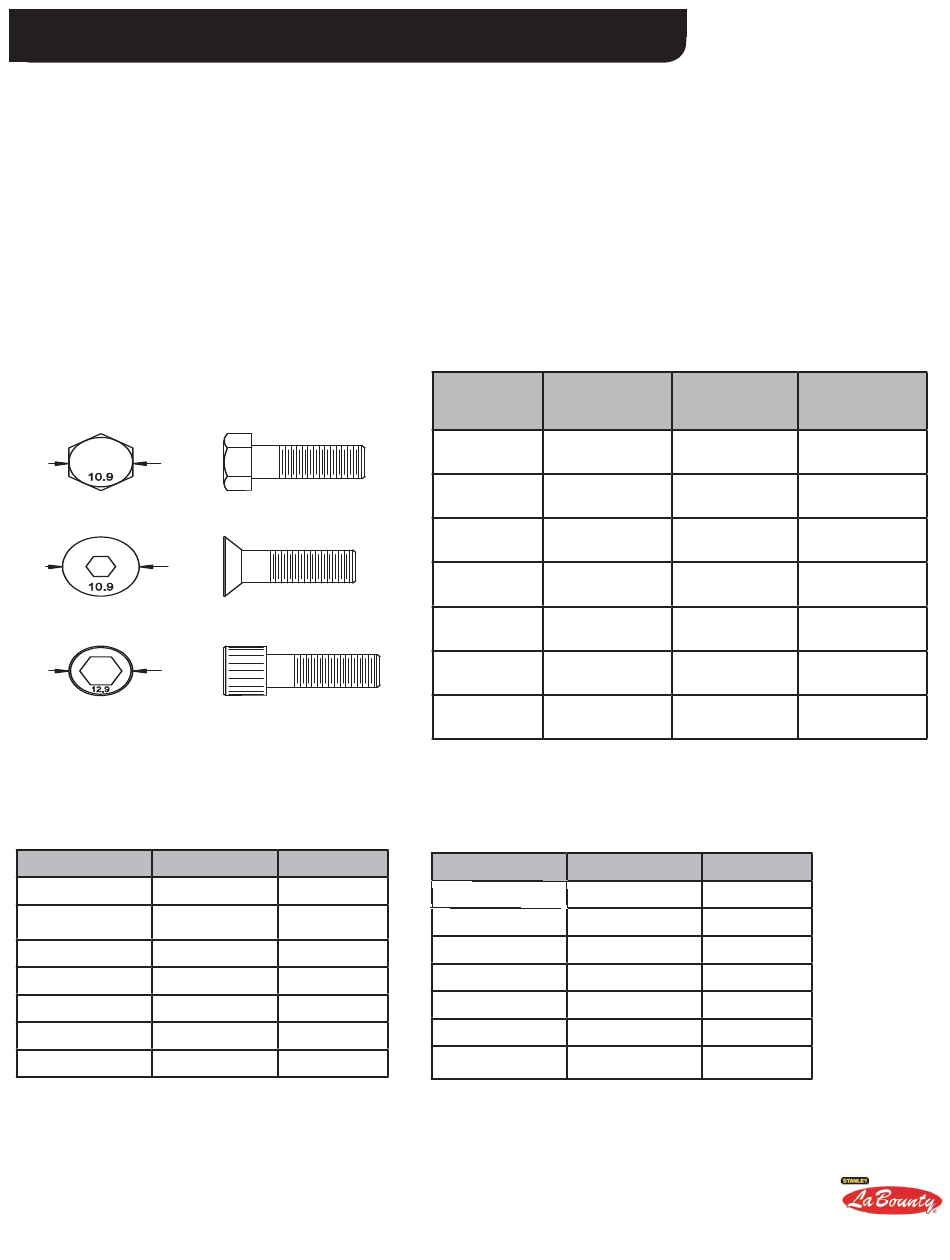

METRIC CAPSCREW SIZE GUIDE

A
B
C

DRY BOLT TORQUE CHARTS

METRIC CLASS 12.9
SIZE FT -LBS
M10 x 1.5 53
M12 x 1.75 92
M14 x 2 146
M16 x 2 224
M20 x 2.5 435
M24 x 3 752
M30 x 3.5 1511
Page 14 Section 5 Maintenance
HEX HEAD
FLAT HEAD
SOCKET HEAD
NM
72
125
198
305
590
1020
2050
CAP- A
SCREW HEX HEAD
SIZE
M10 x 1.50 0.63" (16mm) 0.79"
M12 x 1.75 0.71" (18mm) 0.94"
M14 x 2.00 0.83"
(21mm)
M16 x 2.00 0.94"
(23mm)
M20 x 2.50 1.18"
(30mm)
M24 x 3.00 1.42 (36mm) N/A
M30 x 3.50 1.81 (46mm) N/A
METRIC CLASS 10.9
SIZE FT-LBS
M10 x 1.5 64
M12 x 1.75 110
M14 x 1.75 177
M16 x 2 269
M20 x 2.5 523
M24 x 3 899
M30 x 3.5 1806
B C
FLAT HEAD SOCKET
HEAD
0.63"
(20mm) (16mm)
0.71"
(24mm) (18mm)
1.06" 0.83 (21mm)
(27mm)
1.18" 0.94"
(30mm) (24mm)
1.42" 1.18"
(36mm) (30mm)
1.42"
(36mm)
1.77"
(45mm)
NM
87
150
240
365
710
1220
2450
