CONCRETE PULVERIZER OPERATING TIPS
continued
3. The mounting pad of the LaBounty Concrete Pulverizer has three pin positions. By using the different
positions, the angle of the lower (stationary) jaw can be adjusted (see fi gure 4-5). For each job, the lower jaw
can be positioned to make the CP more productive or easier to use. Some experimentation may be necessary
to learn the advantages of each position. Using the front position provides the least amount of total opening
while the rear position provides the most. The center position is the best for general use.

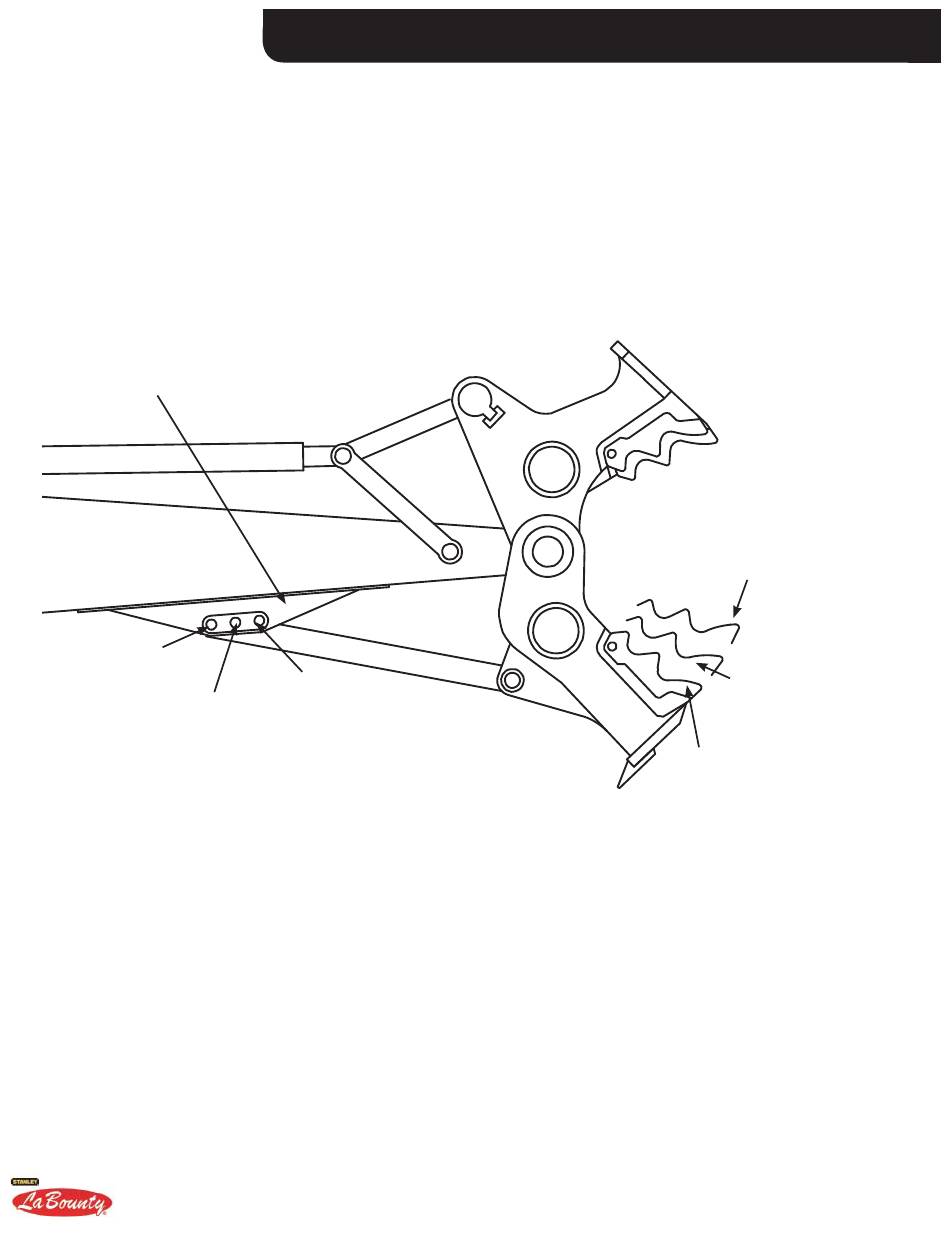

MOUNTING PAD
FRONT POSITION
REAR
CENTER POSITION
FRONT
CENTER
REAR POSITION
FIGURE 4-5
