Labounty CP 80 Safety, Operation & Maintenance Manual page 18

CONCRETE PULVERIZERS
CONCRETE PULVERIZER MOUNTING INSTRUCTIONS

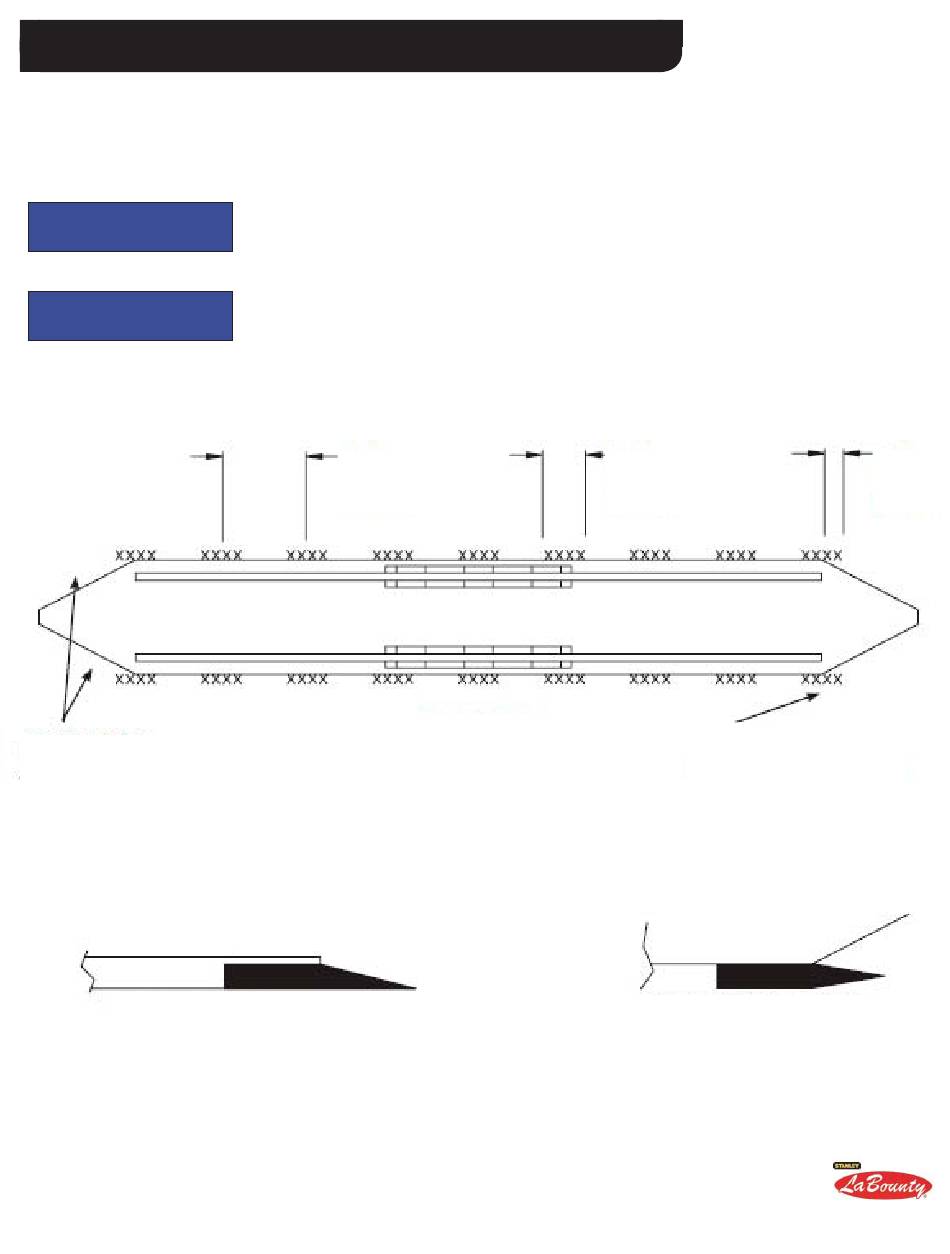

10. Weld the pad in position using E7018 low hydrogen welding rod. Make 1/2" (12.7 mm) fi llet welds, 3" (78
mm) long, 6" ((150 mm) on center (see fi gure 3-4). Run out welds 1-1/2" (40 mm) on ends and grind to taper in
both the side view as shown in fi gure 3-5 and in the top view fi gure 306.
NOTICE
Under no circumstances should the mounting pad be welded around the ends (see fi gure 3-4).
NOTICE
If the pulverizer is equipped with a custom mounting pad, refer to the Parts Catalog for special mounting
instructions.
DO NOT WELD
AROUND ENDS
SIDE VIEW WELD DETAILS
FIGURE 3-5
Page 4 Section 3 Installation
6.00
(150 MM)
FIGURE 3-4
continued
3.00
(75 MM)
RUN OUT WELDS, GRIND
WELD TO TAPER SEE
WELD DETAILS
TOP VIEW WELD DETAILS
FIGURE 3-6
1.50
(40 MM)
