CONCRETE PULIVERIZER LUBRICATION
Grease all points every 4 hours of concrete pulverizer operation. Use Amoco Rykon premium grease No.

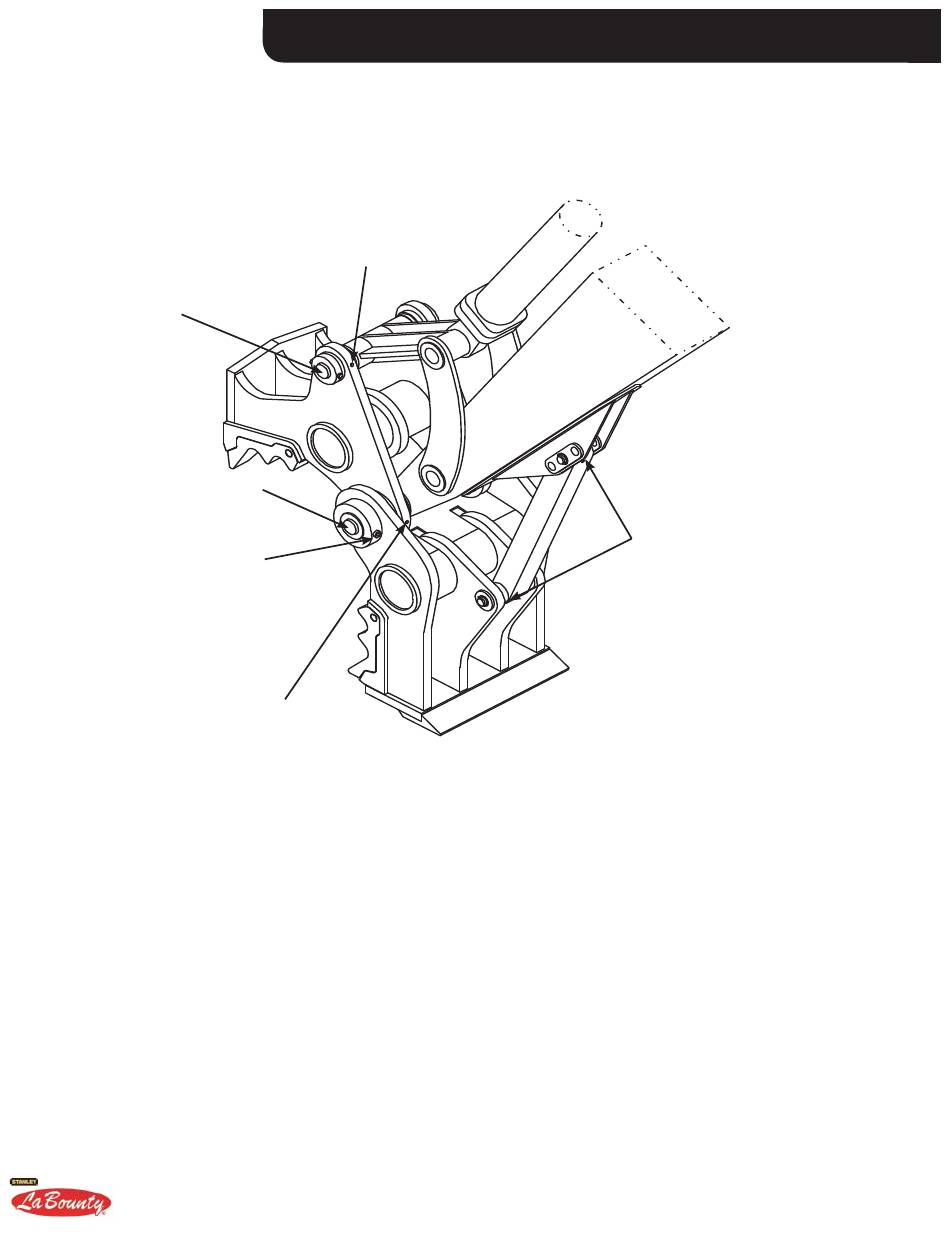

2EP or equivalent. Grease fi tting locations are indicated on the illustration (see fi gure 5-1, below) and by
yellow GREASE decals on the attachment. Fill with grease until excess appears.
6
3
(BOTH SIDES)
2
(BOTH SIDES)
LOCATION ON ATTACHMENT
1. Link pin connection - movable jaw
2. Main pin connection - movable jaw
3. Main pivot - stationary jaw
4. Position arm ends
5. Main pin (in end of pin)
6. Link pin (in end of pin)
1
(BOTH SIDES)
5
CONCRETE PULVERIZERS
4
FIGURE 5-1
NUMBER OF SHOTS
2
2
2
2
(if needed)
(if needed)
