6
OWNER MAINTENANCE

HEADLIGHT AIMING ADJUSTMENT

24
G290A02GK-EAT

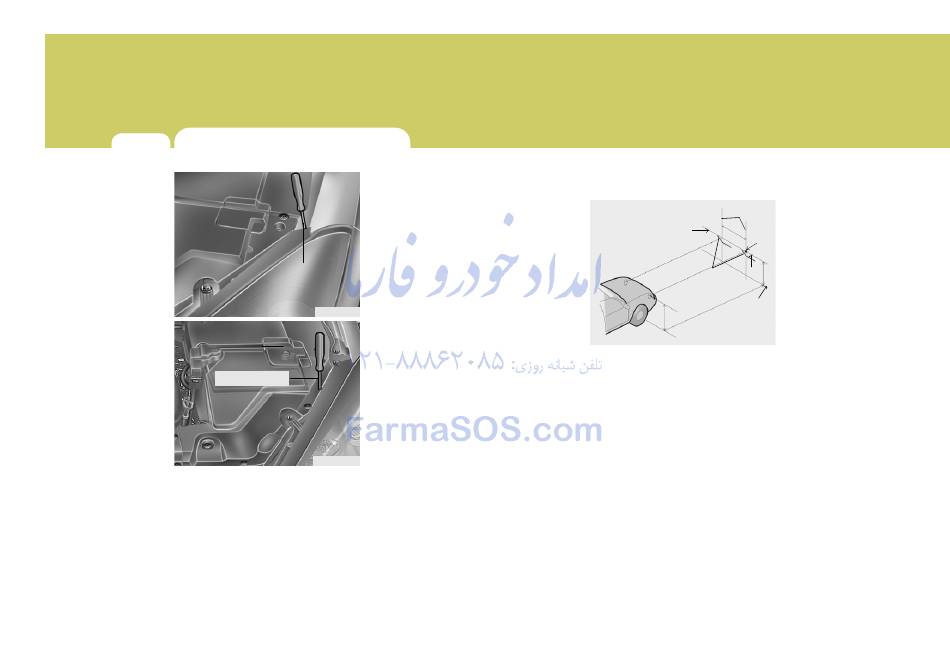

Horizontal
aiming
OGK076068N
Vertical aiming
OGK076067N
Before performing aiming adjustment,
make sure of the following.
1. Keep all tyres inflated to the correct
pressure.
2. Place the vehicle on level ground
and press the front bumper & rear
bumper down several times. Place
vehicle at a distance of 118.1 in.
(3m) from the test wall.
3. See that the vehicle is unloaded
(except for full levels of coolant,
engine oil and fuel, and spare tyre,
jack, and tools).
4. Clean the head lights lens and turn
on the headlight.
5. Open the bonnet.
6. Draw the vertical line (through the
centre of each headlight beam pat-
tern) and the horizontal line (through
the centre of each headlight beam
pattern) on the aiming screen.
And then, draw a parallel line at
1.18 in. (30 mm) under the hori-
zontal line.
7. Adjust each cut-off line of the low
beam to the parallel line with a
phillips screwdriver - VERTICAL
AIMING.
8. Adjust each cut-off line of the low
beam to the each vertical line with
a phillips screwdriver - HORIZON-
TAL AIMING.
G290B01GK-EAT
Adjustment After Headlight As-
sembly Replacement
Vertical line
Horizontal line
W
"P"
1.18 in.
Cut-off line
H
L Ground
line
H
G290B01JM-D
If the vehicle has had front body repair
and the headlight assembly has been
replaced, the headlight aiming should
be checked using an aiming screen as
shown in the illustration. Turn on the
headlight switch.
1. Adjust headlights so that main axis
of light is parallel to centre line of
the body and is aligned with point
"P" shown in the illustration.
2. Dotted lines in the illustration show
centre of headlights.
