Page 1: Instructions For Use

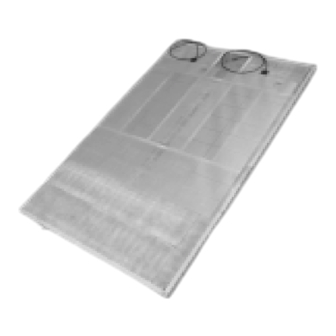

Assembly instructions and instructions for use Infrared Heating Foils MADE IN GERMANY Druck Nr. 29343125en/ 50.06... - Page 2 It is most practical to attach the plug Important notes: connector to the ceiling of the booth. l Never cut open heating foils open or in two. Operate only in the fixed dimensions The heating foils pose a fire hazard when available.
- Page 3 Design and installation of IR foils (heating mats): Layout Polyester foil / Polyester foil with aluminum Provide for opening for heating element, heavy-metal free, Outer wall silicone housing excessive temperature thermostat at upper excessive temperature end of foil in silicone housing thermostat Switch-off point = 120 °C Heating area...
- Page 4 Start-up Caution! Never drive fastening elements (staples, pins, nails or Start up with the associated control unit. screws) through the aluminum heating filaments Note that this heating system has a certain "time delay". It is first necessary for the foils If the heating filament is interrupted, the to heat up the channeled boards in front, heating foil no longer heats up!
-
Page 5: Technical Data
Guarantee The guarantee is taken over according to the legal Voltage: 230 V 50Hz regulations at present. Type 1 Art.No.: 94 3742 Output: 650 W Manufacturer’s warrenty Dimensions foil: 1700 x 800 mm The period of warrenty starts from the date of...
