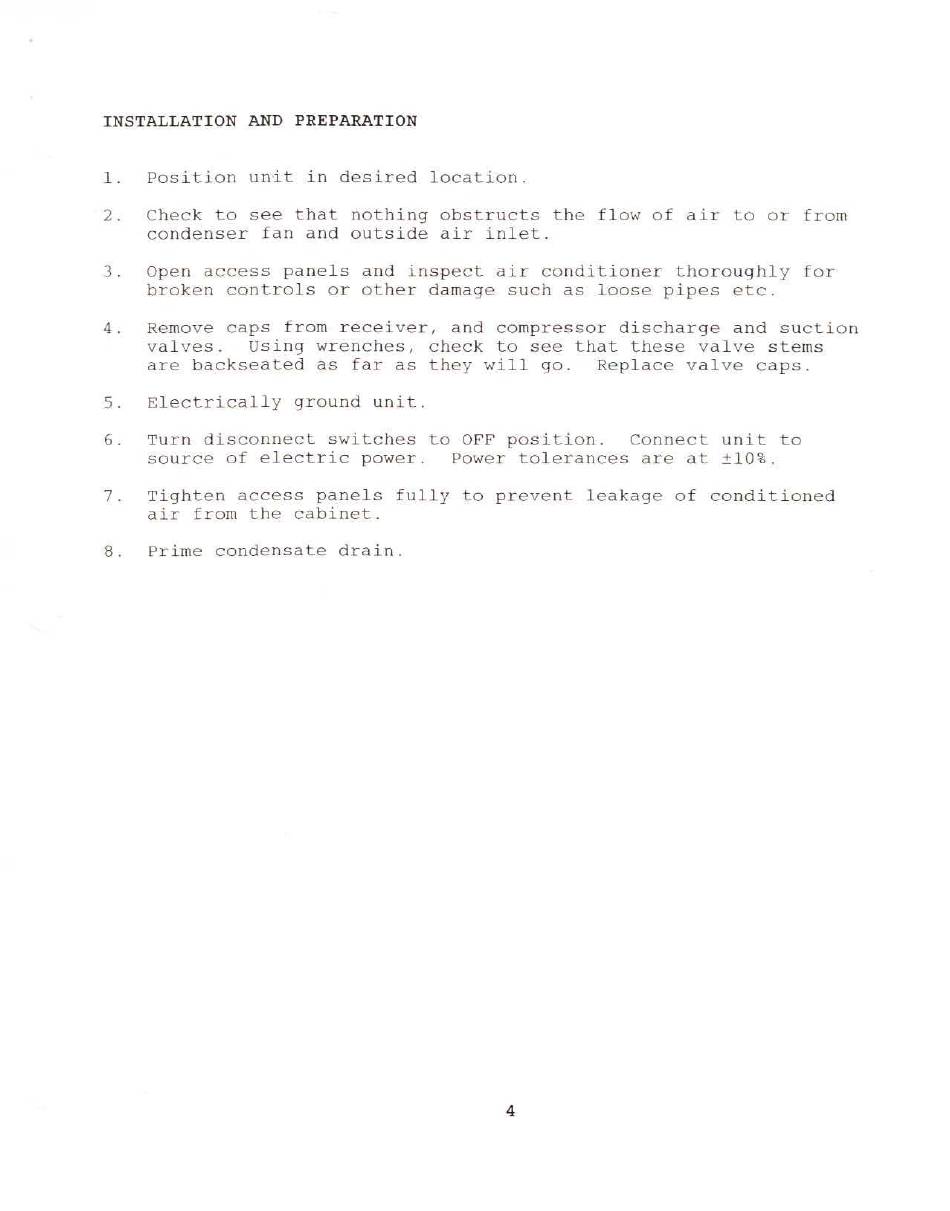

INSTALLATI ON AND PREPARATION
1. position unit in desired location.
2. Check to see that nothing obstructs the fl ow of air to
or
from
condenser fan and outside air inlet.
3.
Open access panels and inspect air conditioner thoroughly for
broken controls or ot her damage such as loose pipes etc.
4.
Remove caps from recei ver, and compressor discharge and suction
valves. using wrenches, check to see that these v al ve stems
are backseated as far as they will go. Replace valve caps.
5.
Electrically ground unit.
6.
Turn disconnect switches to OFF position . Connect
source of electric power . Power tolerances are at
unit to
±lO%.
7. Tighten access panels fully to pcevent leakage of conditioned
air from the cabinet.
8. Prime condensate drain.
