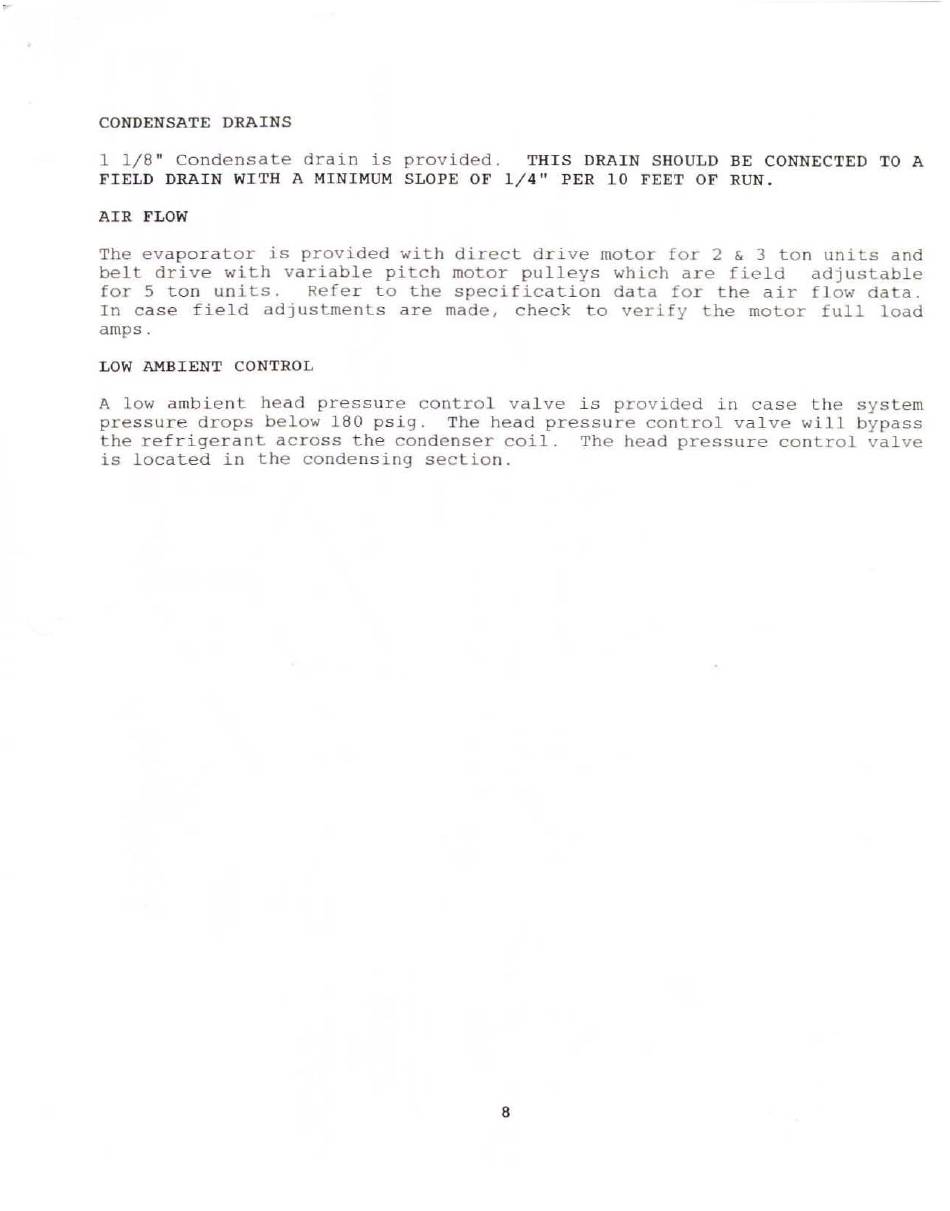

CONDENSATE
DRAINS
1
l/B~
Condensate
dra
i
n is provided.
THIS DRAIN
SHOULD
BE
CONNECTED
TO
A
FIELD DRAIN WITH
A MINIMUM SLOPE
OF
1/
4" PER 10 FEET OF RUN.
AIR
FLOW
The
evaporator is provided with
direct
drive
motor
for 2
E.
3 ton units and
belt
drive with variable
pitch
motor
pulleys
which are field
adjustable
for 5
ton
units.
Refer
to
the specification data for the air flow data.
In
case
field
adjustments
are made,
check to verify the motor full load
amps.
LOW AMBIENT
CO
NTROL
A
low ambient head pressure
control valve is
provided in
case the system
pressure drops
below
180 psig.
The head pressure
control valve will bypass
the refrigerant across the condenser coil.
The head pressure control valve
is
located
in the condensing section.
